Who's built a homemade electric scalder?

Discussion in 'Meat Birds ETC' started by bowhunter862, May 10, 2013.

  1. MontanaMeatBird

    MontanaMeatBird Out Of The Brooder

    18
    0
    21
    May 29, 2014
    Montana (SW)
    Here's a couple pics.

    [​IMG]

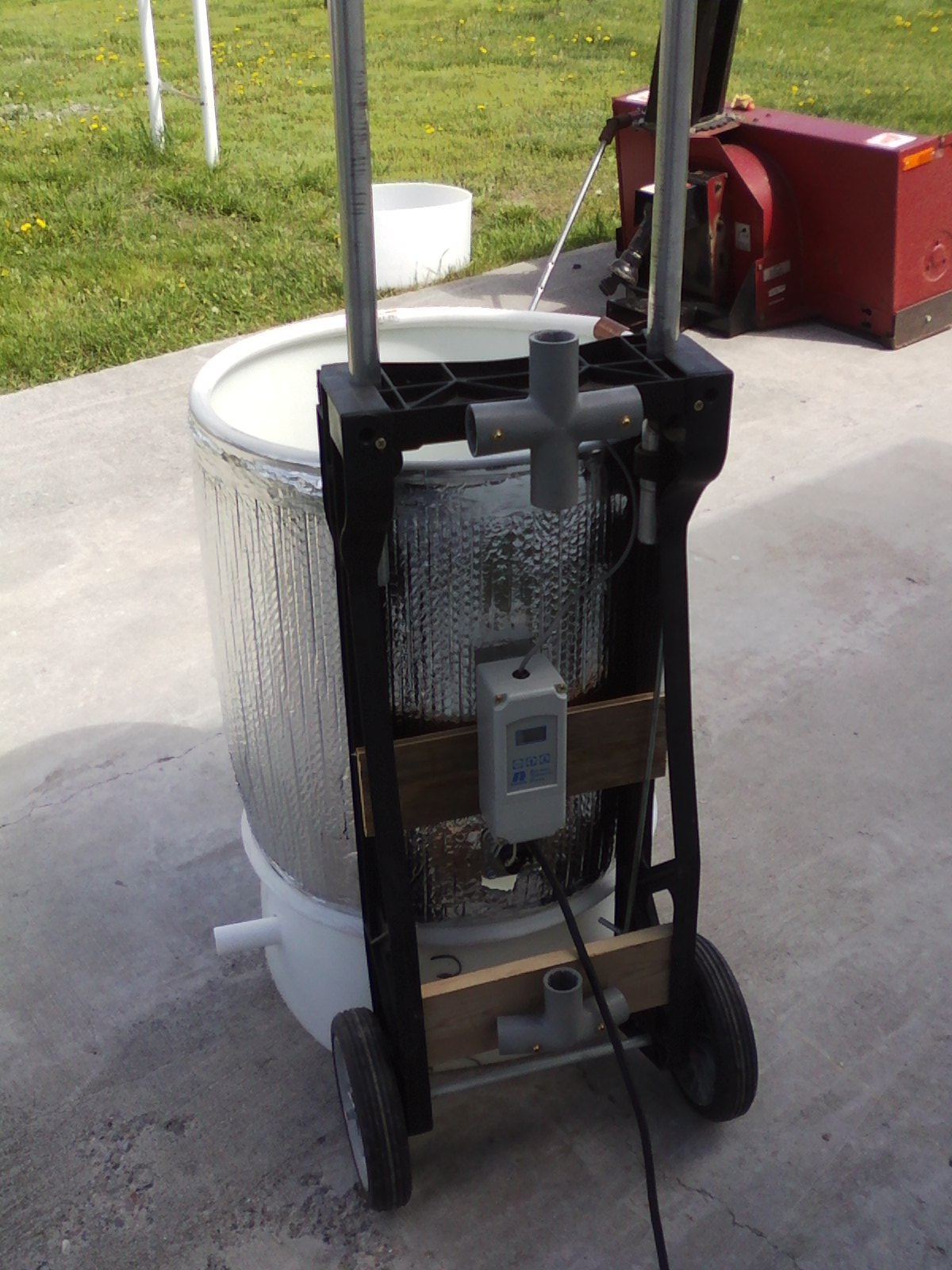

    You can see the RANCO ETC-111000 (hvac parts warehouse) on the back. It regulates the temps within 1 degree. The extra gray plastic gizmos are my first attempt at making a dunking mechanism. Still needs more work. Also, note the white plastic drain pipe exiting the side of the base.

    [​IMG]

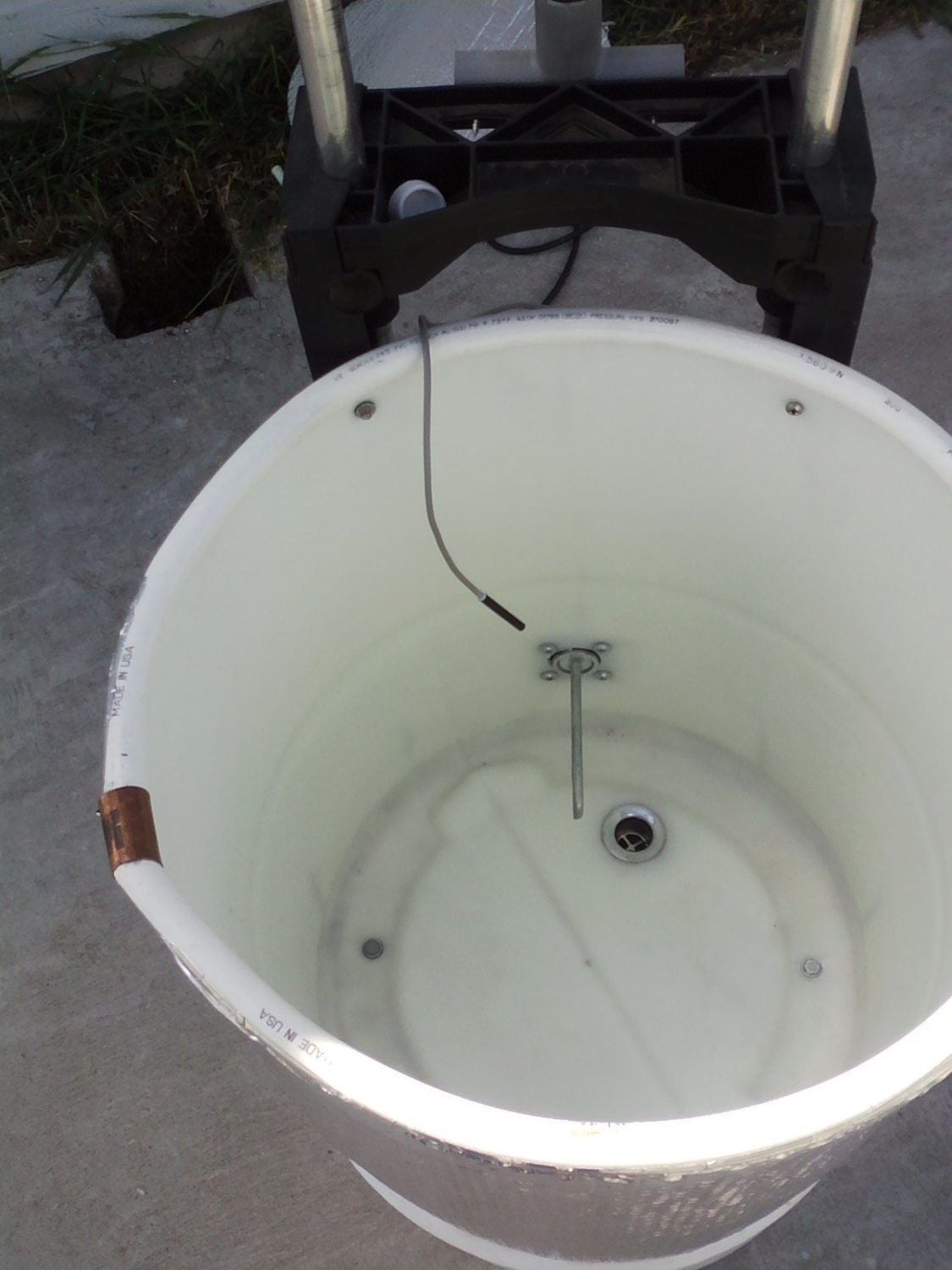

    This pictures shows a top view looking into the scaler. You can see the electric heating element bolted to the side of the scalder along with (2) bolts holding the two sections of the barrel together. I also have the temperature probe "hanging" over the top edge of the barrel. This will be permanently mounted to the side of the barrel with a small piece of mastic tape (RV roofing tape). You can also see the sink drain installed in the bottom. The white ring (and copper connector) at the top of the barrel is my first attempt to solidify the top cut edge of the barrel. It is a piece of 1/2" PVC pipe bent into a circle and then slit on the table saw (be VERY careful doing this) and fitted over the top edge. It works fine, but needs some cosmetic refinements!
    [​IMG]

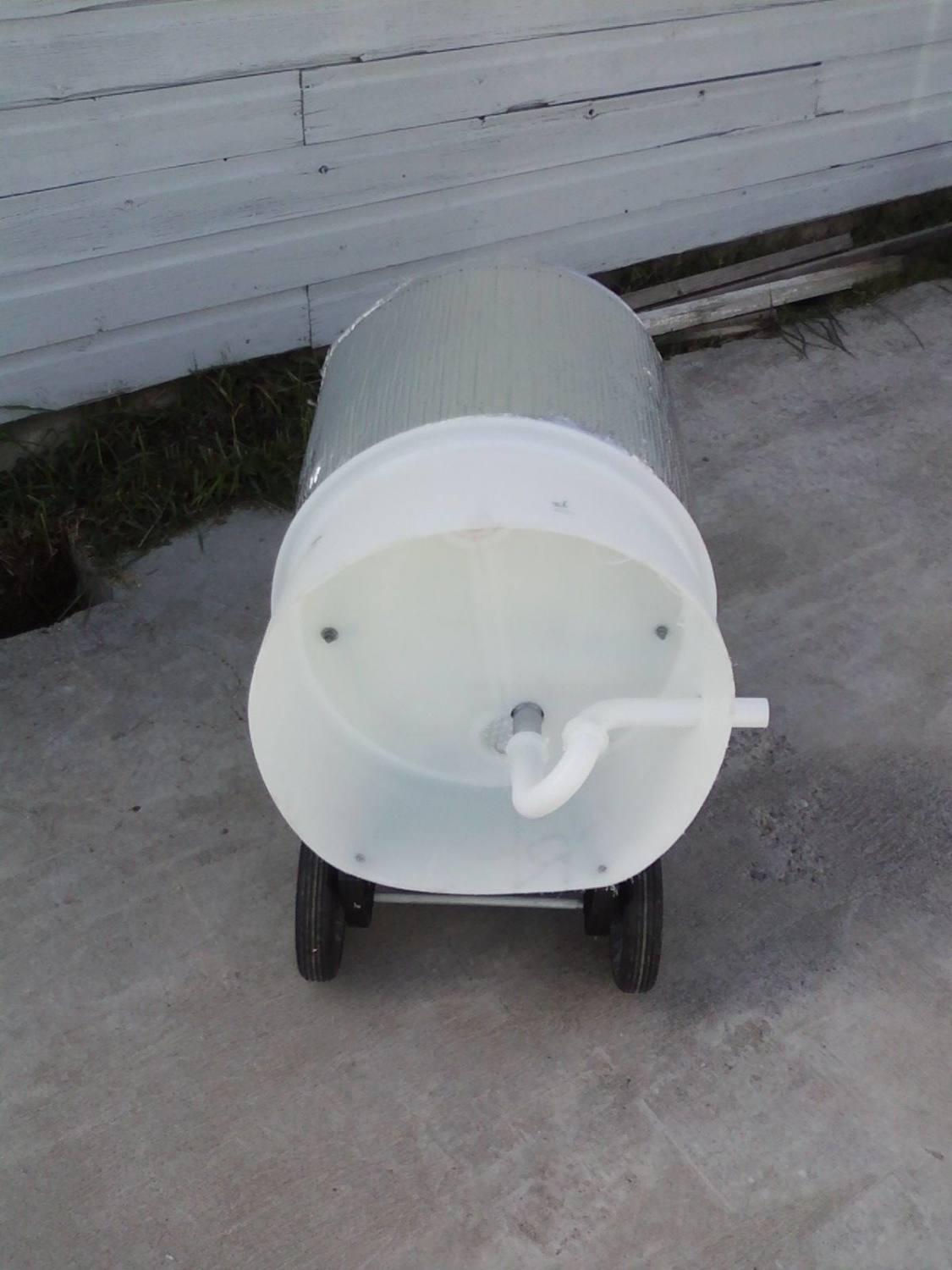

    And, here is the bottom of the scalder. Since I live in a very remote part of the country, I had few options for connecting a drain. Of course one does not need the "trap" but it really doesn't hurt anything either (as long as I drain it before winter). I will probably change that some day...if I feel like it.

    This thing is pretty simple. However, there isn't much rocket science involved in heating water. The backbone to this system is the Ranco digital temperature controller and the 120 volt, 1500 watt heating element (and the flange kit). These are very common items. Nearly any hardware store will have the flange mount (about $10) and EVERY RV dealer will have the heating element. Of course all the stuff is available on line.

  2. MontanaMeatBird

    MontanaMeatBird Out Of The Brooder

    18
    0
    21
    May 29, 2014
    Montana (SW)
    IMPORTANT DISCLAIMER on electric scalder:

    Since water and electricity are a hazardous combination--especially when outside--please use a GFCI for your safety. They are cheap and available almost everywhere.

  3. wsmoak

    wsmoak Chillin' With My Peeps

    I think you have just solved my problem. I already have a bucket heater that will heat a decent quantity of water -- but it has no thermostat and has to be babysat just like the propane burner method.

    ETC Supply not only has the part you mentioned, but for $15 extra they will pre-wire it with a plug and outlet! All I have to do is specify the cord lengths, and plug in my bucket heater.

    http://www.etcsupply.com/ranco-etc111000000-digital-temperature-controller-prewired-p-87.html

    Fabulous. Thanks so much for the pictures and part numbers!

    -Wendy

  4. LeeBrad

    LeeBrad Out Of The Brooder

    24
    2
    24
    May 20, 2014
    Western NC
    We built an electric scalded according to some plans that we found on here (my wife mainly built it as her project). We have the Ranco thermostat and heating element hooked up into the utility tub. Our problem is that the no matter what we set our temperature to (145) it keeps getting warmer and doesn't "stay" anywhere near where we set it. Does this sound like an issue with the heating element being too warm or not connecting correctly to the thermostat? We need to get this solved asap. Thanks for any help you can offer.

  5. MontanaMeatBird

    MontanaMeatBird Out Of The Brooder

    18
    0
    21
    May 29, 2014
    Montana (SW)
    check the connection diagram/directions very carefully included with the Ranco thermostat. They can easily be misunderstood....I am an electrician by trade and hooked mine up wrong...okay guys go ahead and throw some eggs at me...er, I mean tomatoes.

  6. seprintz

    seprintz New Egg

    6
    0
    7
    Jan 29, 2015
    That looks amazing, I am thinking about using this design!

    What keeps the plastic from melting?

  7. seprintz

    seprintz New Egg

    6
    0
    7
    Jan 29, 2015
  8. charthorn

    charthorn Chillin' With My Peeps

    18
    0
    75
    Feb 19, 2012
    New Mexico
    You're correct, 240v would be much more efficient, however for myself it's an issue of availability. I simply don't have 240 available where I butcher.

  9. MontanaMeatBird

    MontanaMeatBird Out Of The Brooder

    18
    0
    21
    May 29, 2014
    Montana (SW)
    Plastic (HDPE) melts at 266 degrees F. The scalder works around 145 degrees.

  10. MontanaMeatBird

    MontanaMeatBird Out Of The Brooder

    18
    0
    21
    May 29, 2014
    Montana (SW)
    240VAC would be better only because it would allow a higher wattage element with a similar size wire. Like you say, the logistics of running 240 kept me from doing this. 120VAC is convenient and the amperage/wattage is doable from an ordinary 20 amp circuit. Good luck with yours!
