Green Chicken Tractor

Tags:
  1. Ch1ck3nN3rd5
    [​IMG]

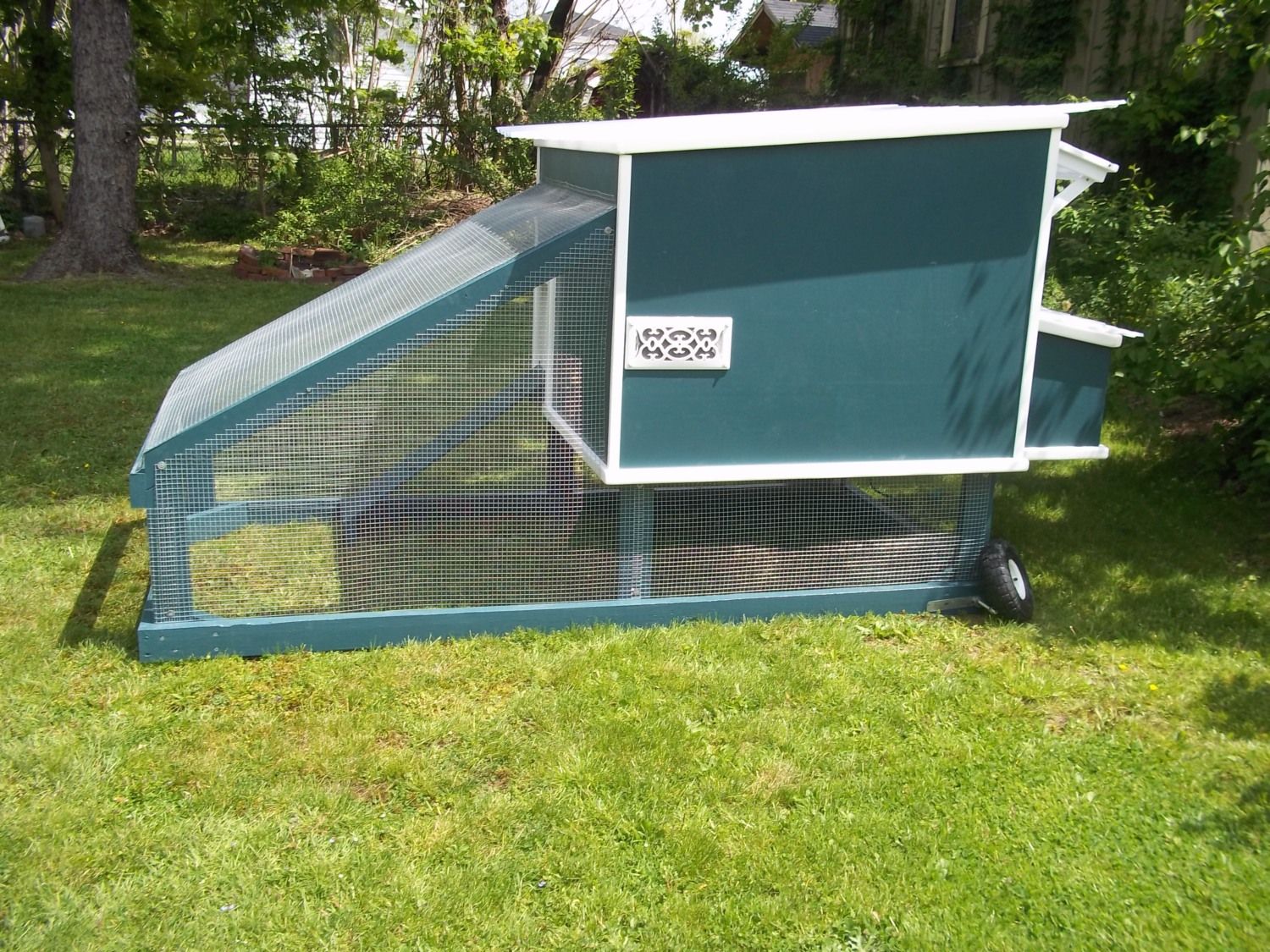

    This is our first attempt at owning chickens, we live in a residential area and wanted to make sure we had everything we needed in our first attempt at a coop so that it was easy to clean, nice to look at, and able to be moved around. We have 6 Golden Comets and are looking forward to having fresh eggs this summer!

    [​IMG]

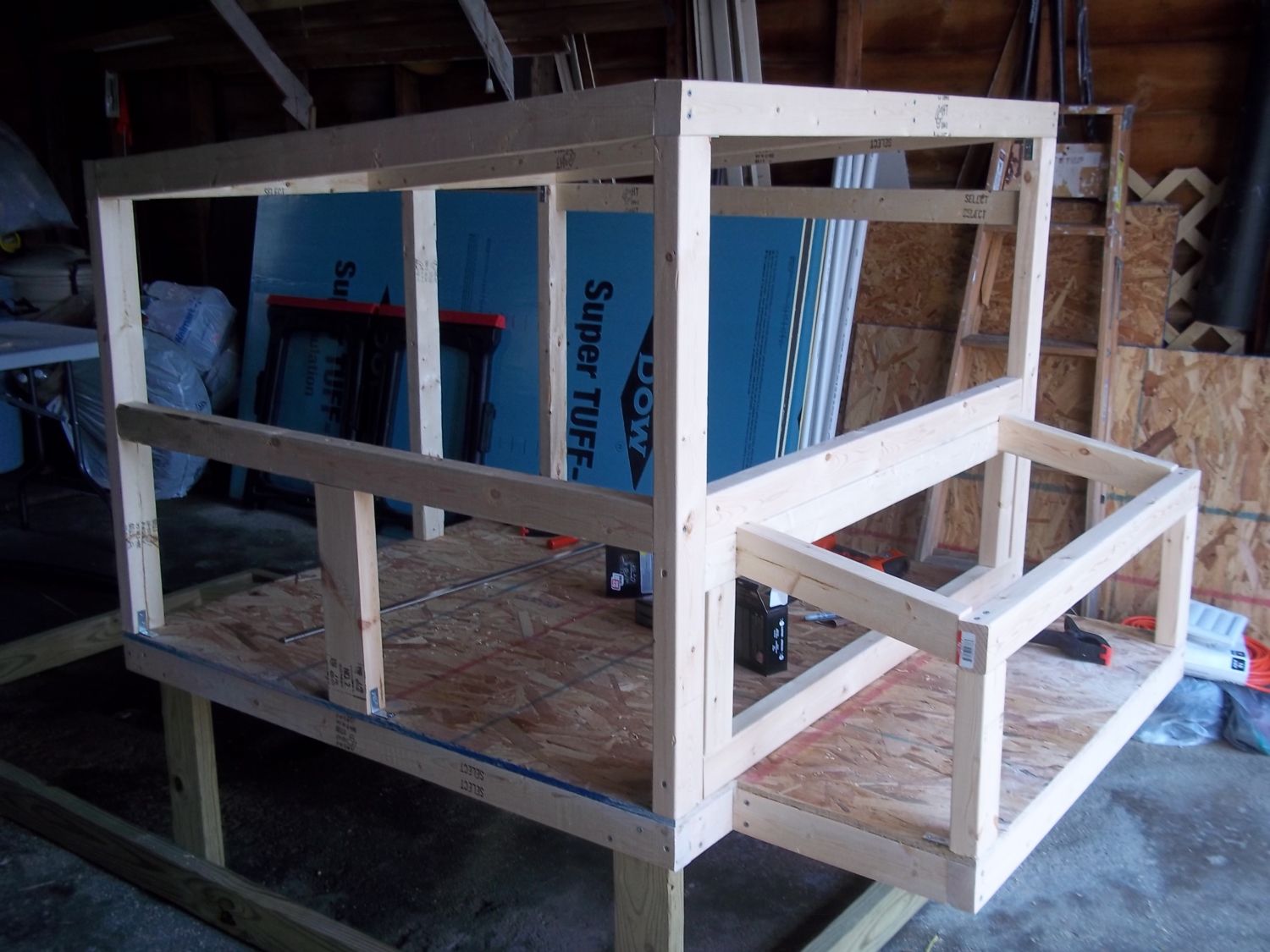

    The framing of the coop. It is 4' x 4' and 3' 2" tall on tall end, 2' 10" tall on short side.

    [​IMG]

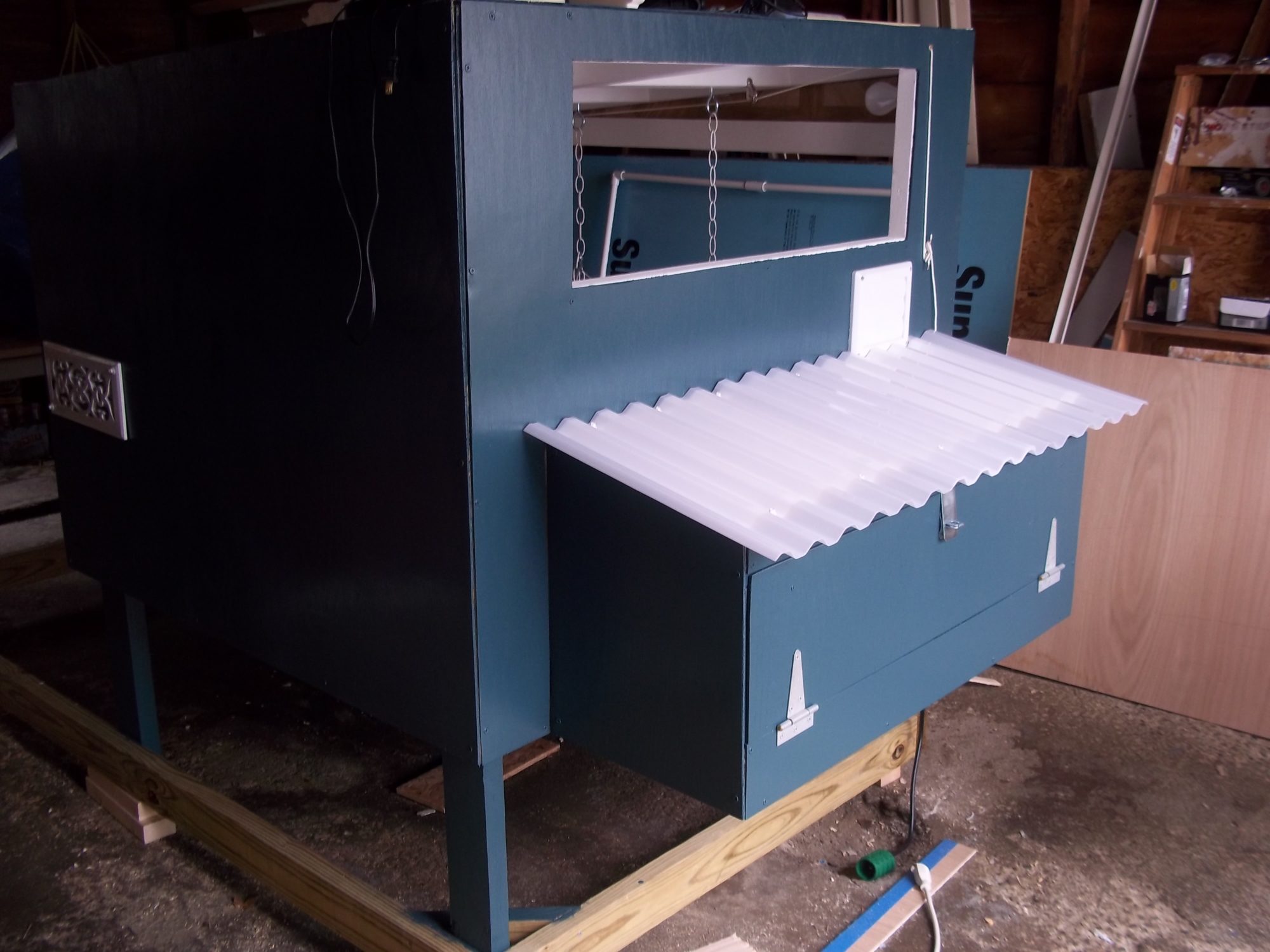

    Nest box side with large window, door for access to the nest boxes, rope and cleat for chicken door on opposite wall, and a dryer vent with fan on automatic timer. Also a vent that can be opened and closed on the back wall.

    [​IMG]

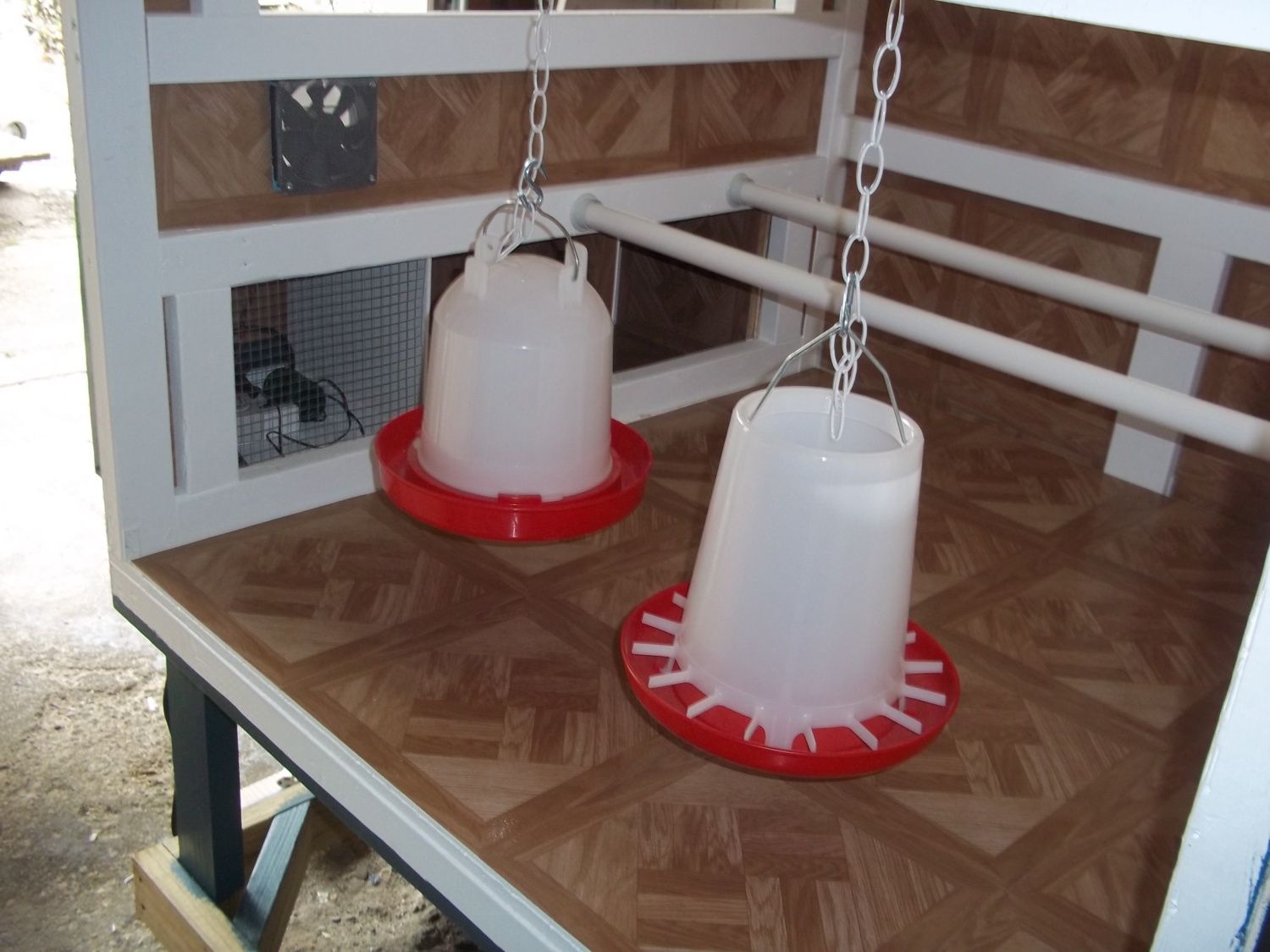

    The inside has 2, 1' x 1' x 1' nest boxes and a 3rd section for the electronics (heat bulb, power strip for light, heat bulb, and fan) Space for both the feeder and waterer inside, so hopefully the water won't freeze during the winter months. Closet rod brackets are used for holding the PVC perches (we installed some screws on one end of the PVC to keep the pipe from spinning when our chickens perched on them). There is 1/4" plywood covered with vinyl tiles for the flooring and also tiles on the wall as well to make cleaning easy.

    [​IMG]

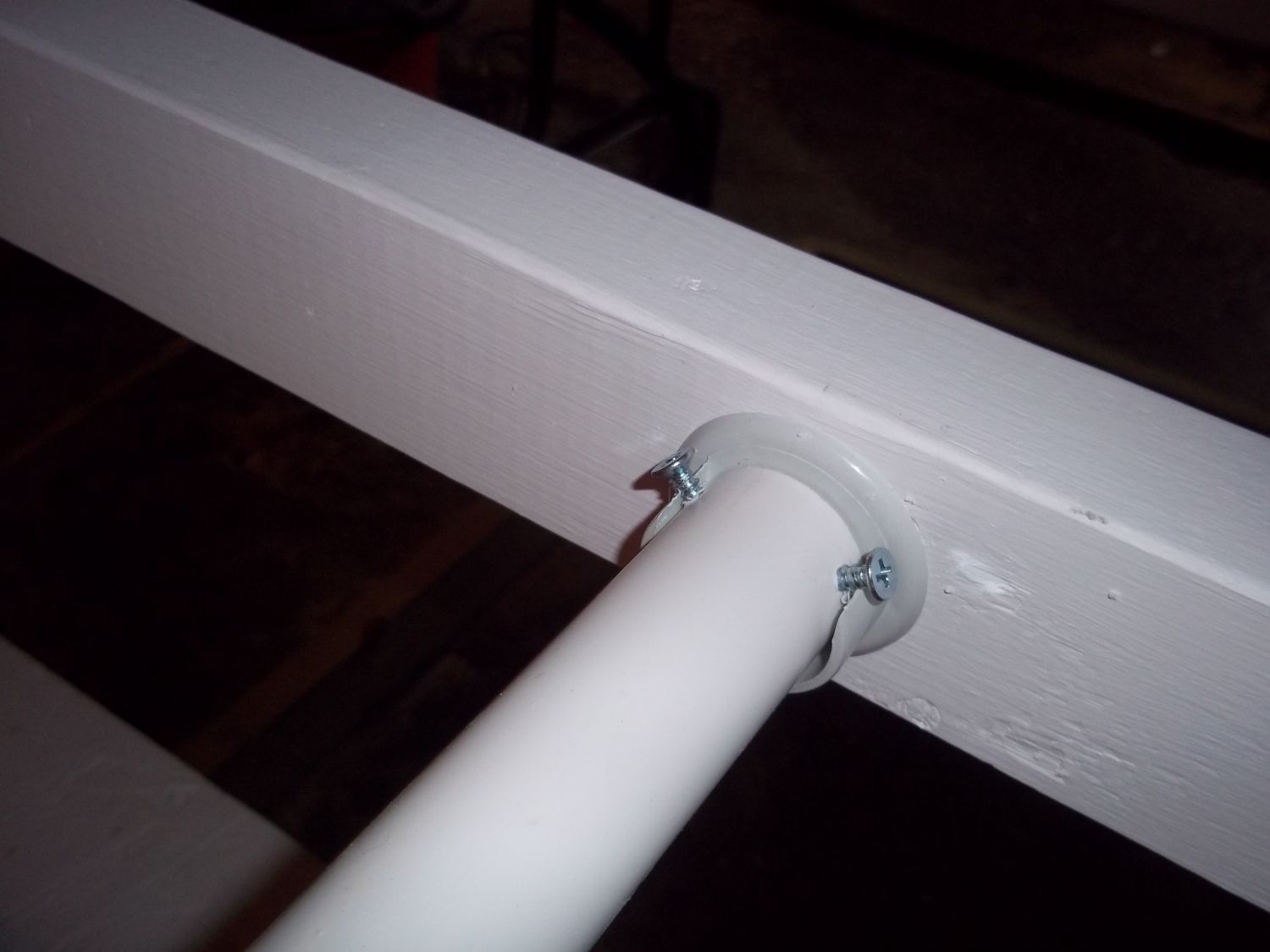

    The screws in the PVC perch mentioned in the last picture to prevent it from spinning.

    [​IMG]

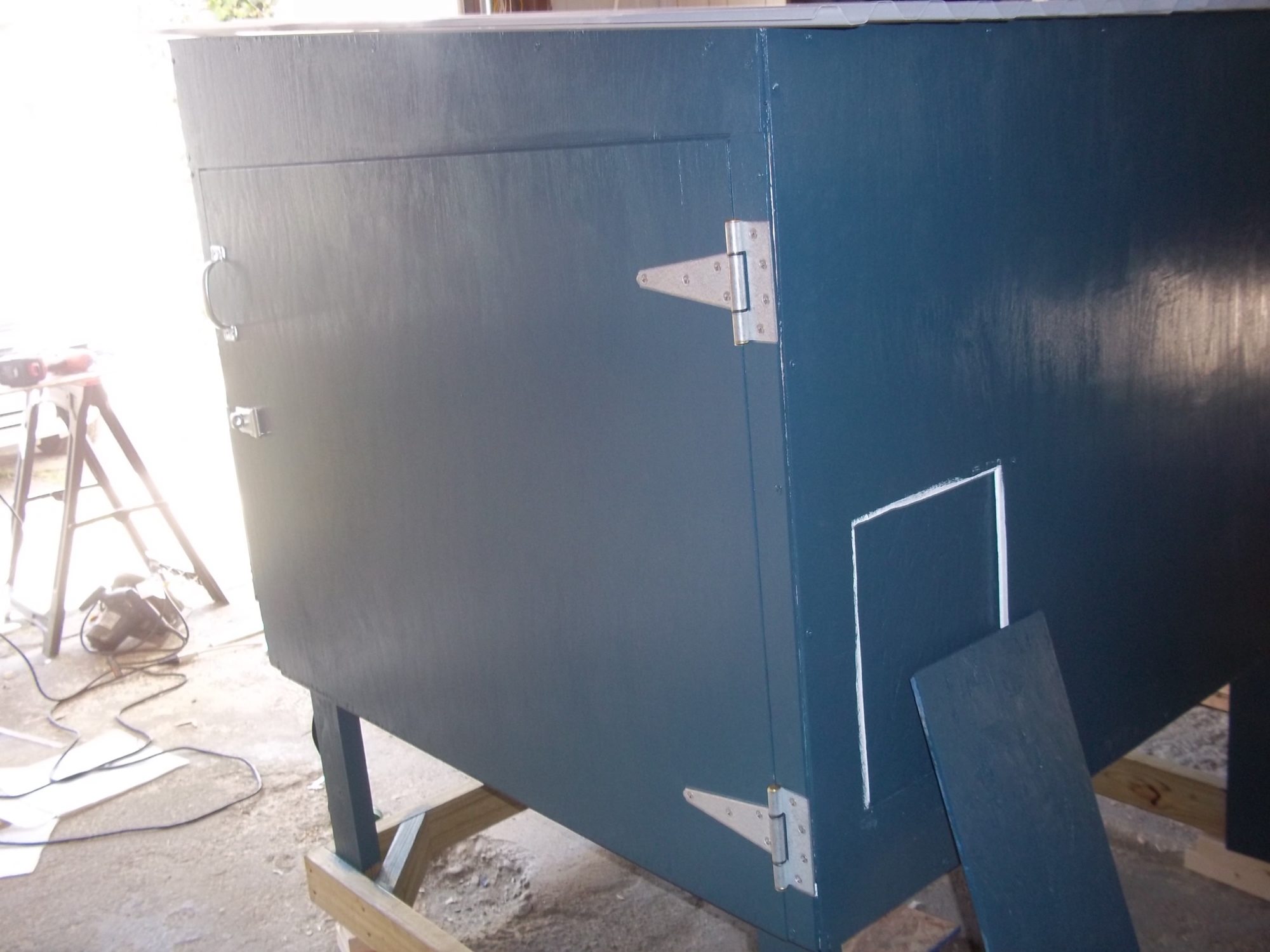

    We made the door on the side the full width of the wall (minus the studs at the corners) so that the tray and wire rack could be removed and cleaned.

    [​IMG]

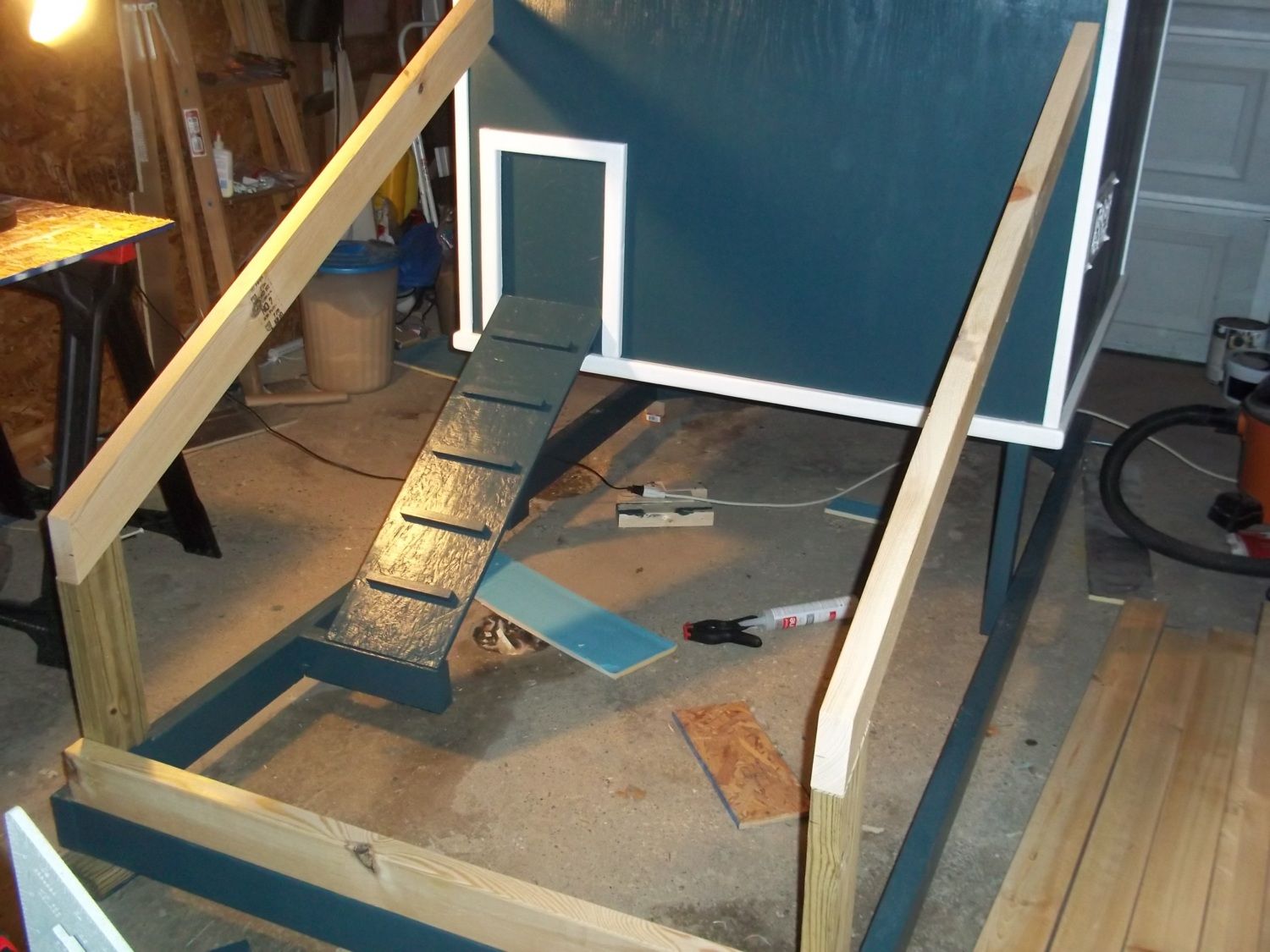

    There is a 5 inch gap between the slats on the ramp and the ramp and framing for the run are both set at a 30 degree angle. There is 22" of space under the coop. and the run is 4' x 8'

    [​IMG]

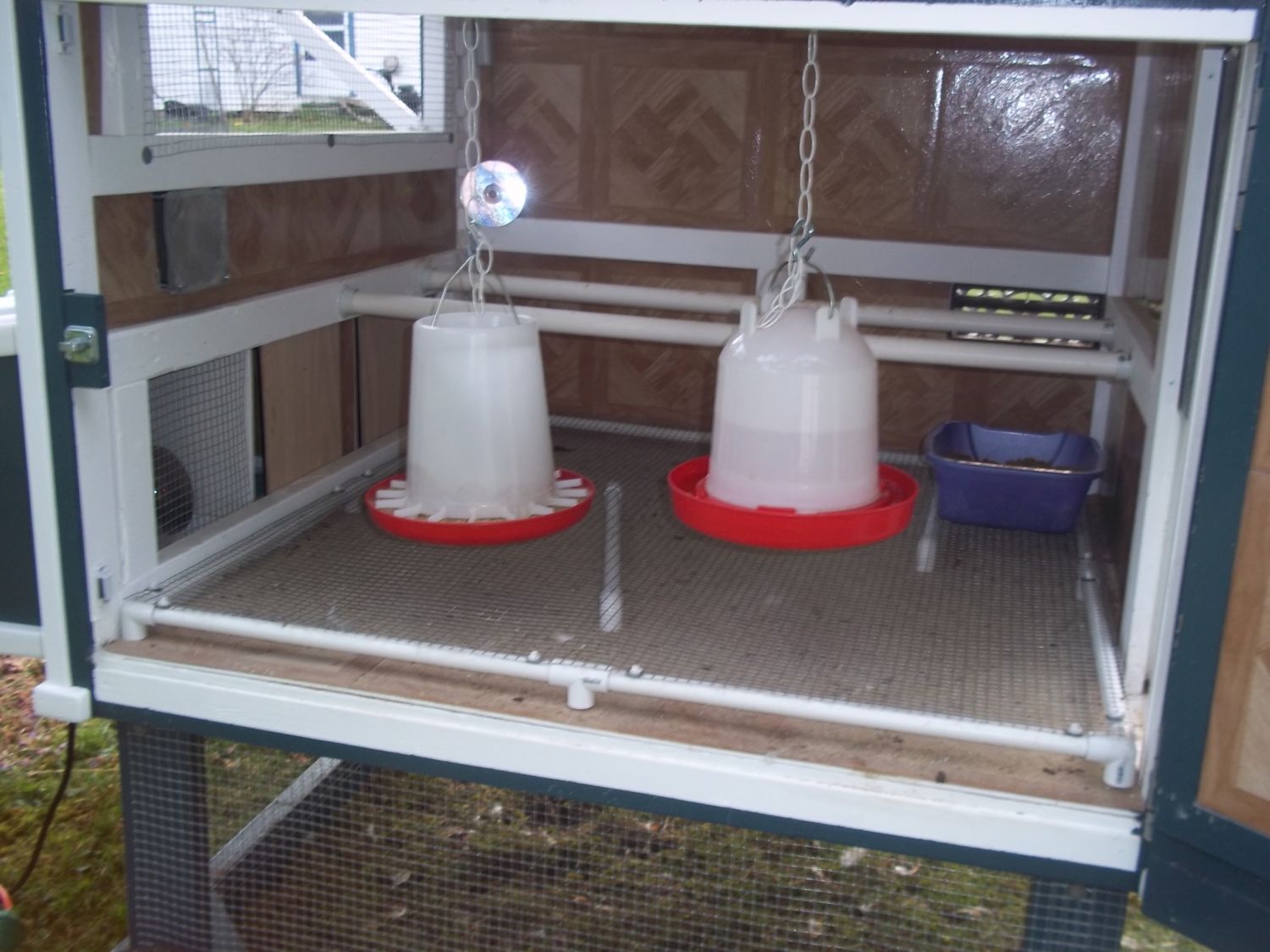

    We used 1/2" hardware cloth for the window, "electronics box", screen grate for them to walk on, and for the run. The hardware cloth is screwed down onto a PVC frame (we had to add a few supports in the middle so that when the chickens walk on it, it didn't sag enough for them to hit the floor) We added a litter box with sand in it so they can take sand baths and we also spread a little sand across the floor for easy clean up.

    [​IMG]

    The finished coop from the back side.

    [​IMG]

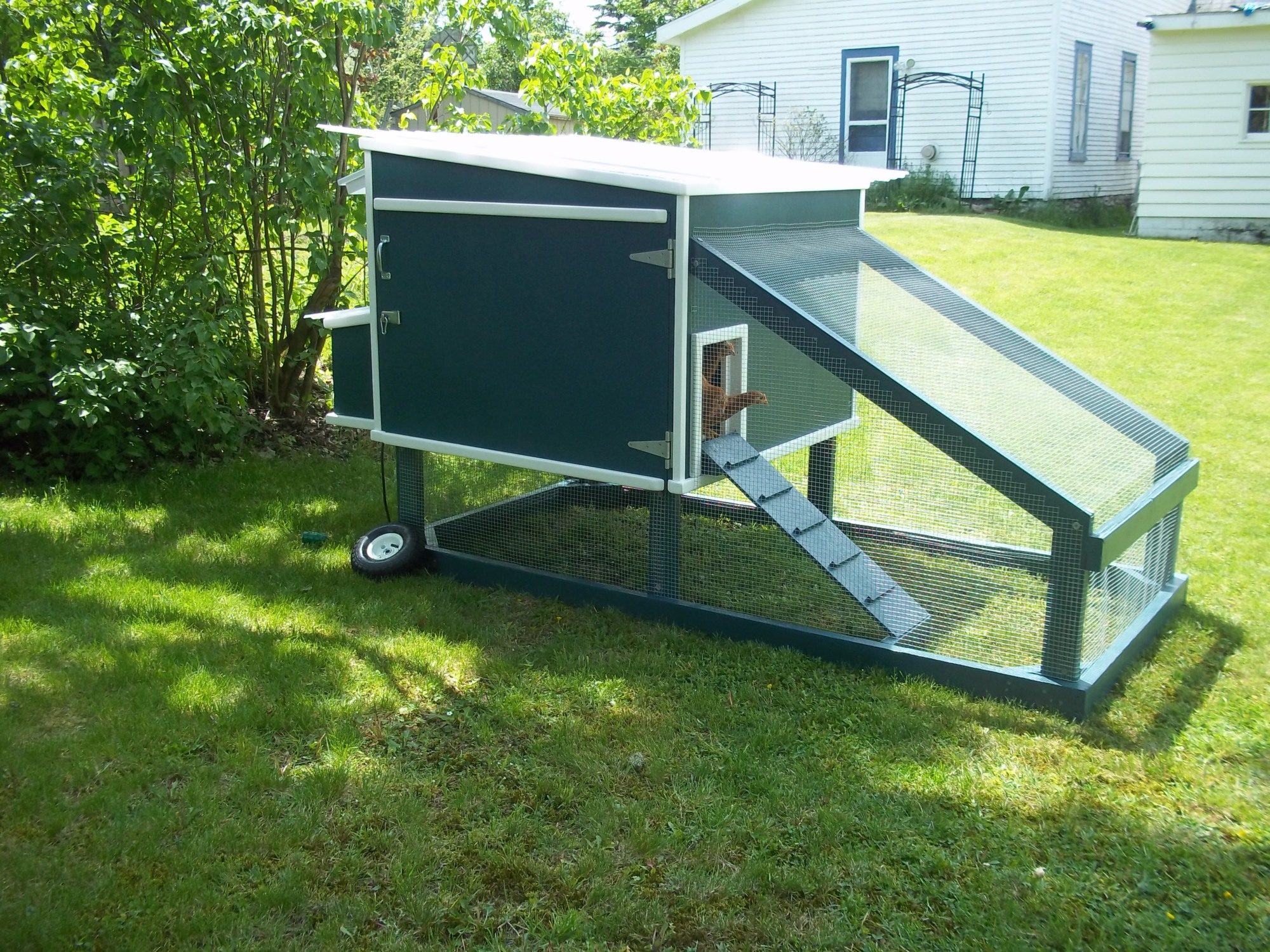

    Finished front side. The tires are only placed on their carriage bolt axles when we are moving it, we remove the tires when it is stationary to keep the axle from having too much stress on it and to keep from having a gap under the framing for the run as well. When we do move it, it is a 2 person job to have one person lift up on the coop and the other person put the tire on the axle. It moves quite easily by lifting the run side and pushing or pulling it like a wheel barrow.

    Share This Article

Comments

To make a comment simply sign up and become a member!
  1. Ch1ck3nN3rd5
    Sorry I didn't get back to you sooner, I haven't been checking for questions recently. So far everything is working great. There are a few minor changes that we might make. The primary thing is that we think we are going to trade out the removable floor with a custom made stainless steal tray and fill it with a little more sand. Also, we are trying to figure out a way to make a custom feeder and waterer to try and minimize spilling of both the food and water. Everything else with the coop we have been happy with so far.
    I'm flattered that you would want to copy the design and you are welcome to. I'm not sure if you can use only the pictures as instructions or not. If you need any extra details or pictures, let me know.
  2. savannah777
    This looks great! I have only two chickens and am using a small tractor.. I wanted to see how the hens would do out where I live in the country. (MANY predators) I would like to build a larger one and this is an awesome plan. How are things working out? Did you have anything that you would change to make it easier?? I really like the large doors and the nesting box access is perfect! I love how you have thought things through for cleaning. I am handy with building; do you think a person could use your plans just from the pictures? If it is okay with you, of course!
  3. Ch1ck3nN3rd5
    It seems to work great for them, it was slightly slippery, but I sanded the top of it to rough it up a little and they don't have any issues with it. It's nice because they are removable and clean easily with a wet sponge.
  4. joan1708
    cute coop. I've never seen a PVC perch. It's not to slippery?
