building an incubator

Discussion in 'Incubating & Hatching Eggs' started by Loretta212, Nov 23, 2011.

  1. Loretta212

    Loretta212 Chillin' With My Peeps

    436
    3
    111
    Sep 27, 2011
    Meriden ct
    so my husband wants to make me an incubator for my birthday! very excited! i see all the links and instructions on this site and was wondering if anyone has made any of them and which one you would recomend. I was using a hova bator and had some good luck with it but would like a fan and somthing easier to control temp and humidity
    thanks [​IMG]

  2. canesisters

    canesisters Chillin' With My Peeps

    2,341
    103
    218
    Aug 18, 2011
    Virginia
    saw one here just a couple of days ago that was made out of a refrigerator - very cool! ... or.. warm, I guess.... [​IMG]

  3. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Very fun to do. I have a mini fridge incubator. Here's a few pics, but there are more on one of my pages. [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] Here's what it is. I am wanting to make a wood cabinet incubator, but I thought this would be cheaper. I only paid ten bucks for this old mini fridge.

  4. stines4

    stines4 Out Of The Brooder

    85
    1
    39
    Apr 30, 2011
    Chatsworth
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    if you like this and want to know any thing just let me know!

  5. stines4

    stines4 Out Of The Brooder

    85
    1
    39
    Apr 30, 2011
    Chatsworth
    Quote:mine is!!!!!!![​IMG][​IMG]

  6. barkerbeau

    barkerbeau Out Of The Brooder

    20
    0
    32
    Oct 29, 2011
    i just finished mine. cabinet style that could hold 90 eggs. 180 if you double stack egg trays. All brand new parts with a manual turner that can turn ALL the eggs with one simple lever (I dont like auto turners...i like being a part of the incubation process). I made a few mistakes on my initial build and had to buy parts that I didn't need. I could build the entire thing for about $75.
    [​IMG]
    [​IMG]

  7. cmom

    cmom Hilltop Farm

    16,199
    642
    396
    Nov 18, 2007
    Florida
    My Coop
    I bought a fan and put it in one of my Hova-Bators.
    [​IMG]

  8. Phantom_Rooster

    Phantom_Rooster Chillin' With My Peeps

    418
    7
    91
    Oct 12, 2011
    NW Louisiana

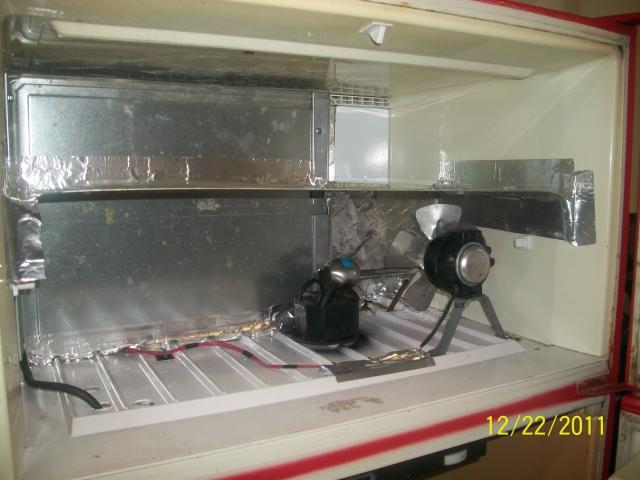

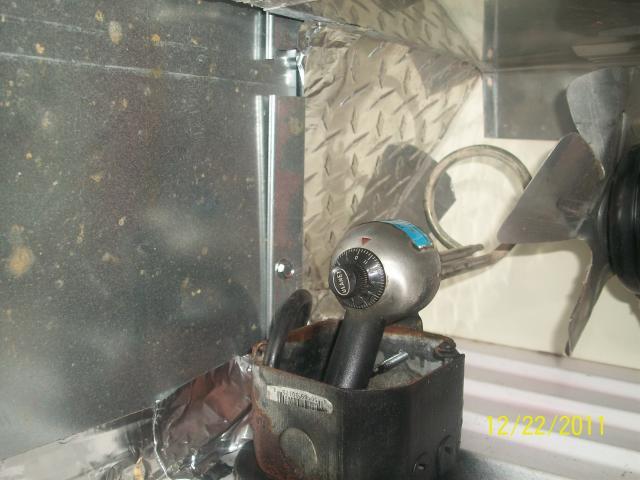

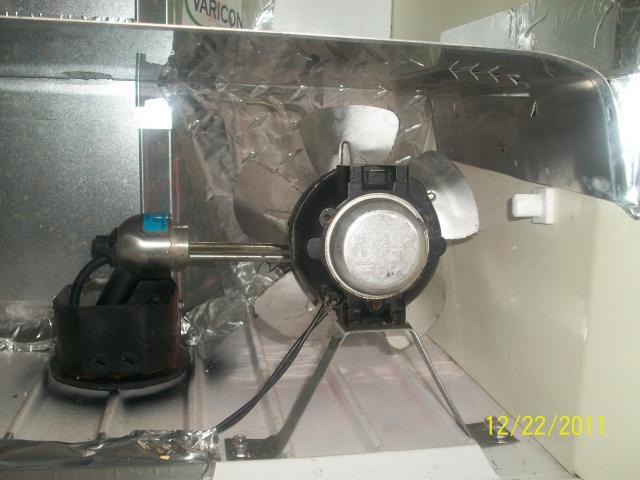

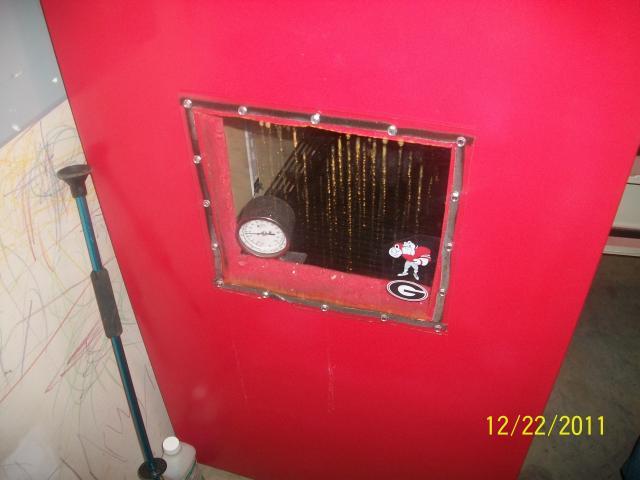

    Quote:Here you go. I followed the design of rushlanepoultry.com. I would recommend watching his videos. Wade is very helpful. I would not recommend the water heater thermostat. They work, but, they are difficult for most folks. I was keeping a temp swing of ±0.3° for days, until the room temperature changed due to the weather. Here's mine now. The second pic is current. The 1st and 3rd pics are from earlier. I ended up using a thermostat from an old Sears and Roebuck Incubator. My temps are now 99.5° ±0.1°, consistently. Yeah, it surprises me too. Most of the time that I look at it, the temp is 99.5°. I don't know how consistent the GQF thermostats are. This design really doesn't get any simpler. Without the modified LG turner and thermometers, I can build one of these for less than $100 in materials(probably several dollars than that). Rushlanepoultry.com sells them for $130 + shipping. It comes with a manual turner. You'll just have to see it. It is so simple. He says it takes less than 30 seconds to turn the eggs. Yeah, more like less than 10 seconds. Mine has circulated air, water fill through syringe, wafer thermostat, easy clean-up, lots of space for eggs, and easy access by only having to raise a lid. You don't have to remove the whole top with the heating system, fan, and everything to get to the eggs, thus exposing all eggs to low temps. You just raise the lid, take out an egg for candling and put it back. I never go below 99° when opening the lid. And, I only open to candle. To each his own. I'll like my cheap bator. I don't have to worry about bacteria creeping through the porous styrofoam. I can just wipe mine with a quick swipe of a rag with some light bleach water and it's done.

    [​IMG]

    [​IMG]

    [​IMG]
