Expanded Run Build

Install Hardware Cloth:

Minimum previous install experience with 1/2" by 1/2" four foot high HC. Doing a good job is a lot of cutting, reattaching HC sections and careful critter proof installation.

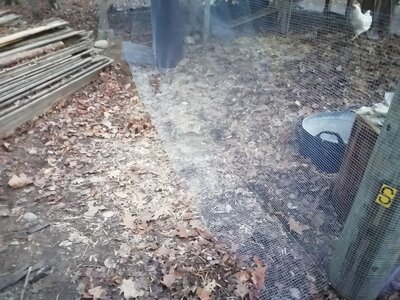

I cut and attached 16" aprons around whole coop; attachment done with Dewalt Hog Tie tool.


IMG_20201113_161028.jpg IMG_20201113_161903.jpg IMG_20201114_131817.jpg IMG_20201114_150421.jpg IMG_20201114_150457.jpg IMG_20201114_150523.jpg


Wow, thought you'd add a nailer across that span for the HC joint.
Any overlap of the HC there?
That must have been tricky!

View attachment 2411619
Wow, thought you'd add a nailer across that span for the HC joint.
Any overlap of the HC there?
That must have been tricky!

I will add wooden trim both sides along the horizontal HC seams, hoping that will suffice from both predator intrusion and wall stiffness perspectives.

The hog tie tool and a bit of layout step logic makes it very doable.

Reset:

I will remove the 10 roofing panels (to my chagrin). Two reasons: better predator proofing for hardware cloth; install roofing membrane.

I will wrap top HC over the roof strapping/membrane and under roof tin. Will adjust alignment and overhang of panels.

The 100 year old tin I am using has holes/tears from past installation/removal; the membrane will divert water intrusions to lower back roof line.

Do it right the first time, duh!

Hardware Cloth Installation for a Run:

Based on my experience this is a serious job.

Most runs that I have seen are built in a regular frame structure where openings match width of HC. I have a pole shed with an irregular pole layout.

Regardless there are multiple steps:
  1. cut, attach, connect HC for walls, aprons, door;
  2. critter proof overall structure;
  3. design, build, install run door;
In my case the most tedious task is cutting and re-attaching pieces of HC, some large some small, into a cage that envelopes the structure. I decided on hog ring pliers

https://www.amazon.com/DEWALT-P7DW-...eywords=hog+ring+pliers&qid=1605961394&sr=8-6

Once I started to use them I realized that this style limits access to the two wires that need to be bound together; essentially the two pieces of HC have to be folded back, hog-tied, unfolded; flexible wire "sewn in" must be used in a few situations. There are better plier designs, some quite expensive.

"Encaging" an irregular structure requires even more work as HC does not easily bend. One is forced to bend, cut, tie together, critter proof various nooks and crannies in inventive ways.

I will get some pictures.

Once I started to use them I realized that this style limits access to the two wires that need to be bound together; essentially the two pieces of HC have to be folded back, hog-tied, unfolded; flexible wire "sewn in" must be used in a few situations.
Yep, why I 'hate' hog ring and jclips for HC.

I will get some pictures.
