My first coop build

darkbyrd

In the Brooder
8 Years
Jan 27, 2011
56
0
29
Pisgah Nat'l Forest, GRD
Well, here is the beginning. 6x8, exterior nest boxes. After looking for coop plans that were about the size I wanted, and not finding any, I went with a shed, and just adapted it to a coop. It is being built in my driveway, and will be dragged into place

Without further ado...

4x4 pressure-treated runners, oak rim joists (salvaged from big pallets), 2x4 joists and blocking


1/2 inch PT plywood floor, 3 walls leaning on my car in background

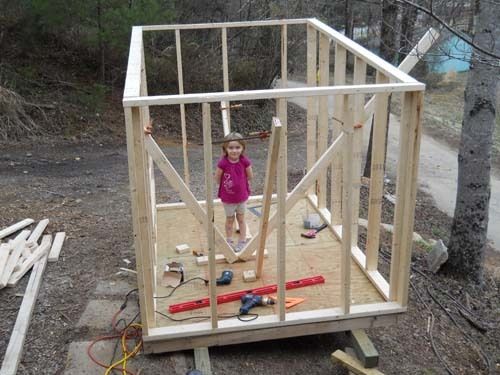

Walls up, and DD, my little helper

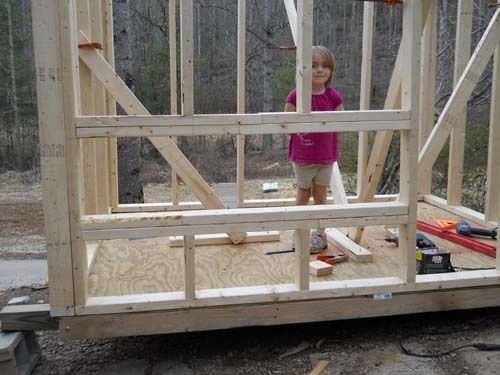

Close up of framing for exterior nest boxes


Still to come: rafters, metal roof, siding, nest boxes, and DW has been talking about a barn quilt...

Last edited:

theoldchick

The Chicken Whisperer
Premium Feather Member
12 Years
May 11, 2010
33,245
25,138
987
Not bad at all! Good thing your supervisor is there to keep things on track!


darkbyrd

In the Brooder
8 Years
Jan 27, 2011
56
0
29
Pisgah Nat'l Forest, GRD
Quote:
And I'm jealous of your snow! My helper got a sled for her birthday a few weeks back, and it is looking like it will collect dust until next winter. We only saw 9-10 inches this year, total.


RiddleMe

Songster
8 Years
Feb 8, 2011
618
38
146
Central Oregon
Working on plans for my own coop and kinda in the same boat, having to come up with shed plans instead and modify. I had a couple questions:
1) Are your joists 18" oc?
2) Are your joists spanning the 8' length vs the 6' length?
3) Did your plans show to lay your skids parallel to the floor joists or did you just want them running the long way?
4) Are you going with a shed roof (vs gable, etc).

Look forward to more pics!


darkbyrd

In the Brooder
8 Years
Jan 27, 2011
56
0
29
Pisgah Nat'l Forest, GRD
Quote:
1) yes, about that.
2) 8'
3) This is actually my plan, my design. Originally I planned the joists to run across the skids. However, the size of the rim joists were slightly smaller than the 2x4's, and would have caused a hump in the floor (or a notch) at the skids. So I put the blocking in instead. If I were to do it again, I probably would run the joists perpendicular to the skids, it would be stronger that way.
4) shed roof, 2' wide salvage metal roof material

This is my first 'real' building project, so I learned alot doing what I did, and still have much more to learn. There were a few mistakes made, none a big deal. Next one will go easier. But what helped alot was having a pack of cedar shims handy. They come in a bundle of 30 or so, and are about 6" long. Very helpful in making up gaps from cutting slightly off, or from warped lumber. Lowes certainly didn't sell me quality 2x4's. Also, the whole thing is put together with 3" exterior deck screws, hopefully making it stronger, and more able to handle the stress of being dragged around.
