My homemade incubator.

Discussion in 'Incubating & Hatching Eggs' started by kada6305, Sep 26, 2014.

  1. kada6305

    kada6305 Chillin' With My Peeps

    1,988
    72
    158
    Mar 13, 2013
    Kersey, Pennsylvania
    Thought i would post pictures of my homemade incubator made from a cooler from walmart. I've seen pictures of other with the light on the side but I've found with it on the lid the temperature is more consistent through the incubator. When I had it on the side the temp would be too high on the eggs closer to the bulb and too cold on the other side.


    [​IMG]

    Front window
    [​IMG]

    Toilet paper roll cut to keep the eggs from rolling into each other if the incubator gets bumped ( I have 3 dogs)
    The thermometer probe taped to a test egg until I got the temperature right.
    The thermostat sensor.
    [​IMG]


    wire mesh on the floor and paper towels on top of that. There is a lid of an egg carton below the wire mesh that I fill with water for humidity.

    [​IMG]
    Top window on lid
    [​IMG]
    Hole for the thermostat sensor
    [​IMG]
    Top view
    [​IMG]

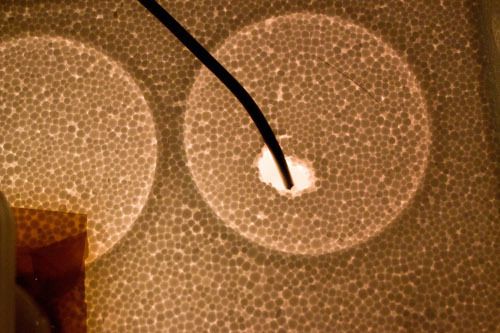

    Light on the lid
    [​IMG]
    The thermostat I use and have good success of keeping the temperature. Only varies 1 degree. Turns on at 100 and turns off at 101

  2. HugHess

    HugHess Chickrack Addict

    1,006
    87
    168
    Jul 14, 2014
    Go BROWNS
    Nice.
    Let us know how your hatching goes!

  3. kada6305

    kada6305 Chillin' With My Peeps

    1,988
    72
    158
    Mar 13, 2013
    Kersey, Pennsylvania
    Thanks!I just set my eggs tonight so will be awhile :) Last batch I didn't have the thermostat hooked up and I was using a 60watt light. This time I have a 25watt and it's perfect.
    the middle turns on at 100 and turns off at 101.
    the left side turns on at 100 off at 101
    The right turns on at 101 and off at 102.

    For a homemade incubator I think the temperature is pretty good. This only holds 12 average eggs, could fit more with bantams. I want to make a bigger one once I figure out if this one works out or not.

  4. only1bgirl

    only1bgirl Chillin' With My Peeps

    486
    41
    138
    Apr 24, 2014
    Oregon
    Where did you get that thermost? And I'm curious about air flow/holes? The temperature fluctuations are in a good range, it should work good!

    Last edited: Sep 27, 2014
  5. kada6305

    kada6305 Chillin' With My Peeps

    1,988
    72
    158
    Mar 13, 2013
    Kersey, Pennsylvania
    I got it off of Amazon. There are some hole on the sides and I added some on the lid, about 6 holes total.

    Here is what I ordered: But mine wasn't that much when I got it awhile ago. May be able to find it on E-bay for cheaper.

    http://www.amazon.com/gp/product/B0018CLYNG/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

    Remember, I have it set at 104* to get my temperatures right, so you do have to play around with it. And I only have a 25 watt light.

    1 person likes this.
  6. lolgirl101

    lolgirl101 New Egg

    8
    6
    9
    Sep 27, 2014
    Cool, was it expensive to make??

  7. only1bgirl

    only1bgirl Chillin' With My Peeps

    486
    41
    138
    Apr 24, 2014
    Oregon
    Yes, I have to do this with my LG styrobator too, the temp never matches up. I tried making one similar to yours and the 25 watt light bulb produced the correct temperature. I ended up buying a incubator what a waste of $! Good luck it looks and sounds right to me! Happy Hatching!

  8. only1bgirl

    only1bgirl Chillin' With My Peeps

    486
    41
    138
    Apr 24, 2014
    Oregon
    Ouch you're right the thermostat is too much now! I got hung up on the fan but they're really not necessary either!

  9. kada6305

    kada6305 Chillin' With My Peeps

    1,988
    72
    158
    Mar 13, 2013
    Kersey, Pennsylvania
    Bsides the thermostat it only cost me about $10. I already had the cooler laying around the house. with the thermostat it was $30

  10. only1bgirl

    only1bgirl Chillin' With My Peeps

    486
    41
    138
    Apr 24, 2014
    Oregon
    Post results please, will be neat to see! Are you hatching local or shipped eggs?
