My new incubator(they're hatching)pics, final numbers

Discussion in 'Incubating & Hatching Eggs' started by redneck, Sep 9, 2007.

  1. redneck

    redneck Chillin' With My Peeps

    191
    1
    131
    May 25, 2007
    Lynchburg,Tn.

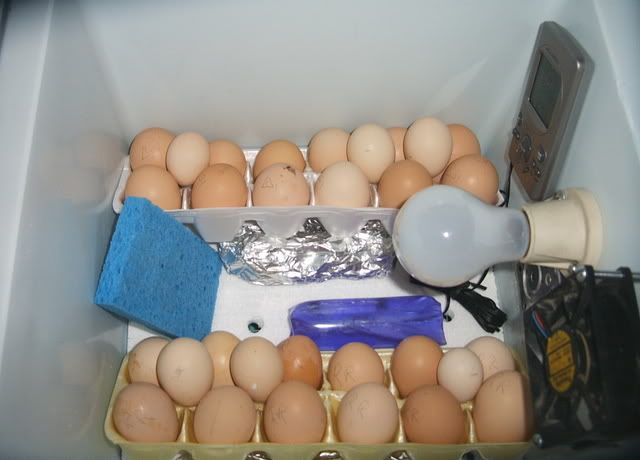

    I got the itch to build another incubator. I had a 12 volt cooler that I never used anymore. I took it apart and started building. I used a hot water heater element, Accurite temp/humidity, and a water wiggler. I also scavenged another pc fan.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    I set 30 eggs 12 Road Island Reds, 12 Black Stars, and 6 Bantams.

    Last edited: Sep 28, 2007
  2. lurky

    lurky Chillin' With My Peeps

    Jun 4, 2007
    Western MA
    WOW....I wish i was that ambitious!!!!! Nice job!

  3. Davaroo

    Davaroo Poultry Crank

    5,518
    72
    308
    Feb 4, 2007
    Leesville, SC
    So how does it perform?

    How will you adjust Rh?

  4. redneck

    redneck Chillin' With My Peeps

    191
    1
    131
    May 25, 2007
    Lynchburg,Tn.
    It is very stable on the temp. I have got it between 99.1 and 100 degrees. It takes very little water to raise the humidity. I have to keep all the vents open. I set all the eggs on the 5th of Sept.

  5. Krazy

    Krazy Out Of The Brooder

    99
    0
    39
    Jul 30, 2007
    California
    AHH! I see a bow arrow [​IMG]. Very nice work! I'm also trying to make an custom incubator.

    Last edited: Sep 9, 2007
  6. jimnjay

    jimnjay Chillin' With My Peeps

    1,912
    17
    201
    Jan 11, 2007
    Bryant Alabama
    Red, how did you handle ventalation? It looks really good. Will you take the eggs out of the carton on day 18?

  7. Keisha

    Keisha Chillin' With My Peeps

    440
    0
    149
    Apr 27, 2007
    Iowa
    That looks really good! I hope you have a good hatch. [​IMG]

  8. redneck

    redneck Chillin' With My Peeps

    191
    1
    131
    May 25, 2007
    Lynchburg,Tn.
    I have several 1/2 inch holes. 2 in front 1 in the side. I will get some pics of the sides. As far as the humidity, I have a false bottom I have a small bowl under the Styrofoam floor. I can poor water through the floor to fill the bowl. When my eggs hatch I will take a few pics of the floor. I will take the eggs out at day 18.

    Last edited: Sep 9, 2007
  9. Krazy

    Krazy Out Of The Brooder

    99
    0
    39
    Jul 30, 2007
    California
    wont the eggs near the light be over the temperature since the light bulb becomes really hot and its really close to the egg

  10. redneck

    redneck Chillin' With My Peeps

    191
    1
    131
    May 25, 2007
    Lynchburg,Tn.
    I have a fan that circulates the air, i hope that will help. I moved the water wiggler around in the bator for a few days and my temps were pretty constant.
