New treadle sewing machine!

Discussion in 'Hobbies' started by CarolineNH, Apr 8, 2013.

  1. CarolineNH

    CarolineNH Out Of The Brooder

    61
    0
    31
    Sep 27, 2010
    Sandown, NH
    I found the ad for this machine on Craigslist, but it was almost 2 hours away. I was fortunate enough to have a nearby relative willing to pick it up and bring it up here on his next trip up this way. I got it from him on Saturday, and spent a day and a half or so cleaning it up. The cabinet needs quite a bit of restoration, but I'm far more interested in the functional than the cosmetic. This is my favorite type of treadle - vibrating shuttle machine, with a top leaf tension.

    [​IMG]

    I scavenged a belt from another machine (I have *ahem* several treadle machines) and have it cleaned up & running!

    [​IMG]

    The full write-up on this machine, along with more pictures, is on my blog, if you're interested.
    It still needs a little more work, but it sews beautifully! It might just be the best $35 I've ever spent!

  2. dmccann

    dmccann Chillin' With My Peeps

    2,296
    14
    191
    Jul 19, 2009
    darlington pa
    My Coop
    What did u use to clean the machine?thx

  3. CarolineNH

    CarolineNH Out Of The Brooder

    61
    0
    31
    Sep 27, 2010
    Sandown, NH
    I used a couple of things; first of all, I used "Liquid Wrench", which is basically kerosene. That's what is recommended by the people on the TreadleOn.net board for cleaning machines without ruining the decals. I have another machine that I used Formula 409 or something like that on, years ago, and it turned all the decals silver.

    I also used one of those green Scotch-Brite scrubby pads. I used a piece of old bath towel on most of it, but used chrome polish and the Scotch-brite on the silver metal parts - the stitch length indicator, slide plates, the wheel on the right-hand side. I probably wouldn't use scrubby materials on the decals.

    After I cleaned most of the outside with Liquid Wrench, I squirted a few drops of the Liquid Wrench into the holes in the machine that are intended for oil / lubrication. I figured if there had been oil used (entirely likely) it was probably all gummy and sticky, and the Liquid Wrench can dissolve that.

    I then threaded the machine, wound a new bobbin, and ran a few pieces of fabric through the machine over and over, using up excess liquid. Then I "oiled" the machine with Tri-Flow (silicone spray), although at this point it's ready for regular sewing machine oil. I did open up one of the plates in the back to see what kind of shape the interior gears are in, and I think this machine itself, regardless of the shape the outside cabinet is in, was used very little, if at all. It works wonderfully now! I have located and ordered new needles for it, as well as a new shuttle.

  4. DeerFangRanch

    DeerFangRanch Chillin' With My Peeps

    Love to see the old machines used [​IMG]

  5. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    That's awesome, I work in the area of sewing machine restoration and repair. I love that machine, it appears to be from the 1890's to me. GREAT find. I wouldn't find anything like that for less than $100.00 around here. I have been told to use Goop Hand Cleaner. Very good sewing machine cleaner. You need to post a picture of your other machine, I would love to see it. I am in the process of finding a hand crank Singer sewing machine to add to my collection.

  6. CarolineNH

    CarolineNH Out Of The Brooder

    61
    0
    31
    Sep 27, 2010
    Sandown, NH
    I've got a few - a 1914 or so Reliance treadle (from T.E. Eaton Co in Canada) - that one is another vibrating shuttle/ leaf tension machine. That's my *favorite* machine! I picked that up at a yard sale for $20, and it works so smoothly and easily! Also, a plain black Singer class 66 machine (it has a reverse!) that I put into a "parlor cabinet" to replace a non-working Singer Red-Eye - that one needs a new belt. (That's where I scavenged the belt to get the New Home machine running.) That was my most expensive machine - $150. I was willing to shell out that much because of that awesome cabinet! Also, a 1904 Singer "Sphynx" machine, that one is in my bedroom; and a Willcox & Gibbs chain stitch machine. That one needs a new tabletop on the treadle base.

    Those links are to blog posts with pictures and descriptions of those machines.

  7. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Very nice collection. I have nothing older than the 1890's. I like that Willcox and Gibbs chain stitch. It looks great for it's age, I know I wouldn't look half as good if I were as old as it. XD

  8. CarolineNH

    CarolineNH Out Of The Brooder

    61
    0
    31
    Sep 27, 2010
    Sandown, NH

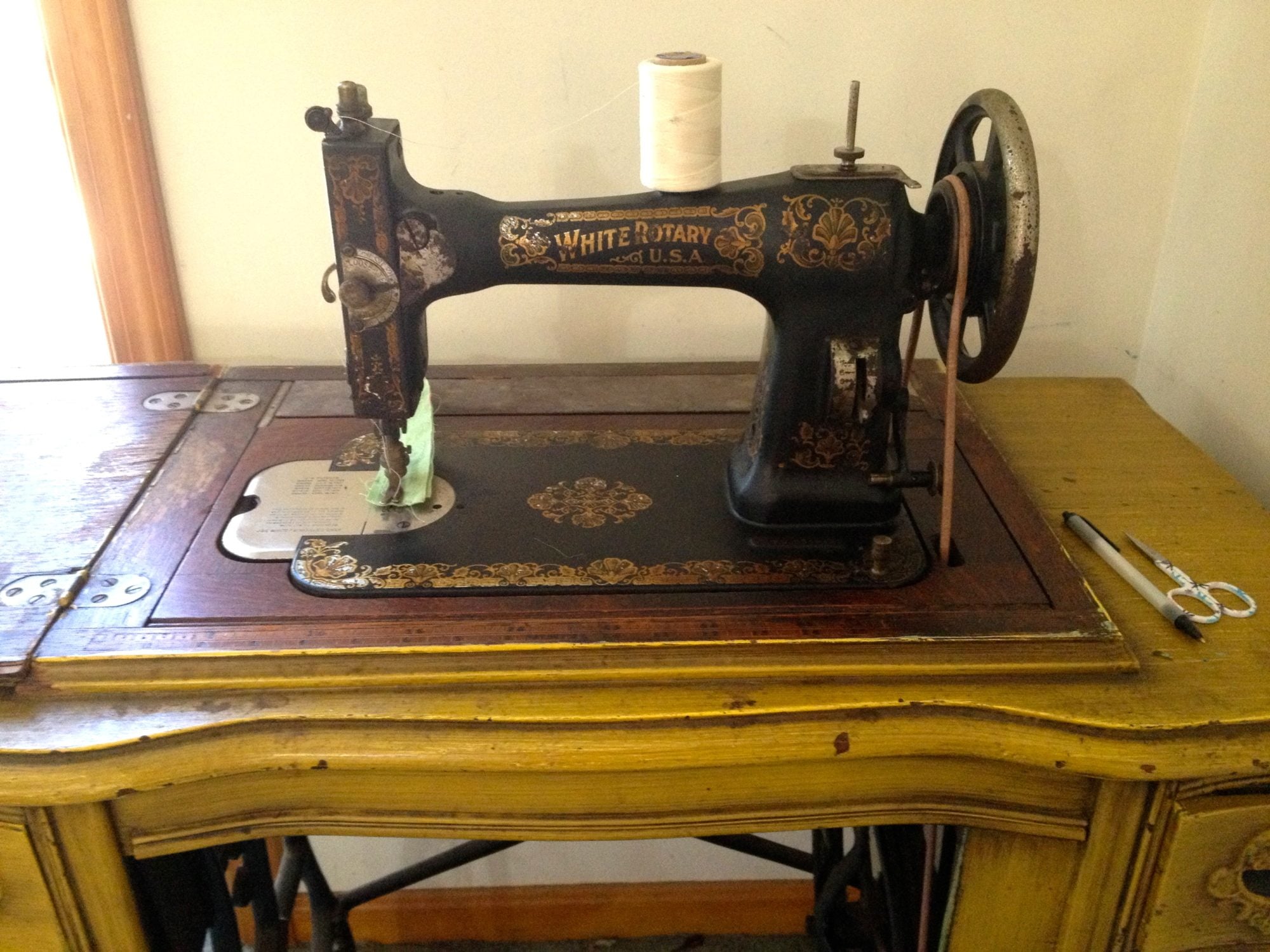

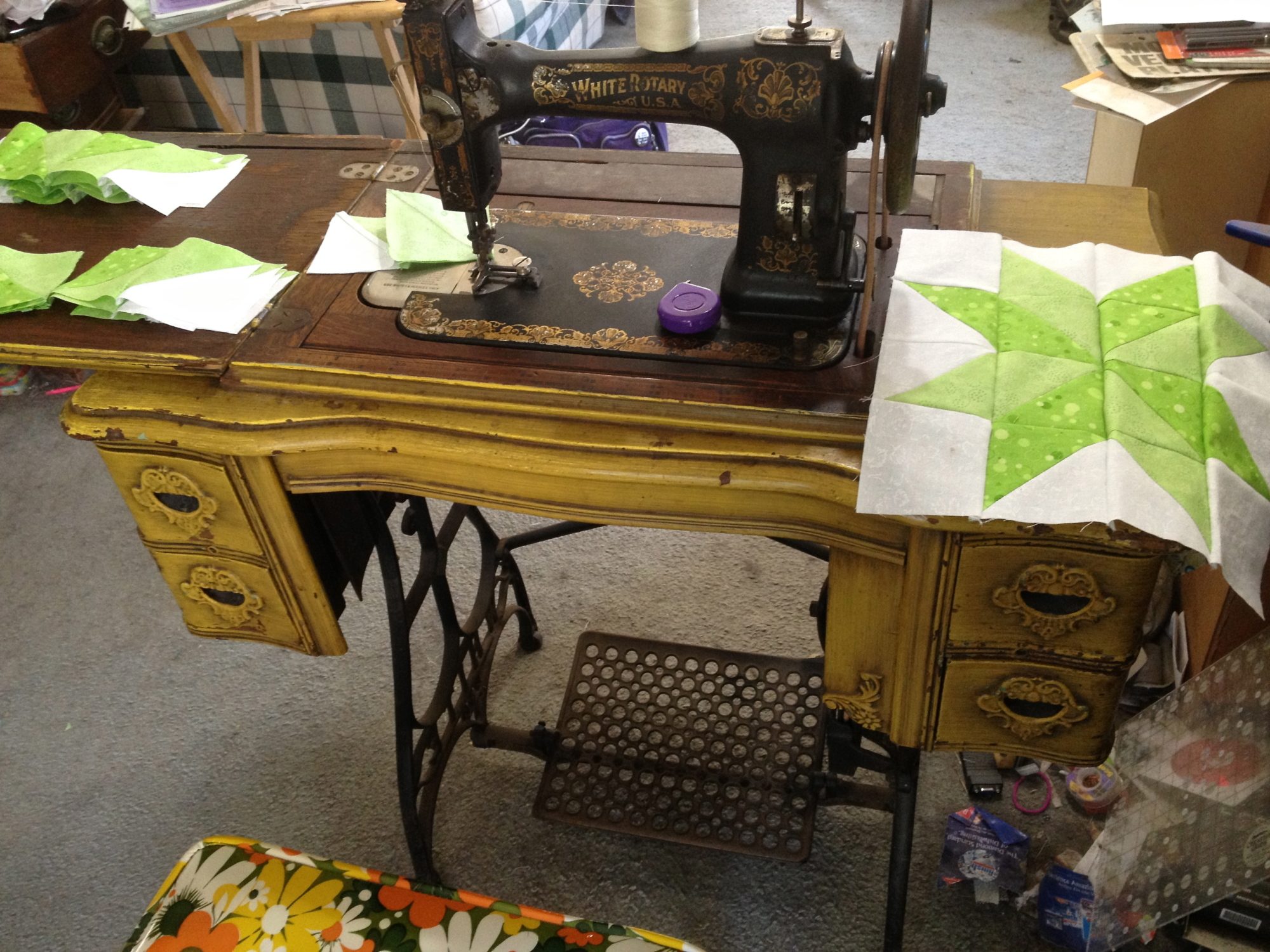

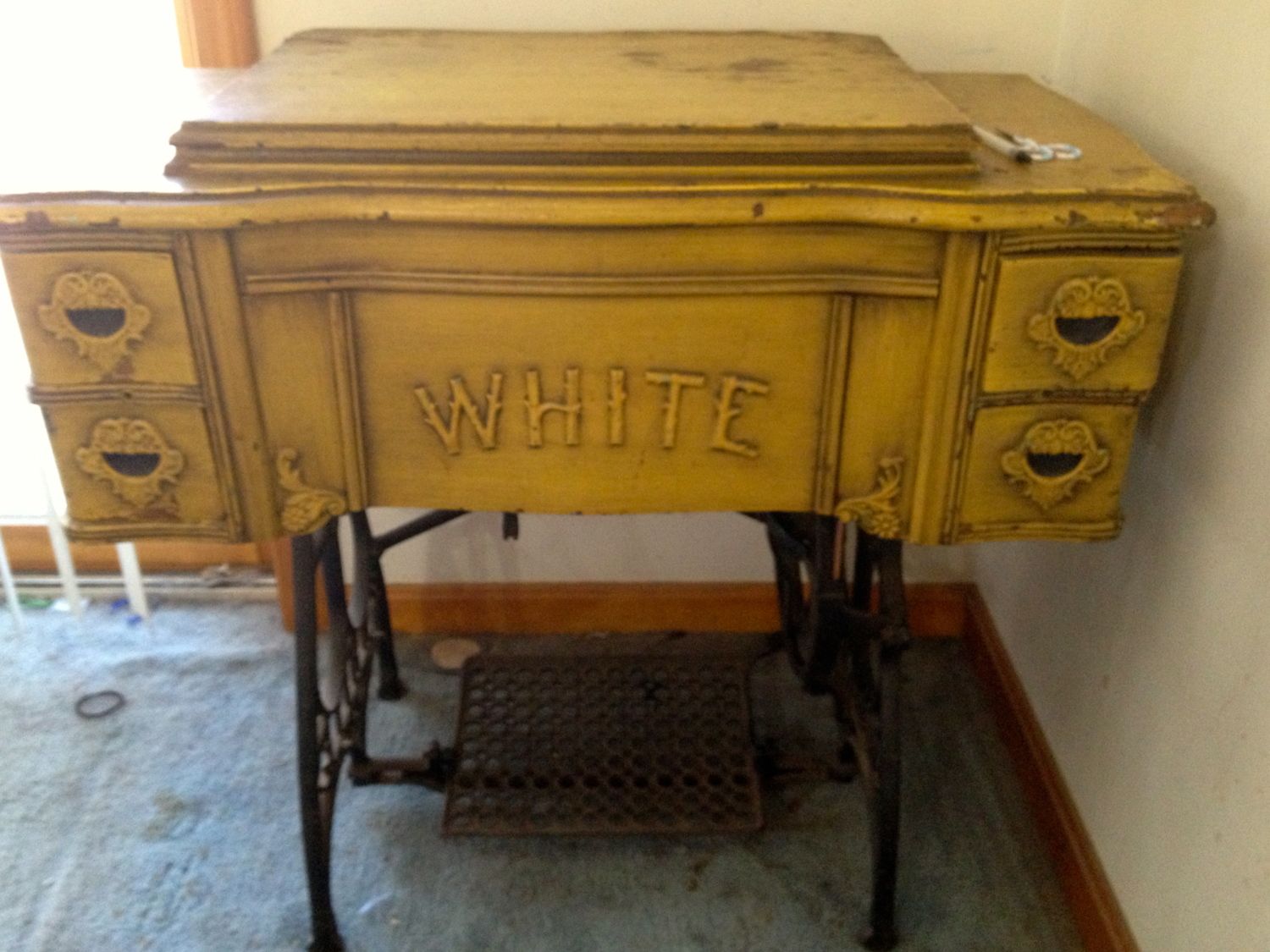

    Another one followed me home last weekend. This is a White Rotary, circa 1913. Came with 3 bobbins (and bobbins are still available!), and takes standard needles! Sews beautifully!

    [​IMG]

    [​IMG]

    [​IMG]

  9. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Ooh la la, that looks really great. Surprised that it isn't a vibrating shuttle, during that time, most all that you could find were vibrating shuttle machines.

  10. quintinp

    quintinp Chillin' With My Peeps

    2,069
    12
    171
    Oct 22, 2010
    Southern Oklahoma
    Duh, nevermind, of course it isn't vibrating shuttle, it's even called a White (Rotary) sewing machine. Had to stop and think for a second.
