    Ok now that those finally loaded I can show the pictures of the brooder that I built for our new arrivals coming on Friday.

    I copied this from https://www.backyardchickens.com/a/amferro103s-homemade-chicken-brooder. I wish I could take credit for it but I just wasn't feeling like re-inventing the wheel so to speak. I did make a few very minor modifications to this mostly in the manner of construction. Like the original it is a two piece design for easy of cleaning and storage and what not.

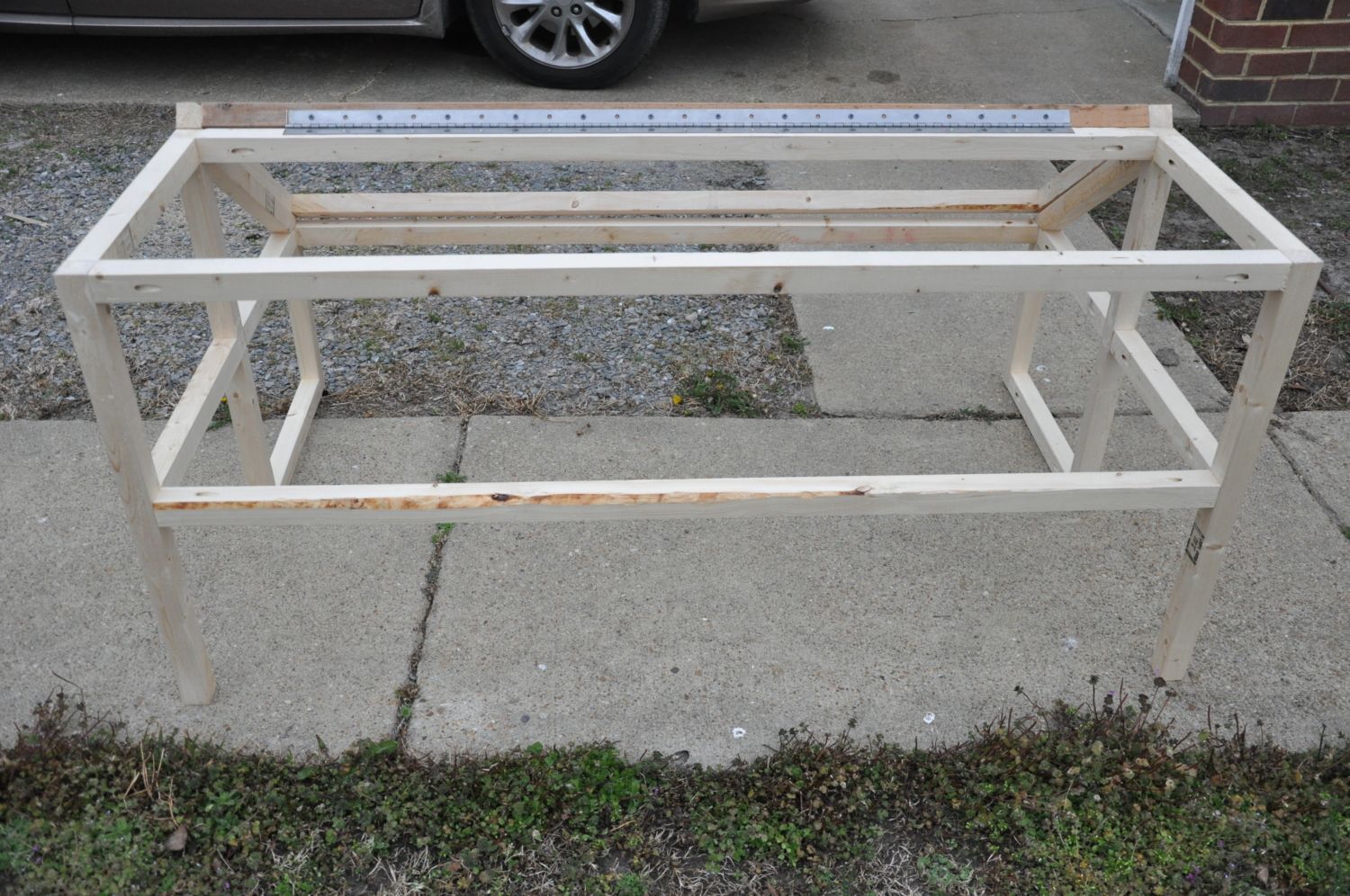

    view of the fram from the front
    [​IMG]

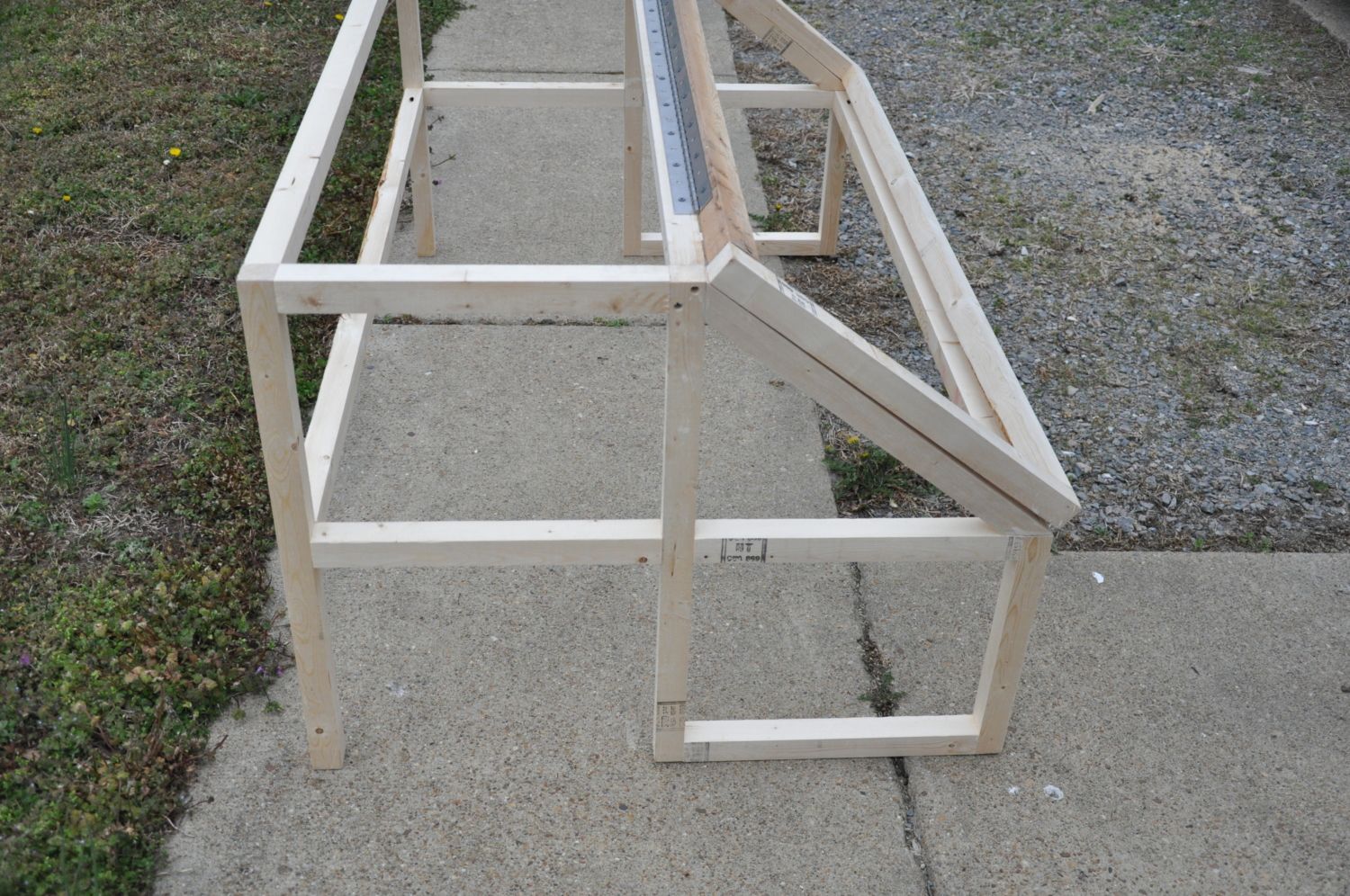

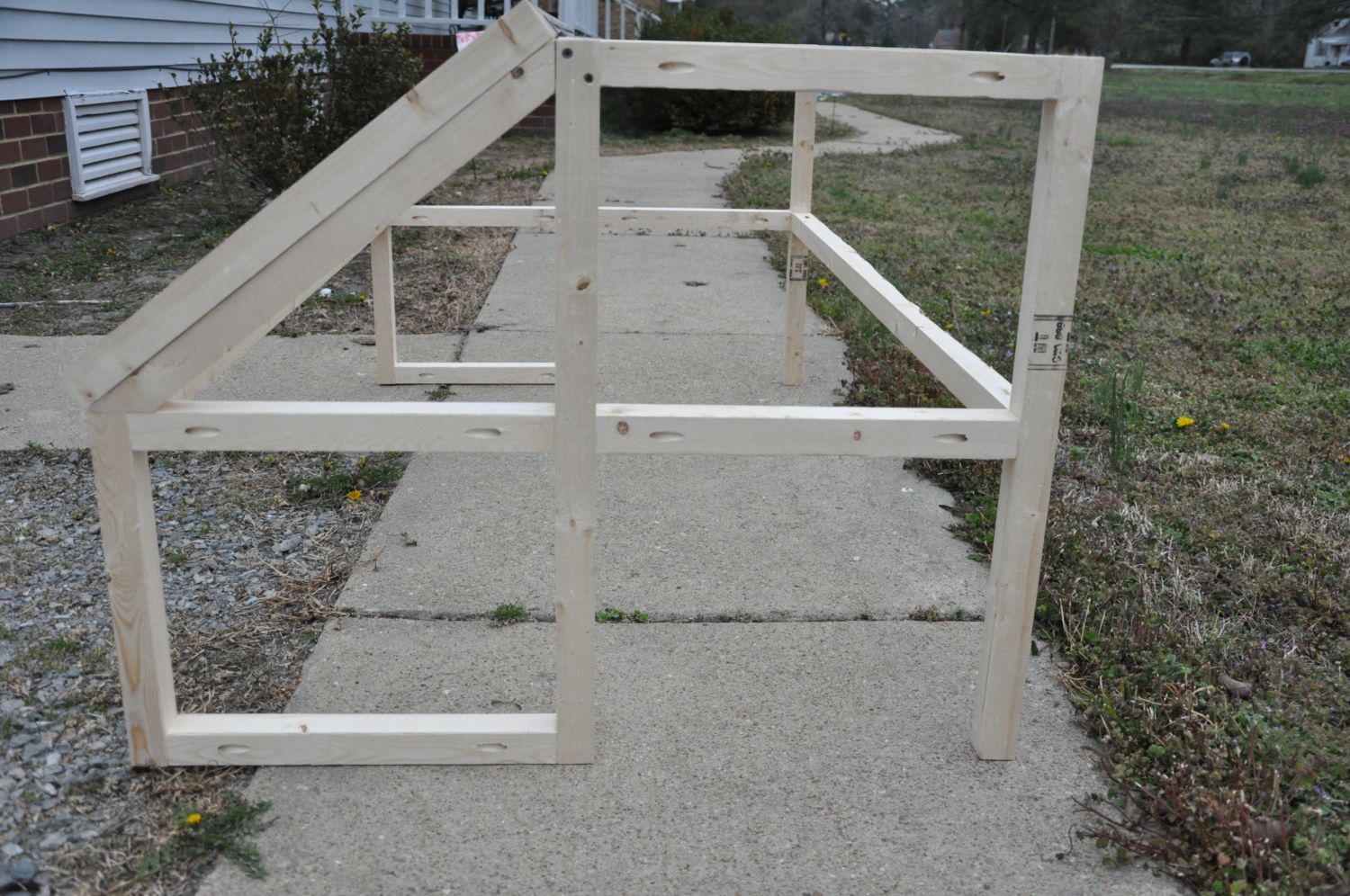

    Here is a side view notice the frame is assembled with kreg pocket joint screws. I find these to invaluable to speed things up and make nice solid joint there is also wood glue inbetween every joint for added strength.
    [​IMG]
    back side
    [​IMG]

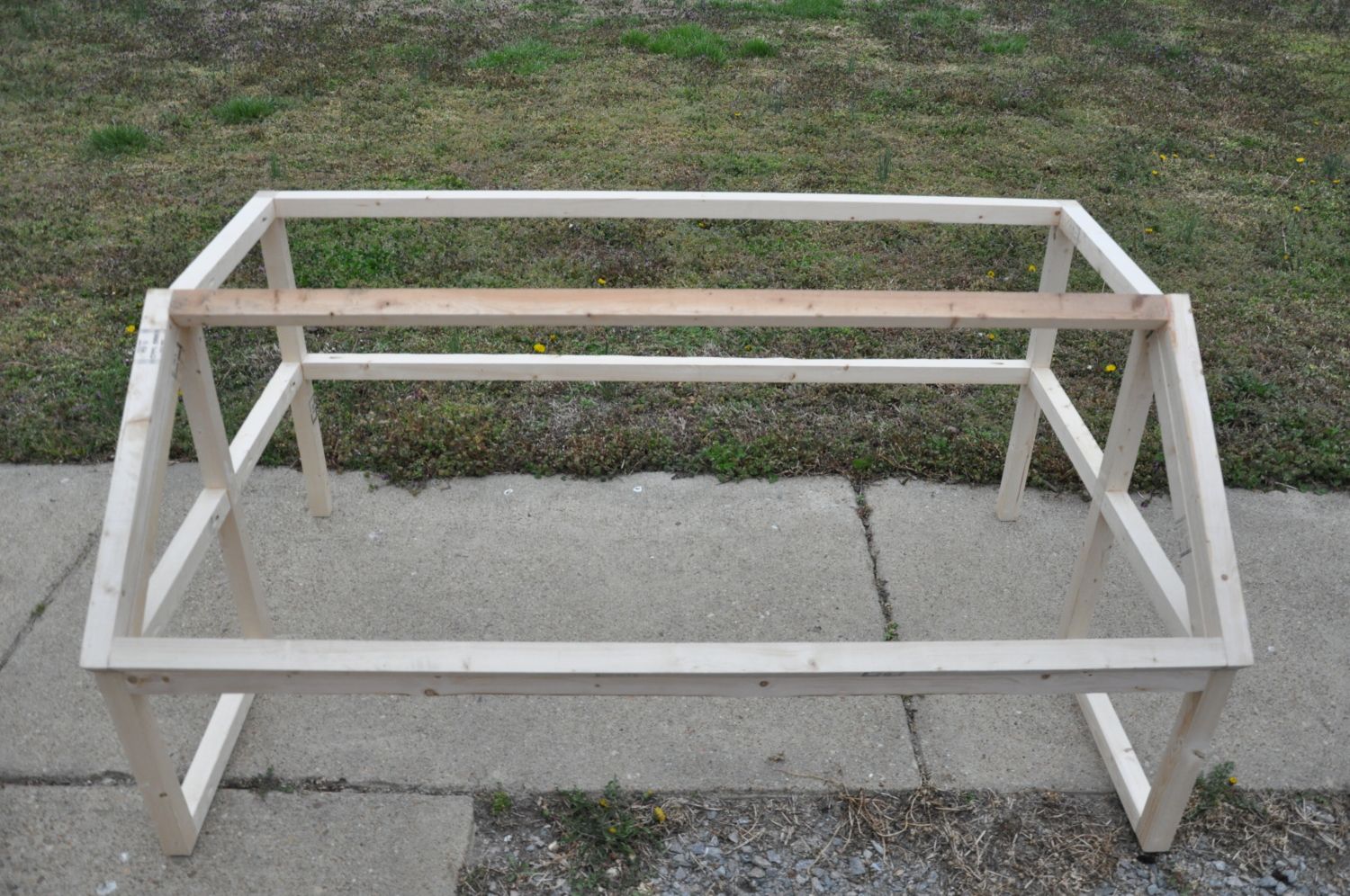

    top and side
    [​IMG]
    side view with overall dimension 36"
    [​IMG]

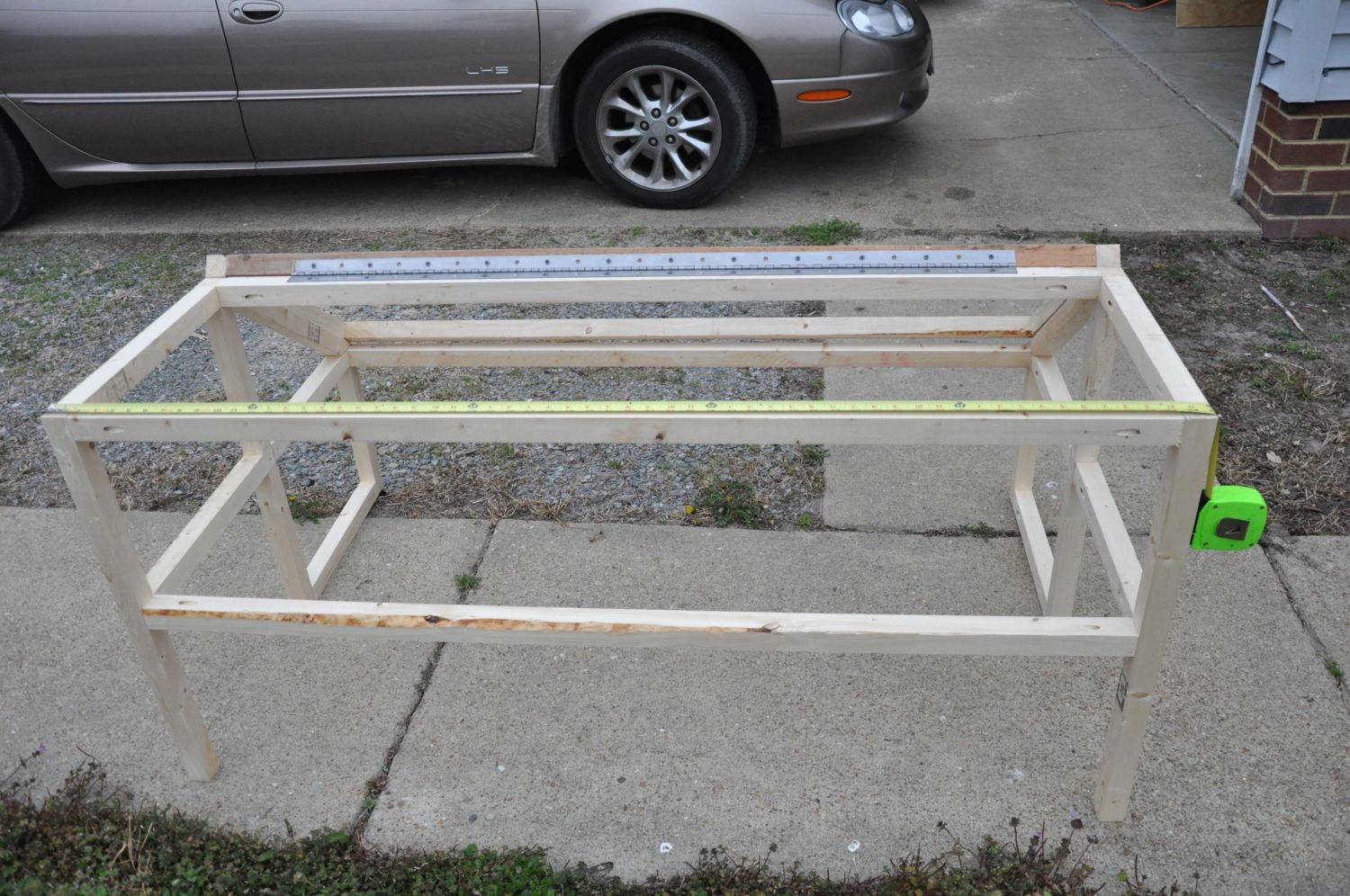

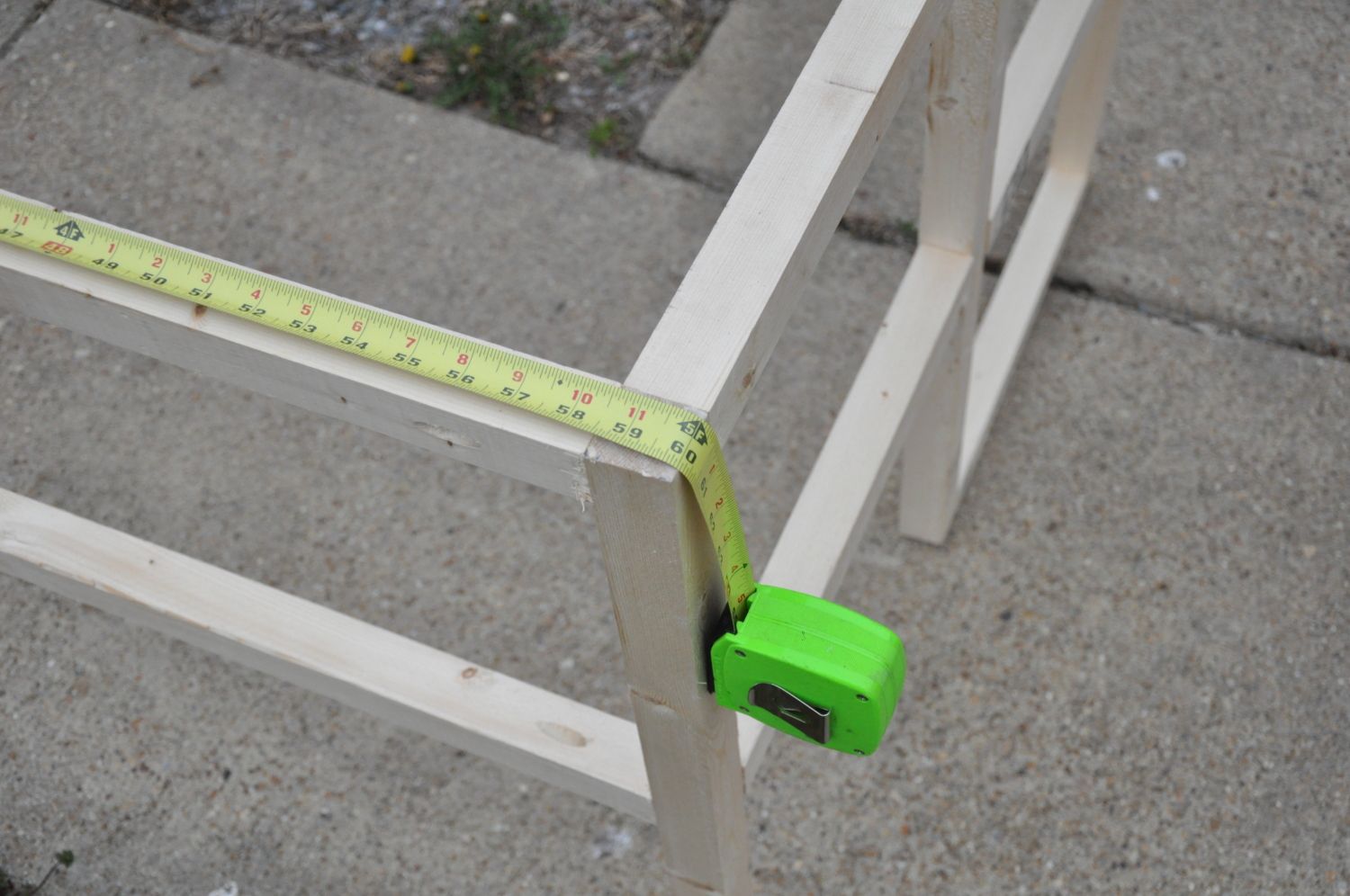

    length is 60"
    [​IMG]
    somewhat better close up
    [​IMG]

    [​IMG]

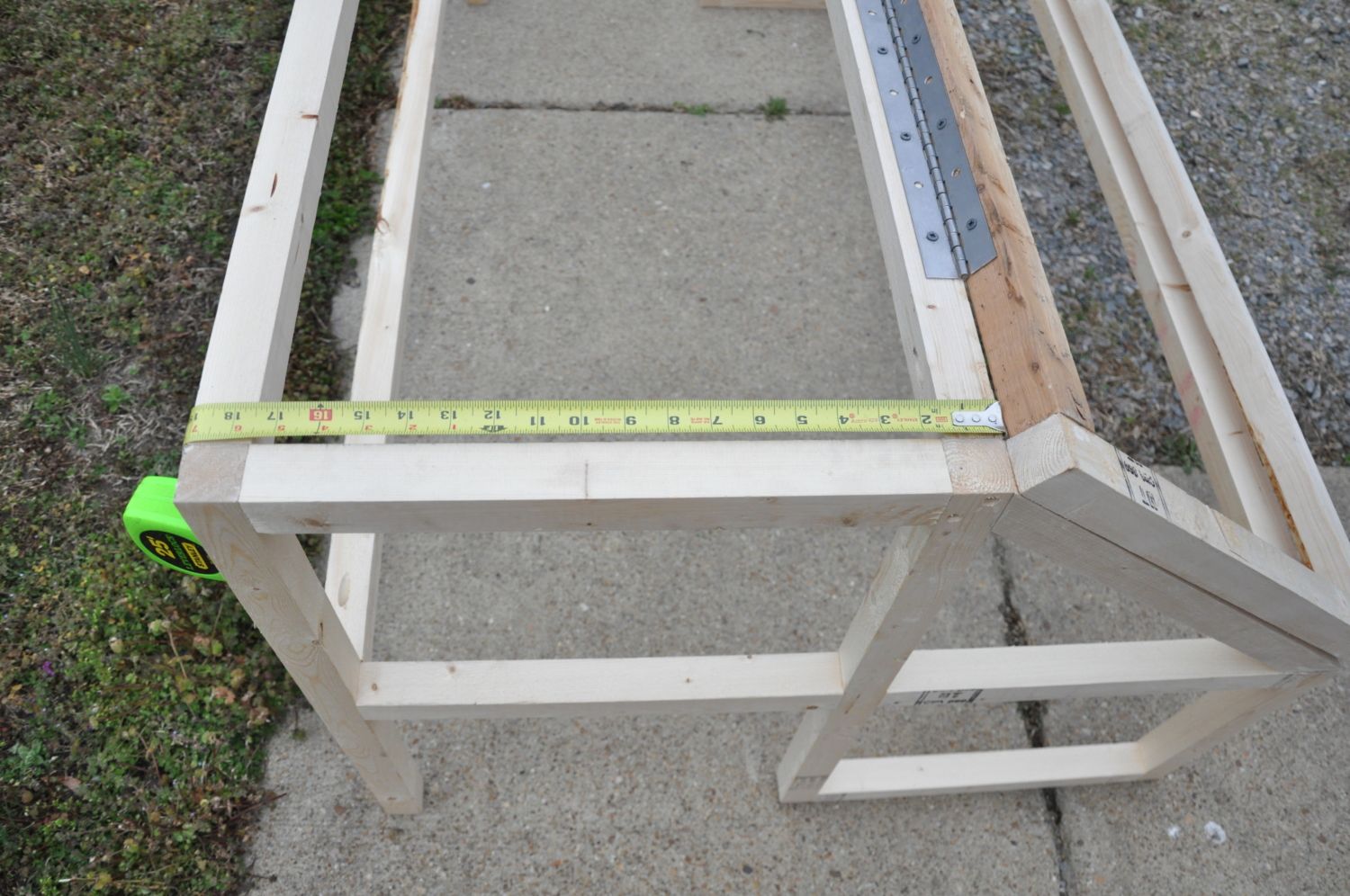

    top frame to access lid 19"
    [​IMG]
    slightly closer view
    [​IMG]

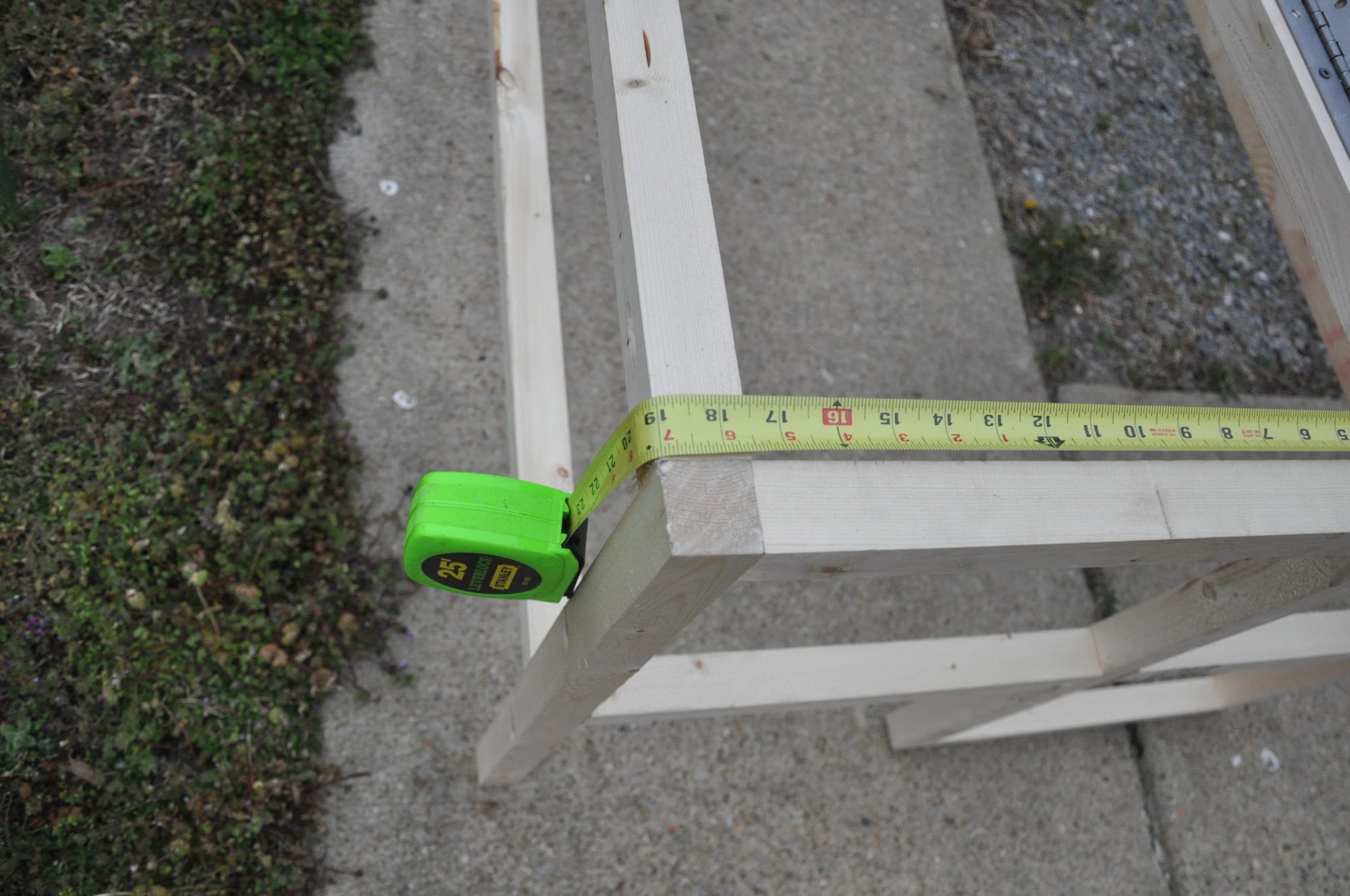

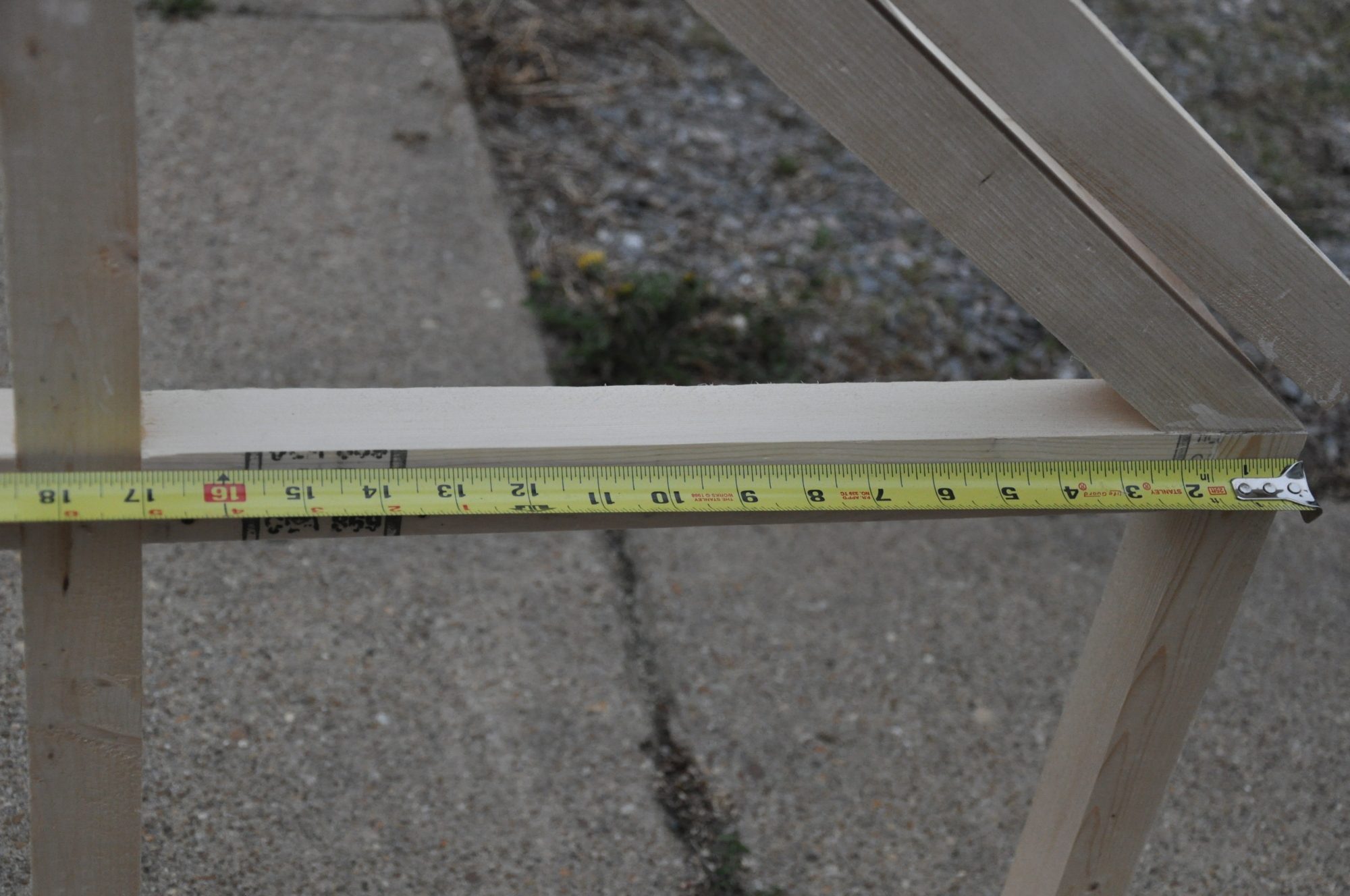

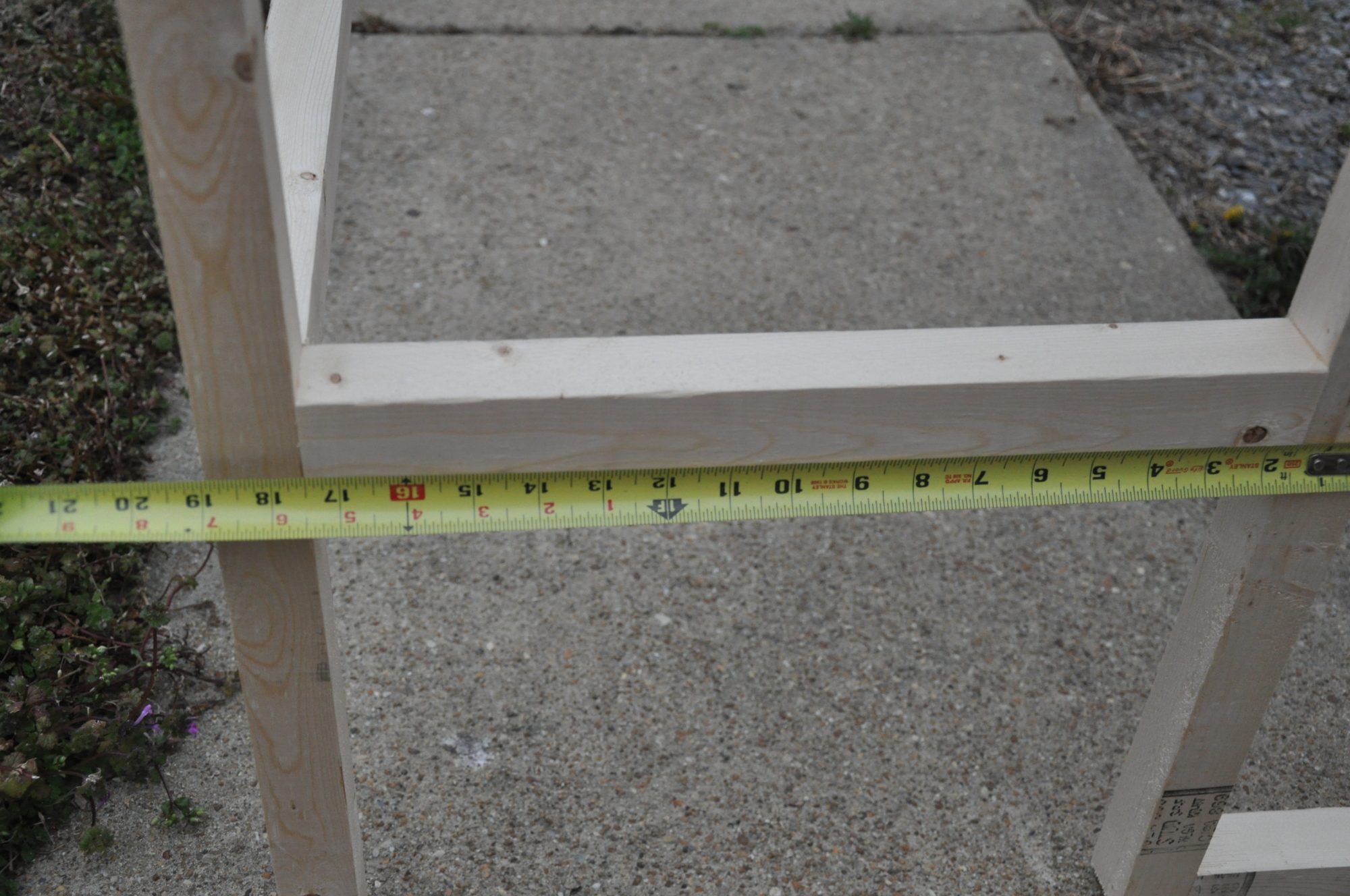

    horizontal measurement from front below door
    [​IMG]
    from front vertical rail by door to rear vertical
    [​IMG]

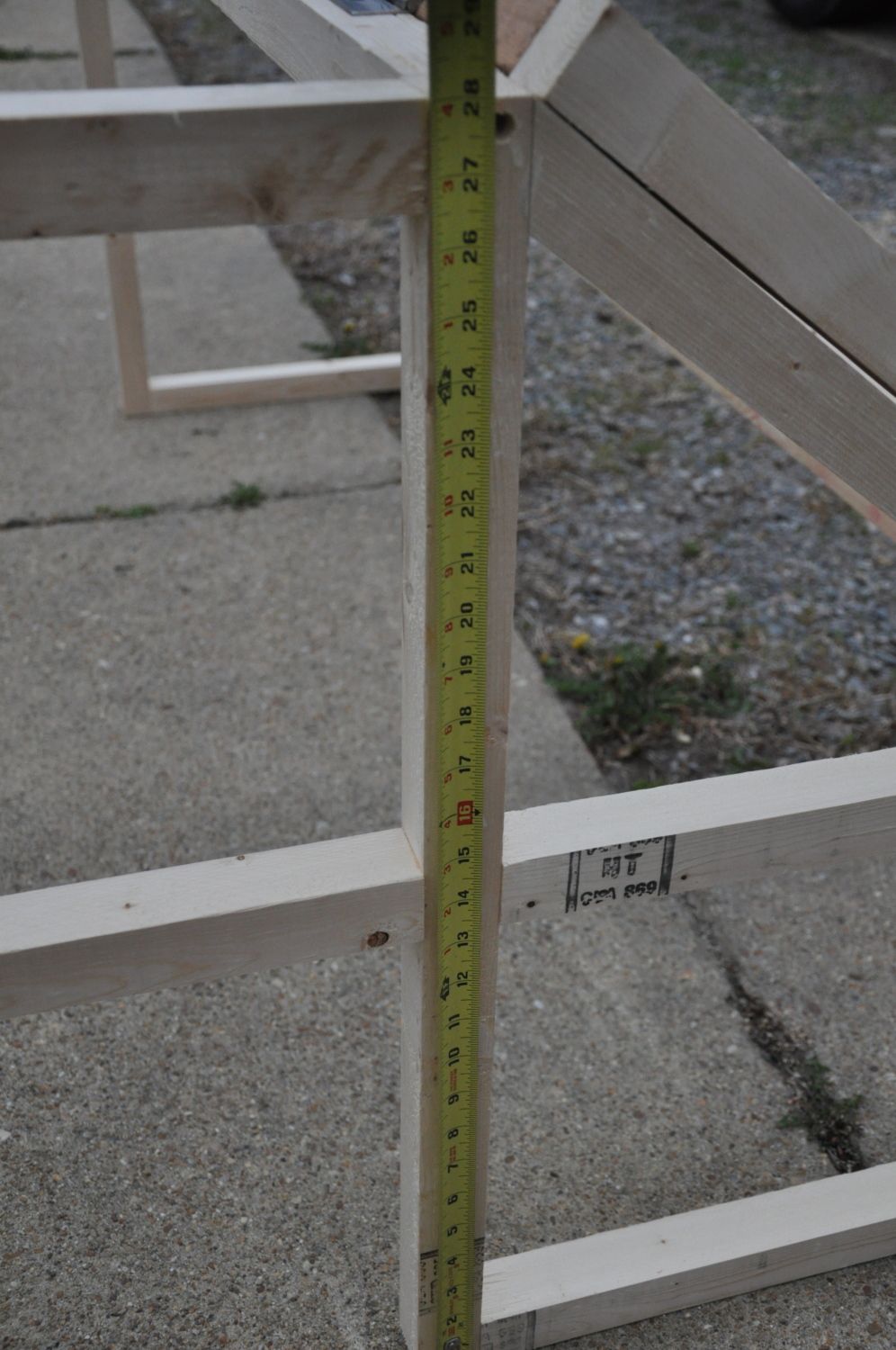

    overall hieght
    [​IMG]

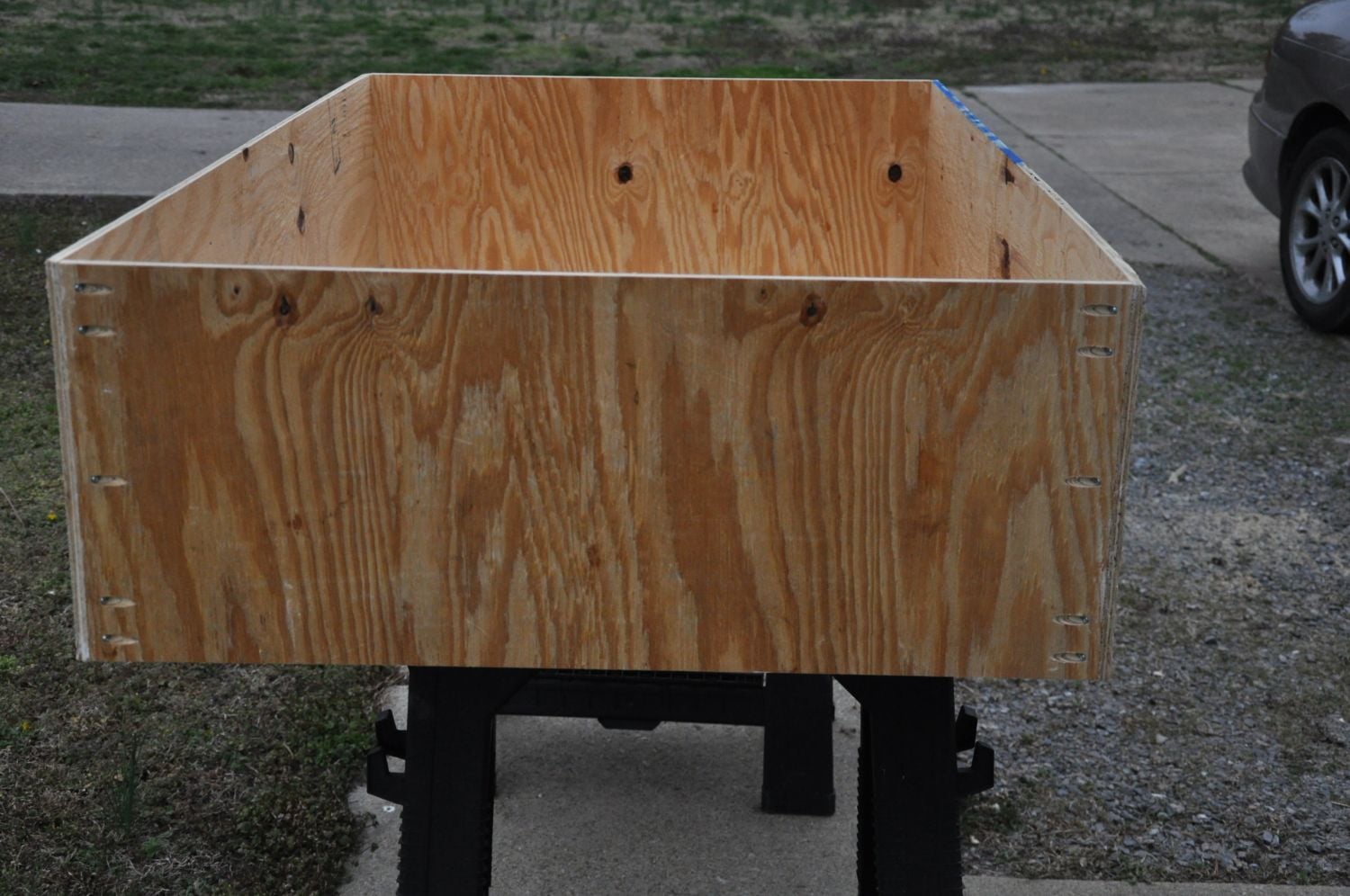

    the box that the fram cage sits in
    [​IMG]
    another view its 5/6th of box woohoo
    [​IMG]

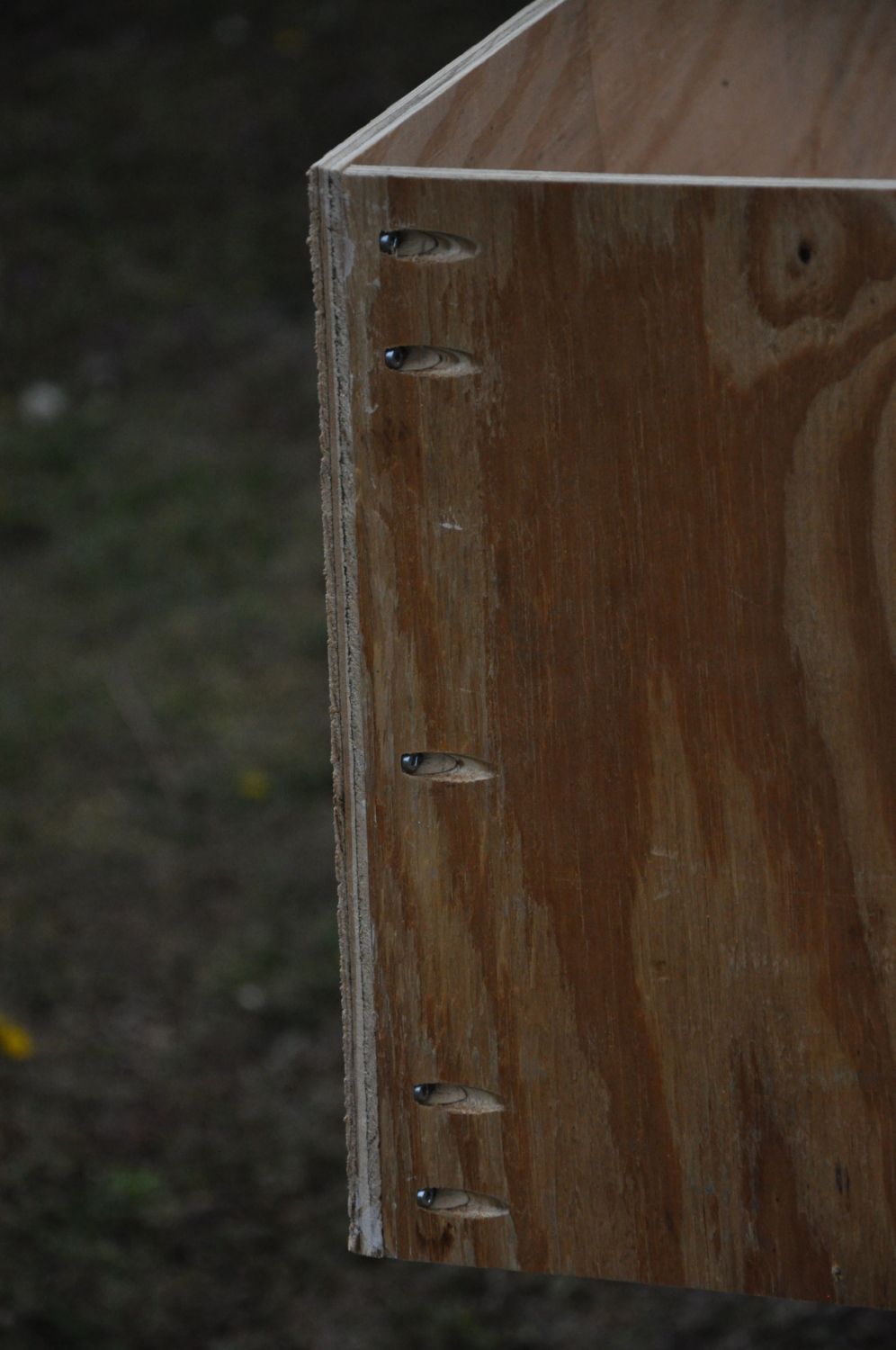

    close up of the kreg pocket joints. I cannot stress just how much I like this simple tool
    [​IMG]

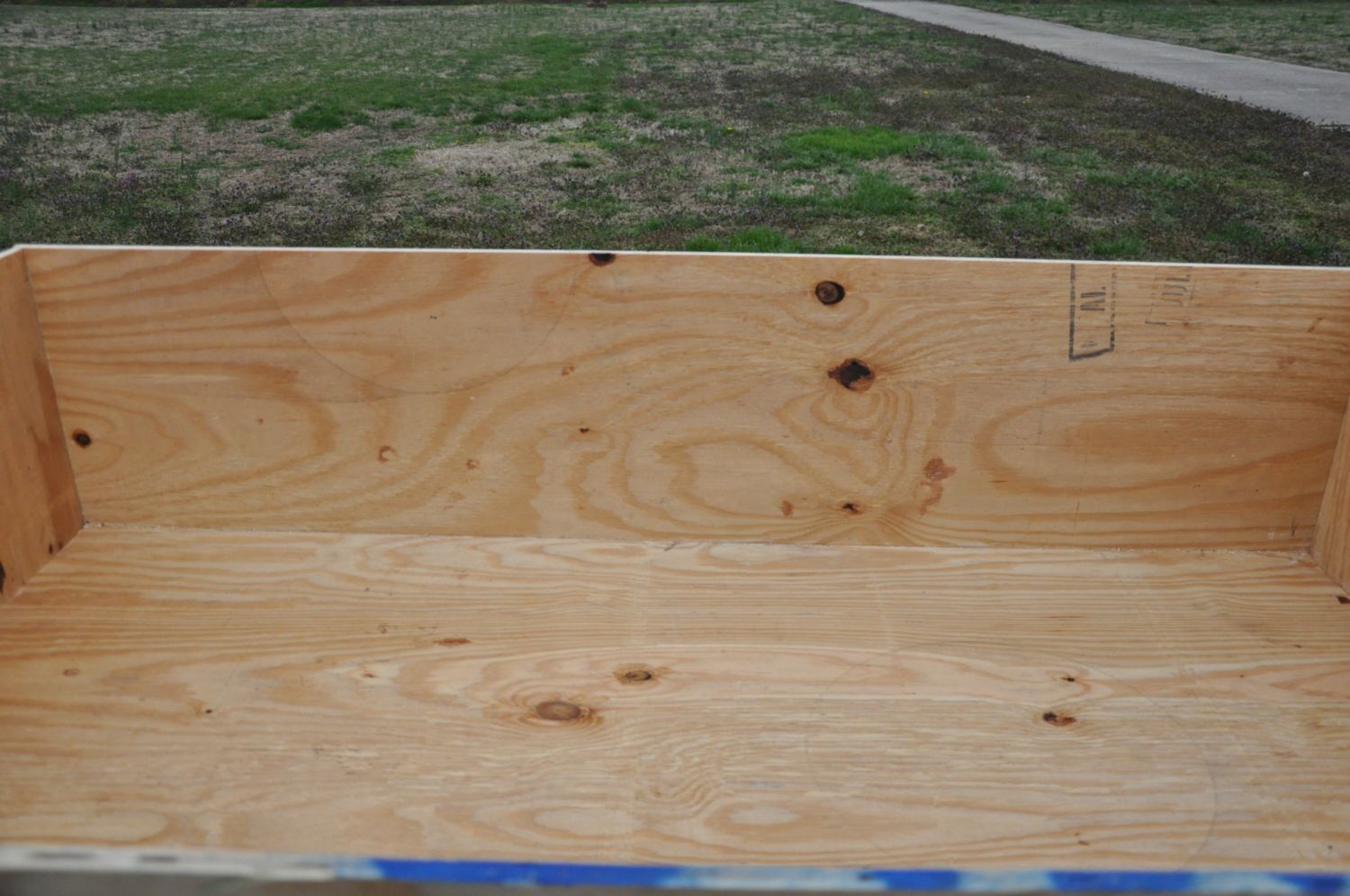

    inside of box
    [​IMG]
    and another I snapped a lot of photos and threw them all in
    [​IMG]

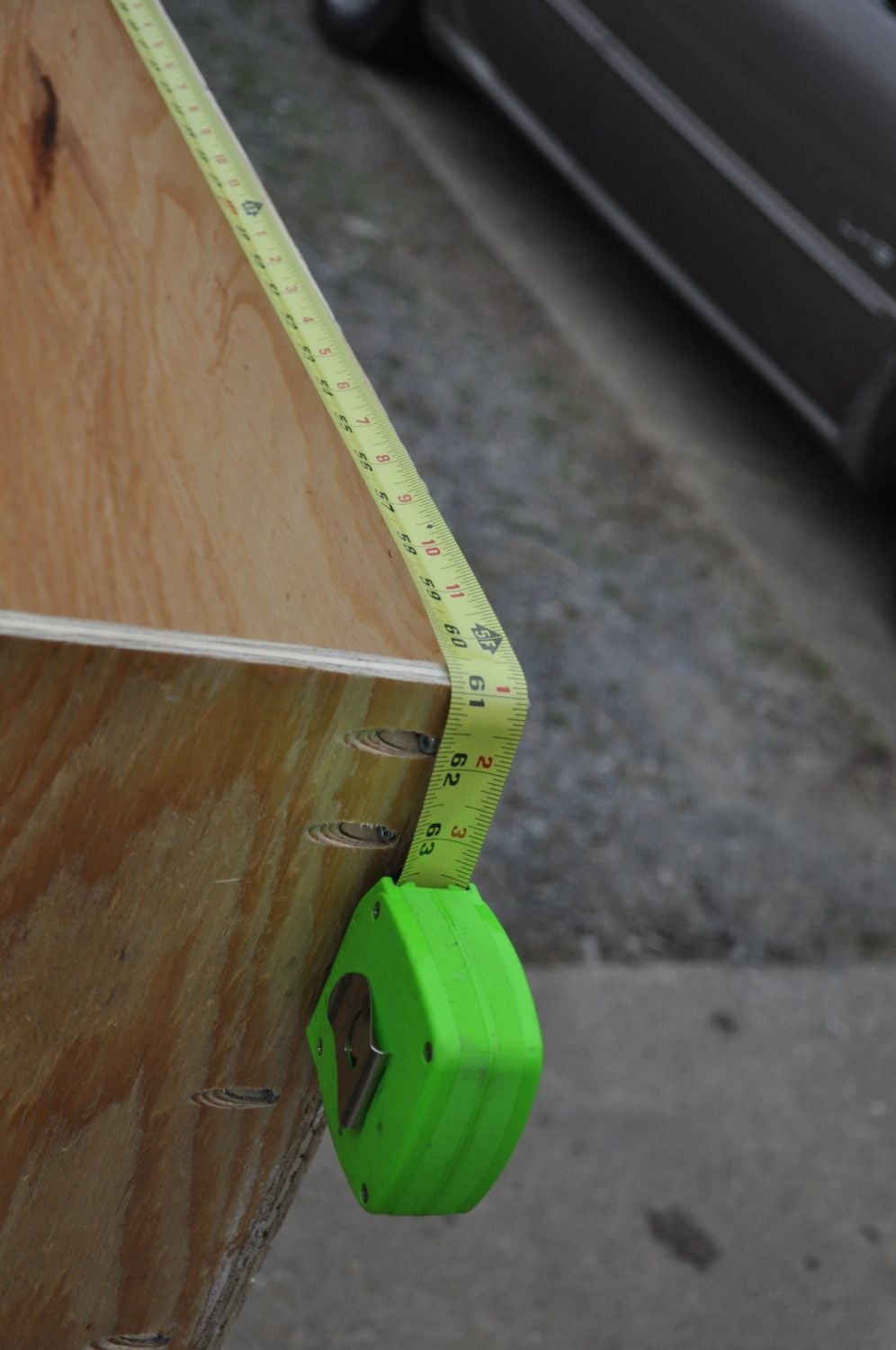

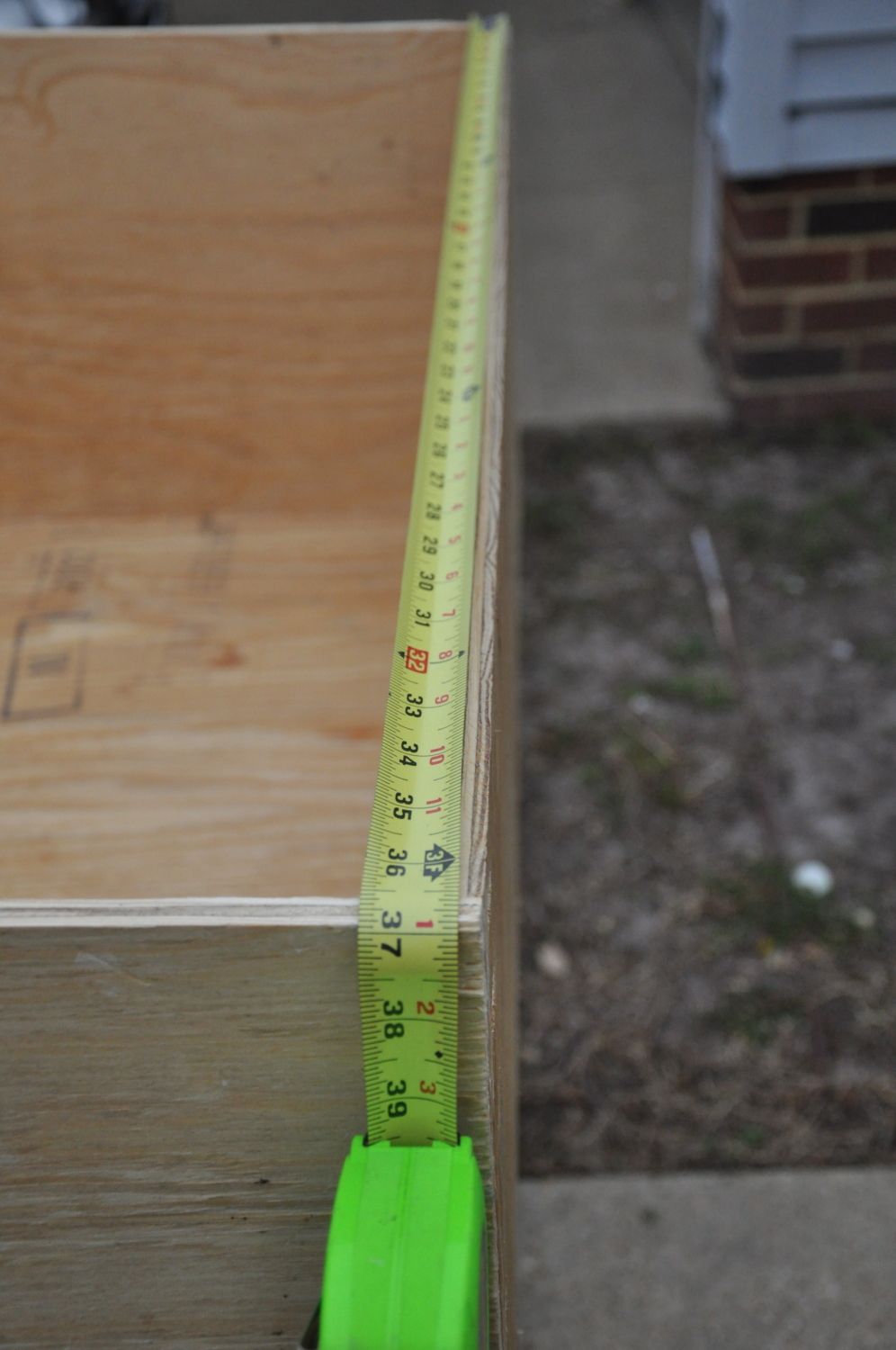

    overall outside dimension is 61" by 37" inside is 60" by 36"
    [​IMG]
    close up
    [​IMG]

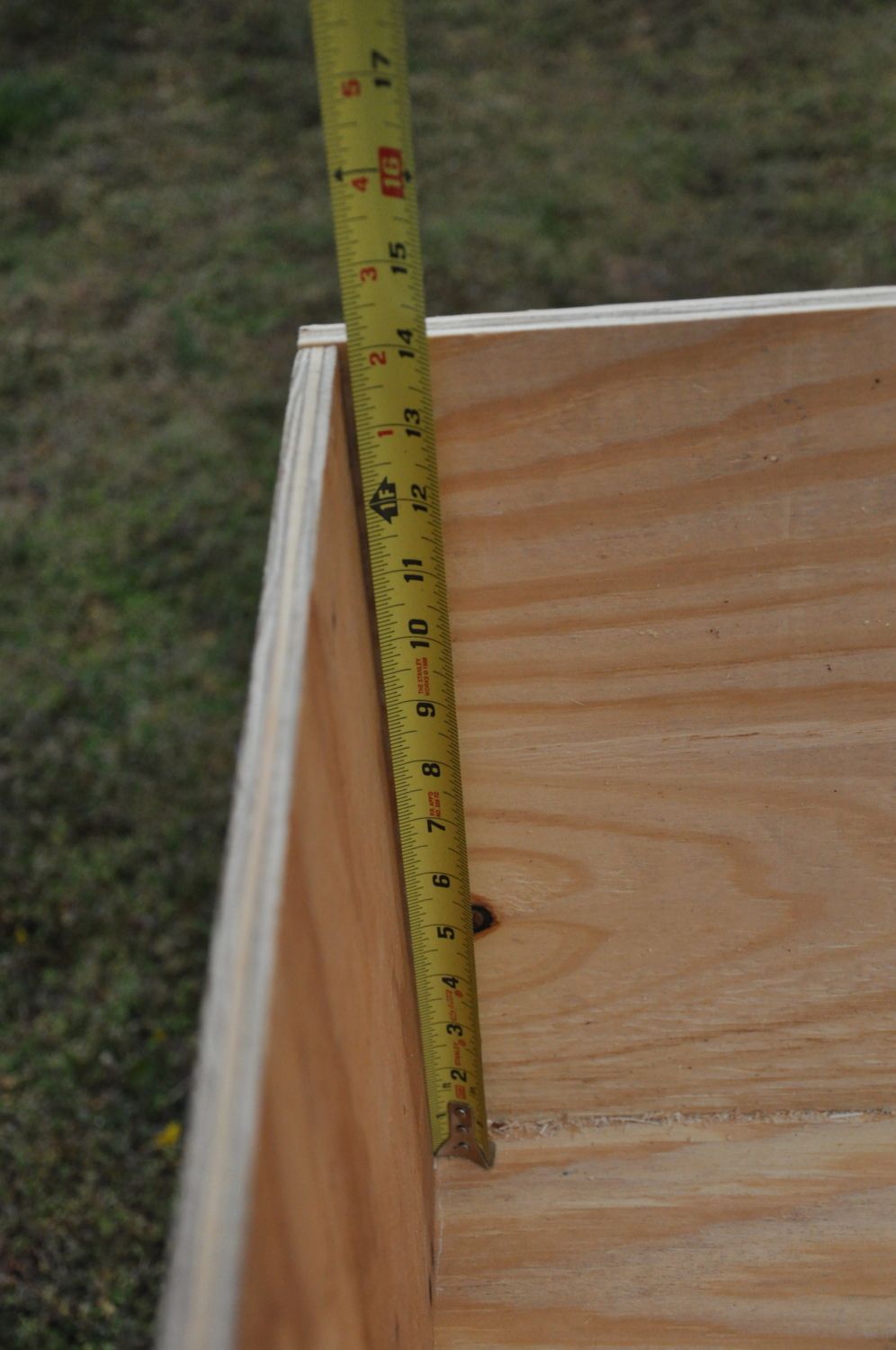

    inside height is 14"
    [​IMG]

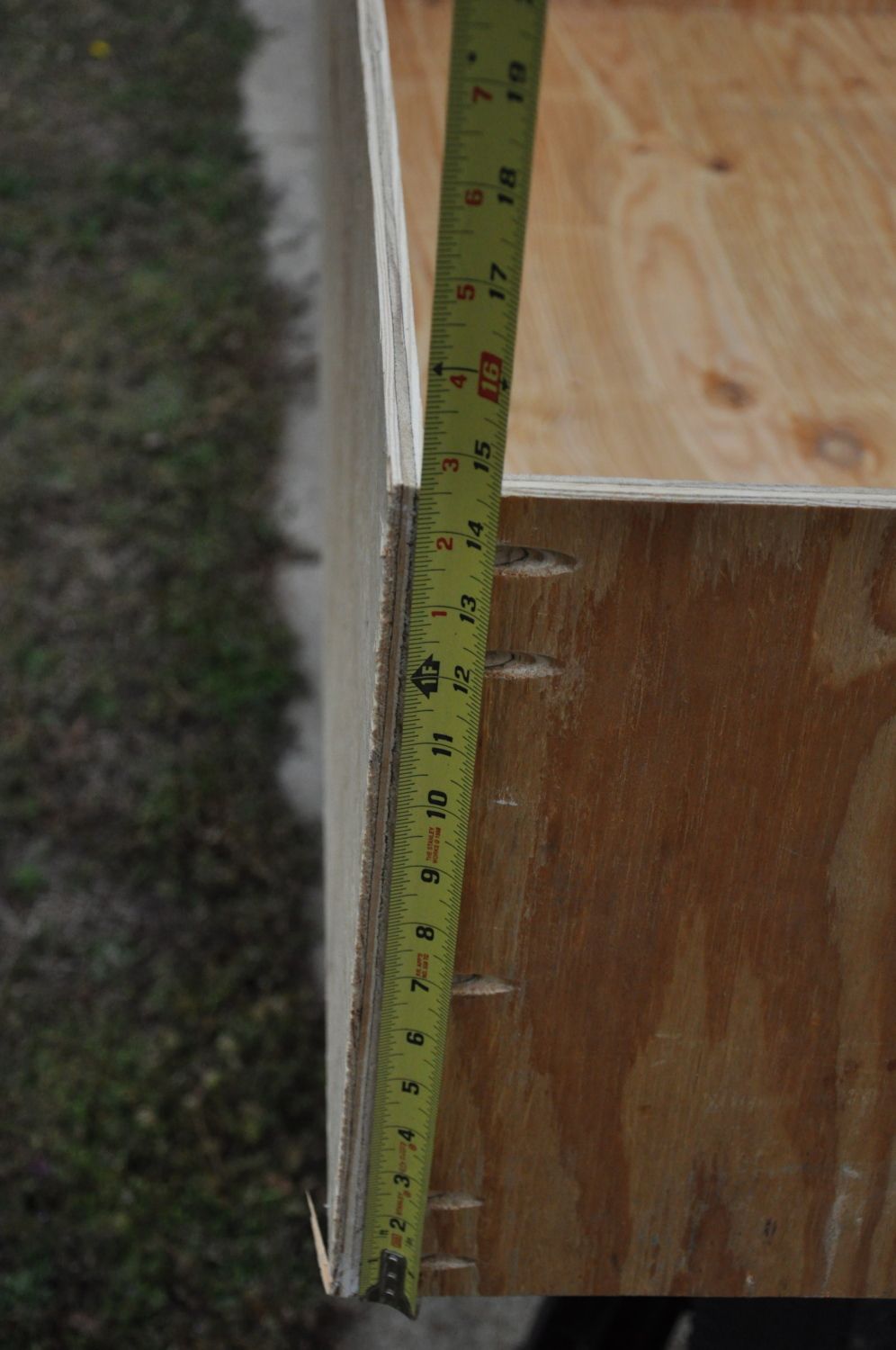

    outside is 14.5"
    [​IMG]

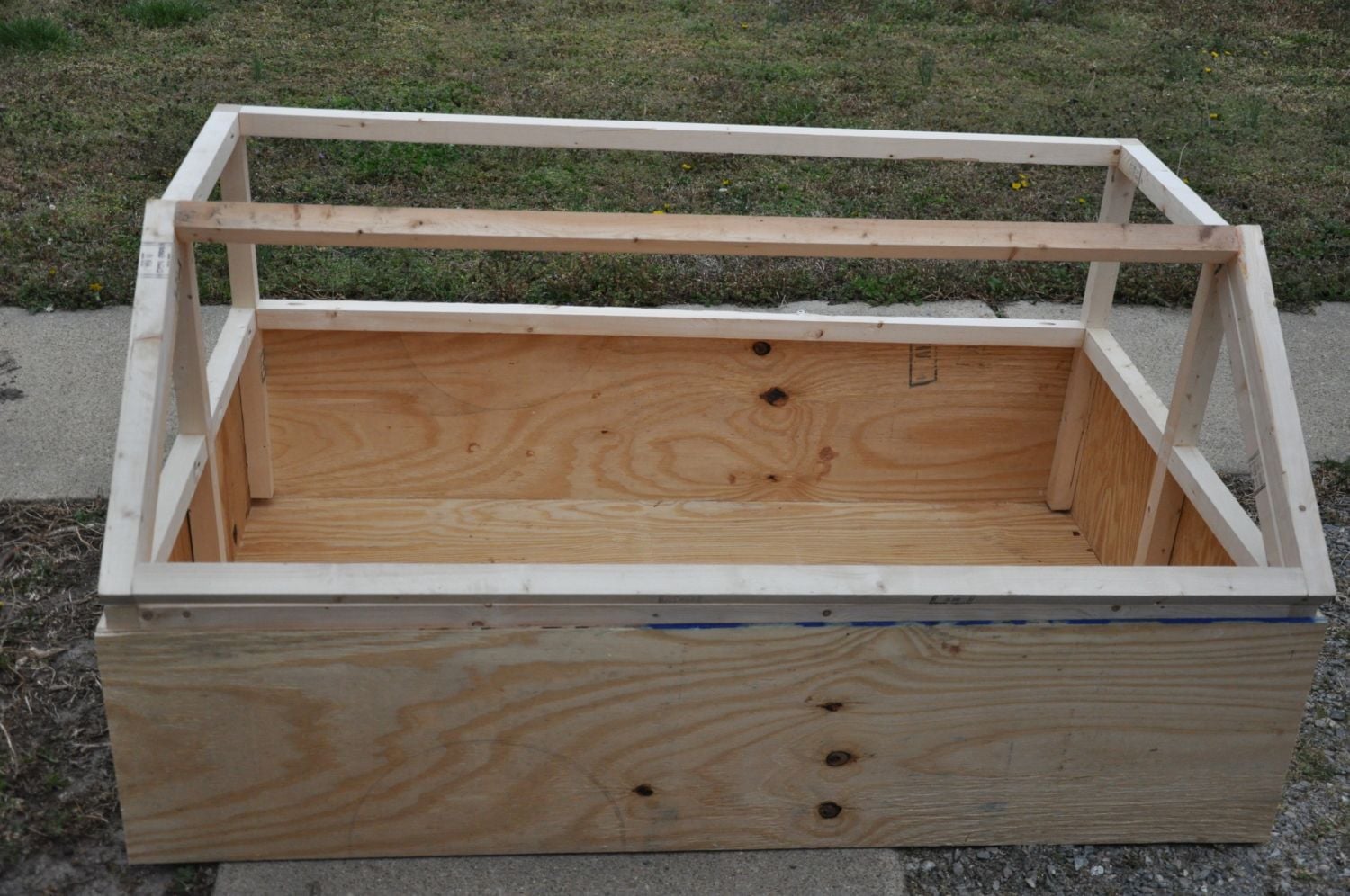

    Everything fits nice and snug
    [​IMG]

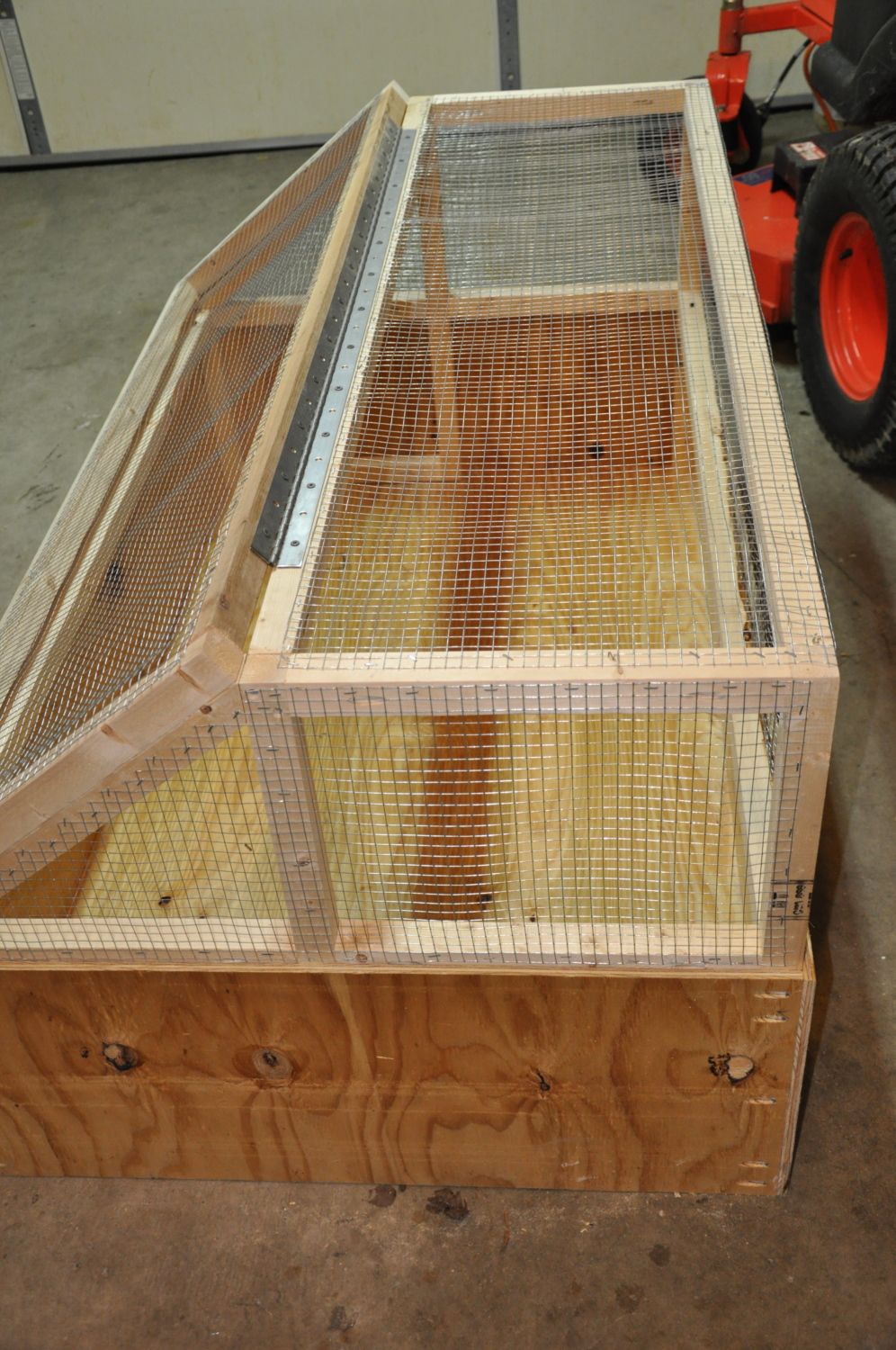

    full length strap / piano hinge for strength. Notice where the lid secures to the front horizontal member I added two screws counter sunk to prevent it from twisting just a little added security
    [​IMG]

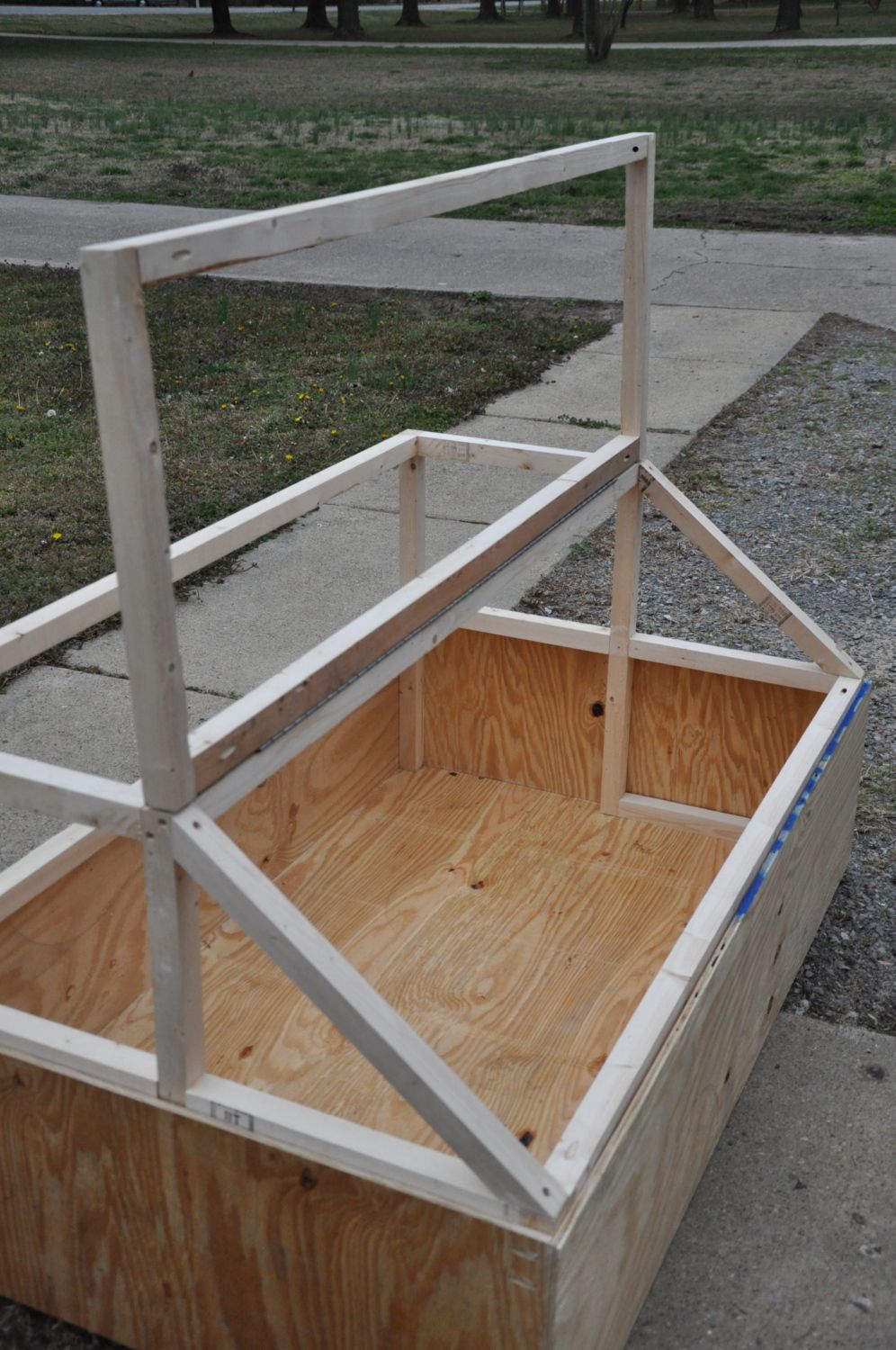

    with the door open
    [​IMG]

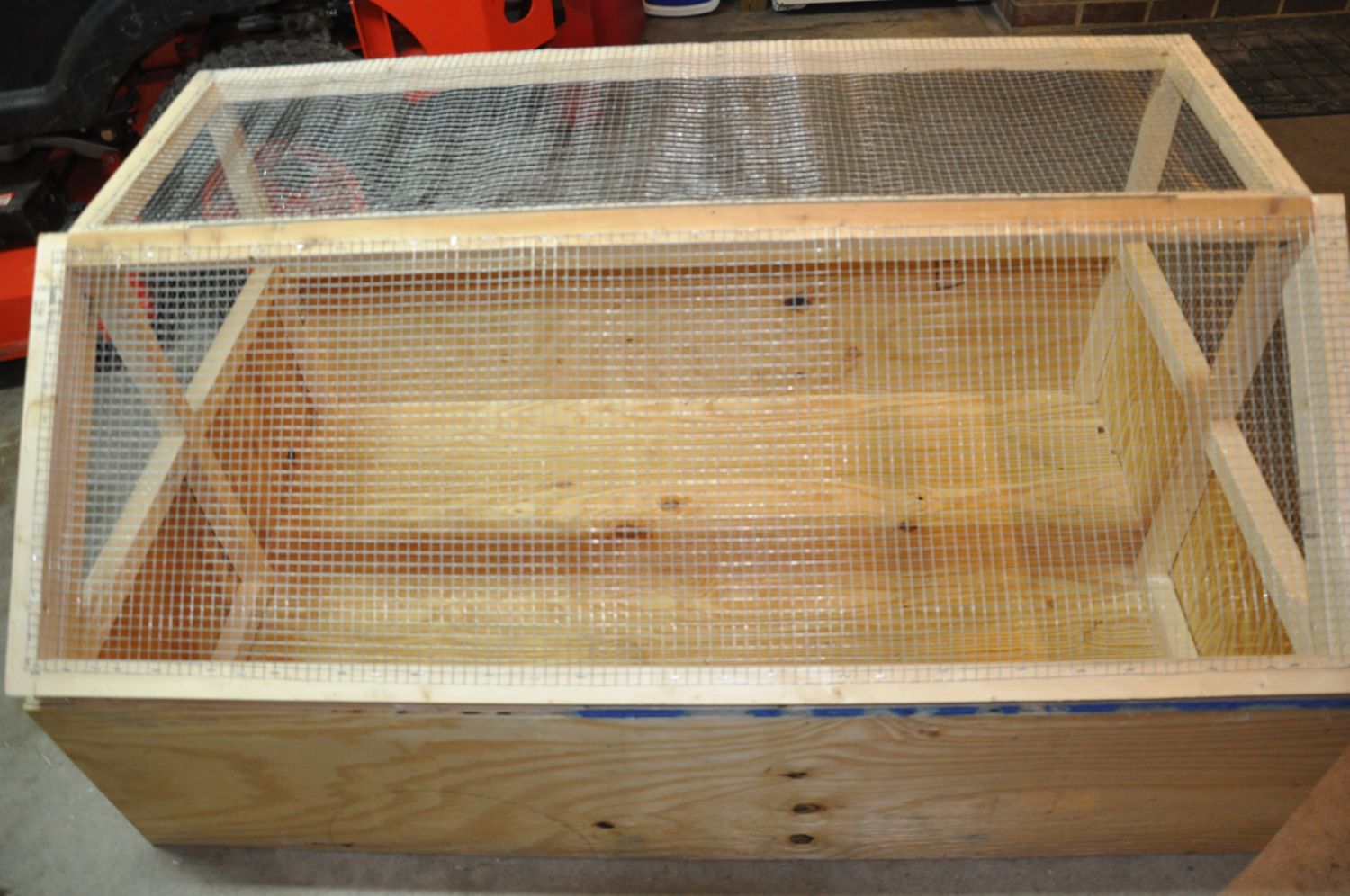

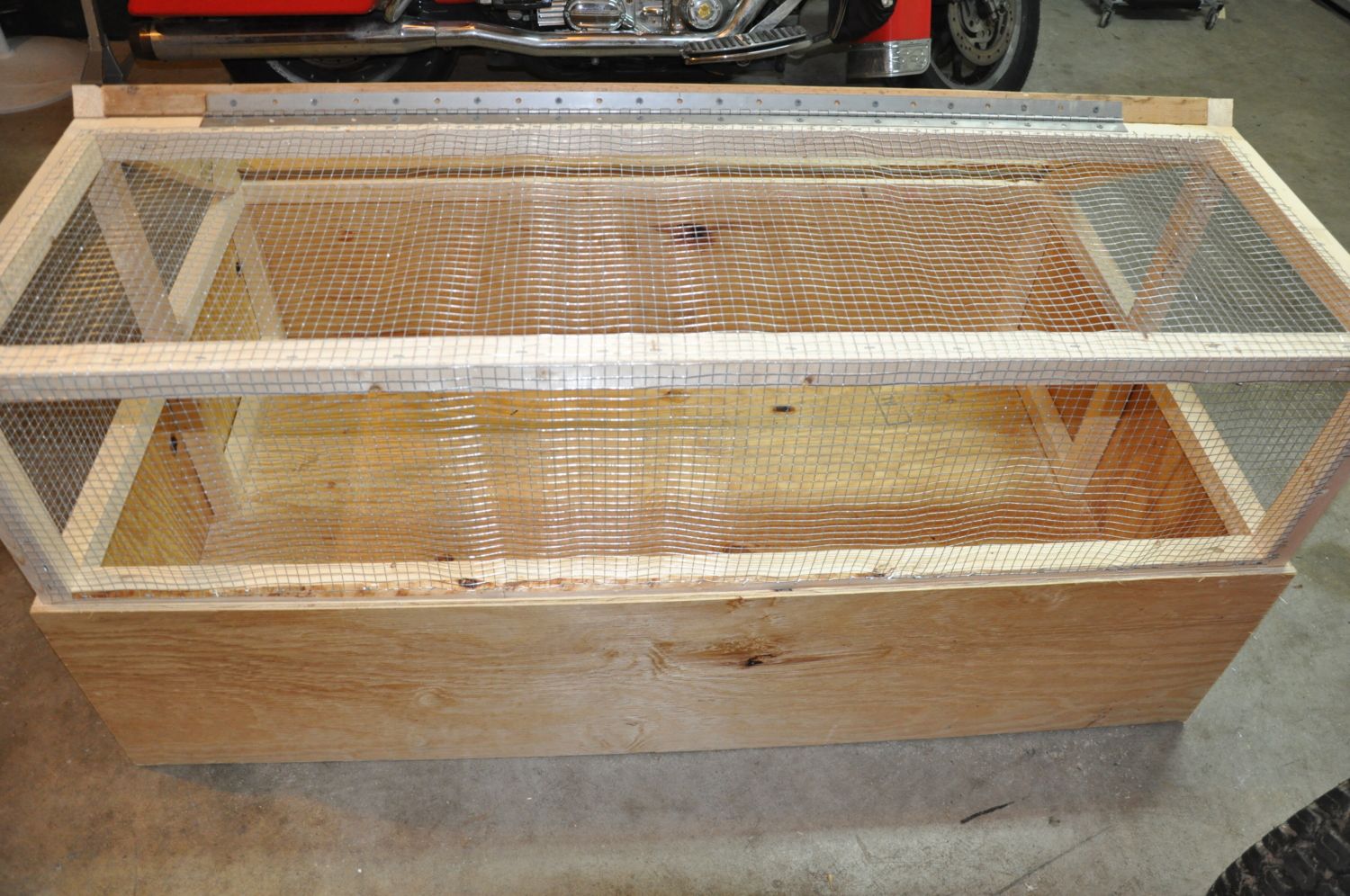

    all screened in with 1/2" hardware cloth I used one 36" by 10' roll to screen the whole thing.
    [​IMG]

    [​IMG]
    Total of materials. 2 4' by 8" plywood sheets, 8 2x2's (1.5" by 1.5" one side is slightly larger make noter during layout or it will not fit snug) also make sure that pay attention to your boards when you cut. 8 is enough but i got carried away and did not have one piece long enough for the lid ended up ripping an old 2x4 to complete. and a handfull of the kreg 1.5" pocket hole screws. thanks for looking.

  2. CluckAcres

    CluckAcres Chillin' With My Peeps

    1,165
    58
    153
    Nov 20, 2012
    Silver Lake, Indiana
    Looks good. Show us pics with chicks in it when you can.

  3. brezlynsmom

    brezlynsmom Out Of The Brooder

    88
    3
    41
    Dec 26, 2010
    Eastern Iowa
    Very nice

  4. CHRISNDAWN

    CHRISNDAWN New Egg

    8
    1
    9
    Mar 24, 2013
    Southeast va
    UPDATE: We got the call a day early that our Chicks had arrived [​IMG]. What Beauties they are! Here are a few pictures of them in their new home enjoy


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. JanetS

    JanetS Chillin' With My Peeps

    1,099
    61
    153
    Jun 22, 2012
    Awwww!! How cute. Do you know what kind they are?

  6. CHRISNDAWN

    CHRISNDAWN New Egg

    8
    1
    9
    Mar 24, 2013
    Southeast va
    Yes they are Rhode Island Reds

  7. aart

    aart Chicken Juggler! Premium Member

    32,817
    5,567
    556
    Nov 27, 2012
    SW Michigan
    My Coop
    Nice !!

  8. CluckAcres

    CluckAcres Chillin' With My Peeps

    1,165
    58
    153
    Nov 20, 2012
    Silver Lake, Indiana
    Very nice pics!

  9. nab58

    nab58 Chillin' With My Peeps

    940
    67
    138
    Mar 28, 2013
    CT
    What little cuties! Nice brooder.

  10. JanetS

    JanetS Chillin' With My Peeps

    1,099
    61
    153
    Jun 22, 2012
    Can't wait to see the coop you're going to build.
