Converting an old incubator

Discussion in 'Incubating & Hatching Eggs' started by CARS, Feb 15, 2009.

  1. CARS

    CARS Chillin' With My Peeps

    I've been thinking of doing something with this (other than collecting dust).

    [​IMG]

    One idea was to restore it to a furniture quality piece and set a modern incubator on top of it to hatch eggs. A good idea if I was into collecting antiques.

    But then I thought about all of the homemade incubators.

    Why not convert this oil burner into an electric incubator? All the same parts could be installed without really destroying the 'bator. Or so I think.

    What do you think?

  2. A.J.'s

    A.J.'s Chillin' With My Peeps

    176
    1
    121
    Nov 11, 2008
    Tennessee
    p-lease tell me how does that thing work?

  3. CARS

    CARS Chillin' With My Peeps

    A.J.'s :

    p-lease tell me how does that thing work?

    I honestly don't know. I pulled 2 out of a barn that was going to be tore down. I kept one and sold the other.

    I bet someone else can answer the question though!​

  4. minna

    minna Chillin' With My Peeps

    365
    1
    129
    Oct 15, 2008
    Burnsville, MS
    I "think" it would work. Do you have any other pics of it? The inside, how it opens, ect.

  5. CARS

    CARS Chillin' With My Peeps

    I will clean it up and take some more pics tomorrow. To give you an idea, there is a wooden door that you open in the front. Behind that is a glass door that opens into the incubation chamber. There is a pull out wire tray to place the eggs on.

    I would need to add an electric heating element or bulb, a nightlight, and a way to add humidity. I think it is doable. I just need to clean it up and fix one of the legs. Other than that, follow the homemade incubator builds and start hatching!!

  6. rebelcowboysnb

    rebelcowboysnb Confederate Money Farm

    I would clean it up an get it working the way it should work as a power outage backup. But you should be able to mount a light where the lantern is an it should work.

  7. CARS

    CARS Chillin' With My Peeps

    This morning I got most of the dust off and took some pics.
    (btw: I messed up and posted the wrong pic earlier, this one came from Iowa. The one on the top of the page was from Nebraska and is the one I sold)

    [​IMG]

    Here the first door opens. It was so dusty I didn't know that it had glass!

    [​IMG]

    After the second glass door is open you can see the mechanicals of this thing. (I still don't know how it worked though)

    [​IMG]

    [​IMG]

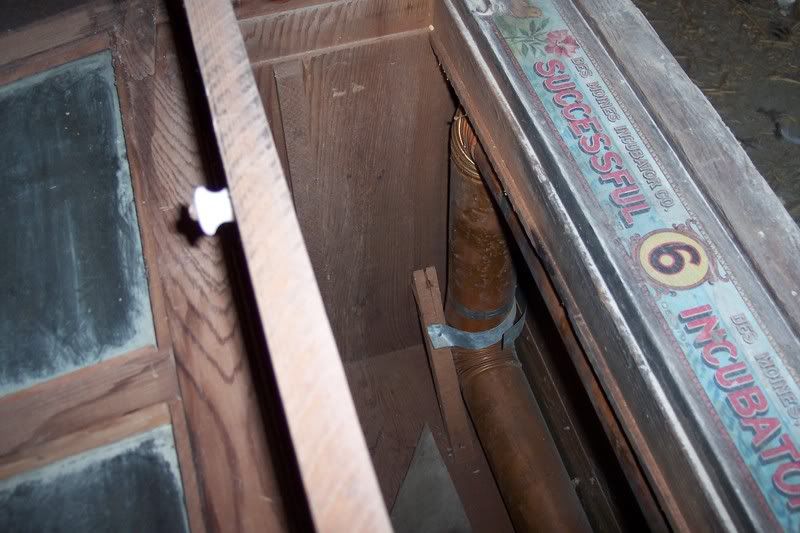

    As you can see there is a copper pipe (2 1/2"-3") running around the top of the incubator. I am assuming that the heater somehow pumped heat through this pipe but I am missing so many pieces on the heater that I don't know how it is controlled. I would like to somehow use the pipe (leave it in there). Maybe fill it with 50%water/50% glycol (to protect against any future freezing that may occur) and wrap heat tape around it?? The heated, filled pipe should hold a consistent temp.

    Another thought is using the heating element out of a cabinet 'bator. With the proper hanging clips from GQF it should hang in the middle of the pipe. It would keep the element hidden to the casual onlooker.

    And the simplest idea is to remove the pipe and heater, use the hole in the side of the cabinet and use a light bulb for heat.

    I will need a fan (I have an old PC laying around) and a method of humidifying (and controlling the humidity). I will use the same thermostat that I am adding to my brooder (reptile style with remote probe).

    OK gang, now that you've seen what I am starting with what ideas do you have?

    I need to talk to a woodworker today and get new legs made (one is missing, one is broke) and then the construction can begin!!!!

  8. CARS

    CARS Chillin' With My Peeps

    No thoughts?

    Or are you all afraid I will win the best homemade 'bator contest [​IMG]

  9. AngieChick

    AngieChick Poultry Elitist

    No advice from me, I've never made one. But I do have to say that your find is just too cool! I'm major big time jealous!

  10. ozzie

    ozzie Chillin' With My Peeps

    192
    0
    129
    Nov 12, 2007
    I think it's an old kerosene incubator. It works by heating the water (?) in the copper pipe. Back in the days when there was no electricity, this was how people used to incubate eggs. In fact I believe there are still some out there for sale to folks in remote villages who have no power supply

    http://www.thomaseximp.com/thomas/egg.html

    This company still sells them.
