Looking for advice on sealing my pond: Liner vs. Sodium Bentonite?

Discussion in 'DIY / Self Sufficiency' started by The Great Ayam, Nov 27, 2015.

  1. The Great Ayam

    The Great Ayam Out Of The Brooder

    15
    3
    24
    Nov 15, 2015
    Hello! I am new to ponds. Right now, it's just a hobby for me, but I love ponds. I have dug a small backyard pond (by hand!--whew!) and am looking for any advice from those experienced in digging and maintaining ponds. I have many questions and would love to chat...

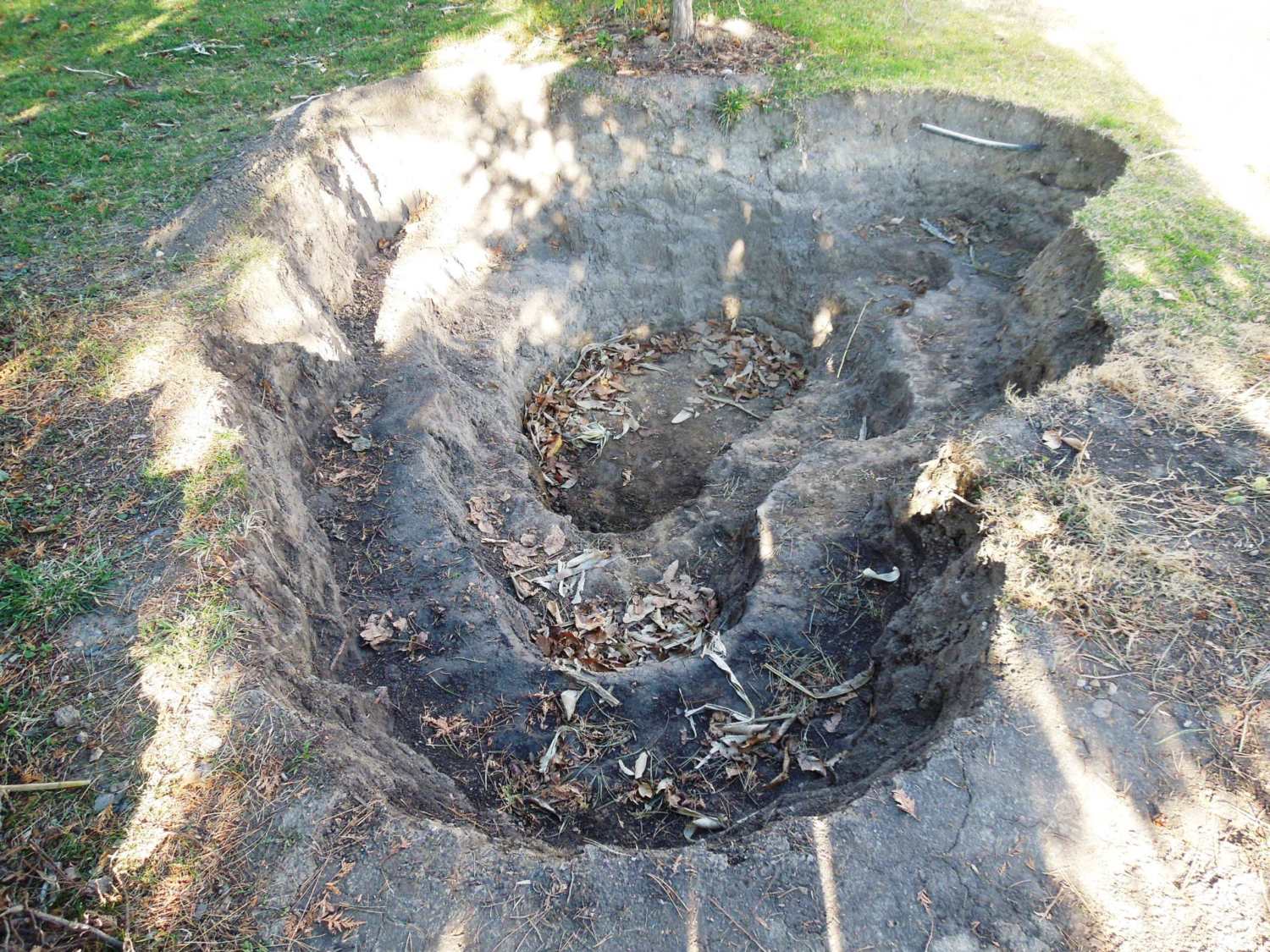

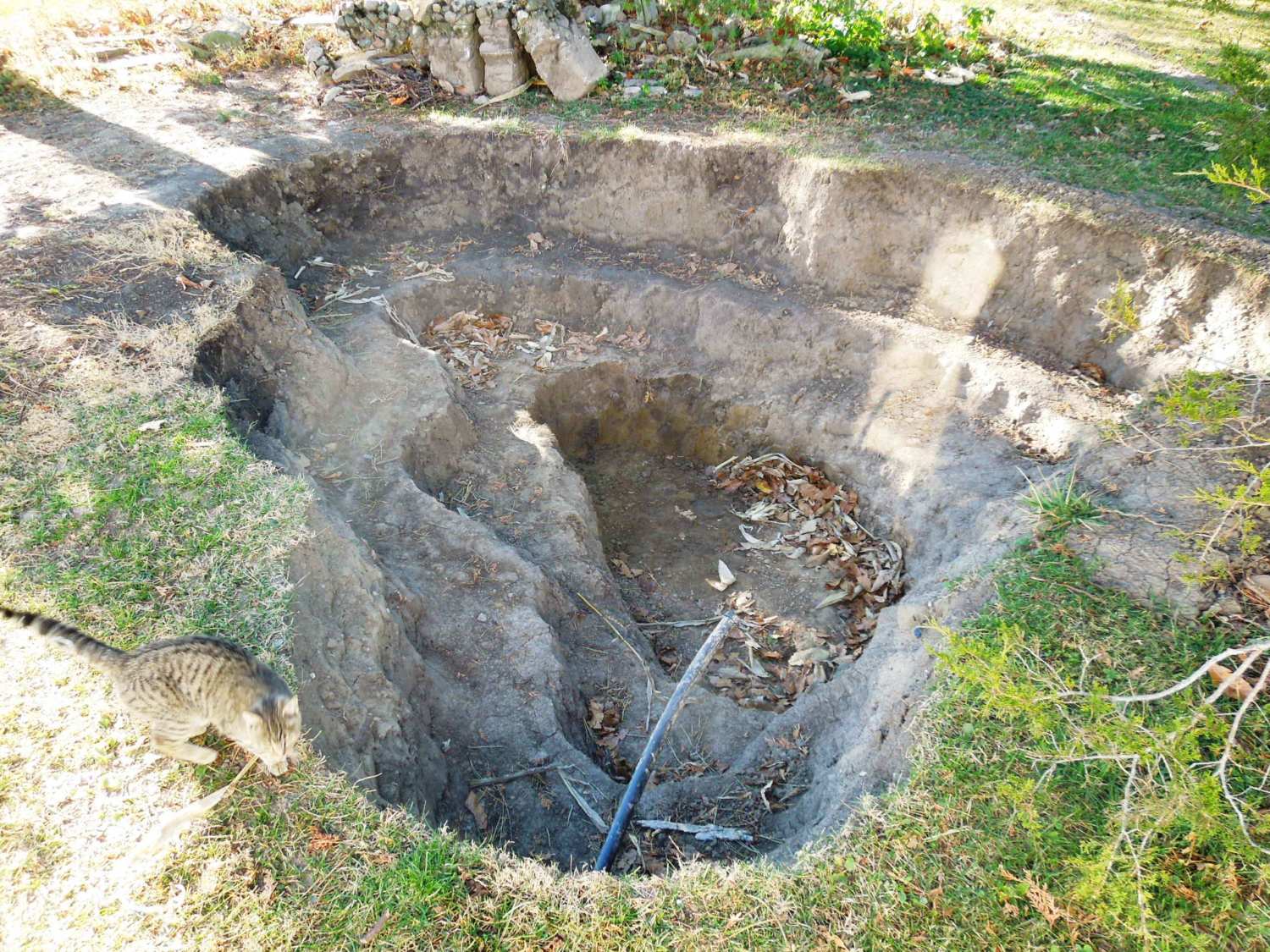

    I am including some pics of my pond as it is so far. And, I am wondering what is best way to seal it so it will hold water. Does anyone have any advice or info (especially experience) that you'd like to share? Much appreciated. Thanks!
    [​IMG]

    [​IMG]

    [​IMG]

  2. nchls school

    nchls school Chillin' With My Peeps

    4,385
    363
    218
    Apr 22, 2015
    I had ponds for many years; above and below ground. Both are nice, but for maintenance I preferred the above ground-personal preference. I always used liners. I do not recommend them. Too many times the liners broke-leaked.

    We're moving south in the spring and I hope to have a pond again.

  3. Hholly

    Hholly Chillin' With My Peeps

    1,329
    171
    178
    Jul 3, 2015
    Amo, IN
    That's going to be a neat pond!

  4. cavemanrich

    cavemanrich Chillin' With My Peeps

    2,832
    352
    218
    Apr 6, 2014
    Melrose Park Illinois
    I wanted a pond for many years, and am getting close to having one now. Here are my thoughts. I have seen small backyard ponds with a liner, and they are OK. They were generally shallow depressions dug about 2 feet deep in middle and tapered straight flat to edges. The liner stretched and looked smooth. Your dug out pond, ( beautiful by the way, shape ) is irregular. A liner placed into, would be with wrinkles. No liner made, comes with a forever life span. It would need to be replace within ??? years. Now lets look into sodium bentonite option. It is a great product , but may not be the best for your application. ( at least the way normally applied.) It will work great on large flat bottoms. It stays in a paste form and not solid. ( Read this in preventing ponds from leaking from cow hooves entering ponds to drink, etc.) I see 2 drawbacks here. First, it would be a challenge keeping it in place on the vertical walls of your pond. Second, it may prevent you from having nice clear water. The bentonite needs to be held in place with a layer of soil, sand, or whatever else. The way your pond is made suggests that you want to keep water plants and fish. If you were not thinking of fish??? then think again. The fish will naturally control the mosquitoes. Certain minnows are better at eating mosquito larvae than other fish. You experiment there for your best results. For fish, you need clear water, so you can enjoy seeing them, as well as for their well being. A small swimming pool type filtration and a means to aerate are also good for clear view pond water. Filtration does not need to run continuously. Aeration keeps water from going stagnant and developing unpleasant odors. You can do both as you see fit and best results.
    Here are my plans on how I will make my pond. Mine will be about half the size of yours due to size of my yard. Not as deep ether. After I am finished digging, I will cover the soil with bentonite, about 2 inches. I will mix up small batches of cement and create a 1 inch thick cement layer. while cement is still not set, I will cover top with decorative river rock pebbles. I don't want the look of a sidewalk underwater. When cement hardens, I will remove all non binding pebbles and keep using them as I keep progressing with more cement troweling. Making cement mix stiff enough, I can apply vertically with limitations. This is more than a single afternoon project. When I have all cement completed, and one day hardened, then I will fill with water to cure cement. ( cement cures well when in water) Other option is to sprinkle with water often for at least the first week. I know there are cement sealers, that can be applied, but I personally will skip those, since I'm planning to keep fish. What I end up with is a thin shelled cement pond with pebbles on top. In time it will develop small cracks of course. That is the reason for the 2 inch layer of bentonite under cement. Water will stay clear not being clouded. The pebbles will keep the cracks out of sight also. It will have a natural look.
    Every so often I will have to brush the sides and bottom with a broom to loosen up the green algae. The pool filter will remove all the floating particles as well as the algae.
    Hope this gives you some possible ideas for your pond. AND [​IMG]
    .

  5. cavemanrich

    cavemanrich Chillin' With My Peeps

    2,832
    352
    218
    Apr 6, 2014
    Melrose Park Illinois
    This pertains to water plants. Regardless where you get them, ( a pond, river, or store). Keep them in pots and you can contain the soil, silt, river bottom material, with fine netting. Will keep stuff from clouding water. In time the algae will make netting not noticeable visually.

  6. The Great Ayam

    The Great Ayam Out Of The Brooder

    15
    3
    24
    Nov 15, 2015
    Thank you so much for your information! I do appreciate it and, yes, you have given me some options to consider. I am hoping in time I'll figure it out and have a little pond I'm happy with...I am learning and anticipating trial and error. Ultimately, I am hoping to have fun in the process. Thanks again and I hope to see your pond some day...

    Last edited: Nov 28, 2015
  7. nchls school

    nchls school Chillin' With My Peeps

    4,385
    363
    218
    Apr 22, 2015
    When getting fish-water plants from a pond, stream, whatever, wash thoroughly and discard any soil they were in as they/it will bring in disease and unwanted pests. I strongly suggest that you buy fish and plants. Those from nature will increase your chances of a problem dramatically.

    1 person likes this.
  8. Primo

    Primo Chillin' With My Peeps

    268
    39
    103
    May 1, 2013
    Texas
    Liner really will be your best option. Get the thickest one you can afford. Make sure there are no rocks or sharp objects before you lay it. Bentonite is not really meant for small backyard ponds. Your other options would be concrete or gunite, which would require rebar and or forms.

  9. The Great Ayam

    The Great Ayam Out Of The Brooder

    15
    3
    24
    Nov 15, 2015
    Thank you so much for your advice! I have been researching my options...just learning along the way and hoping to have fun. Thanks again!

  10. wyoDreamer

    wyoDreamer Chillin' With My Peeps

    3,137
    195
    223
    Nov 10, 2010
    I have heard to line the bottom of the pond with damp newspaper before laying down the liner. This will form a "cushion" to prevent rocks from poking through. wetting the newspaper will help it stick together an form a dense mat under the liner.
