Frustrated chicks. Not really getting the hang of the horizontal nipples. They are 4 weeks.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
Well, my fingers now hurt from pulling SO MANY zip-ties, but the first pen is completely done. We're going to decide where to put it, move food and water in there along with some shelter, and put the ducks and geese in there tonight. And here are the promised photos:

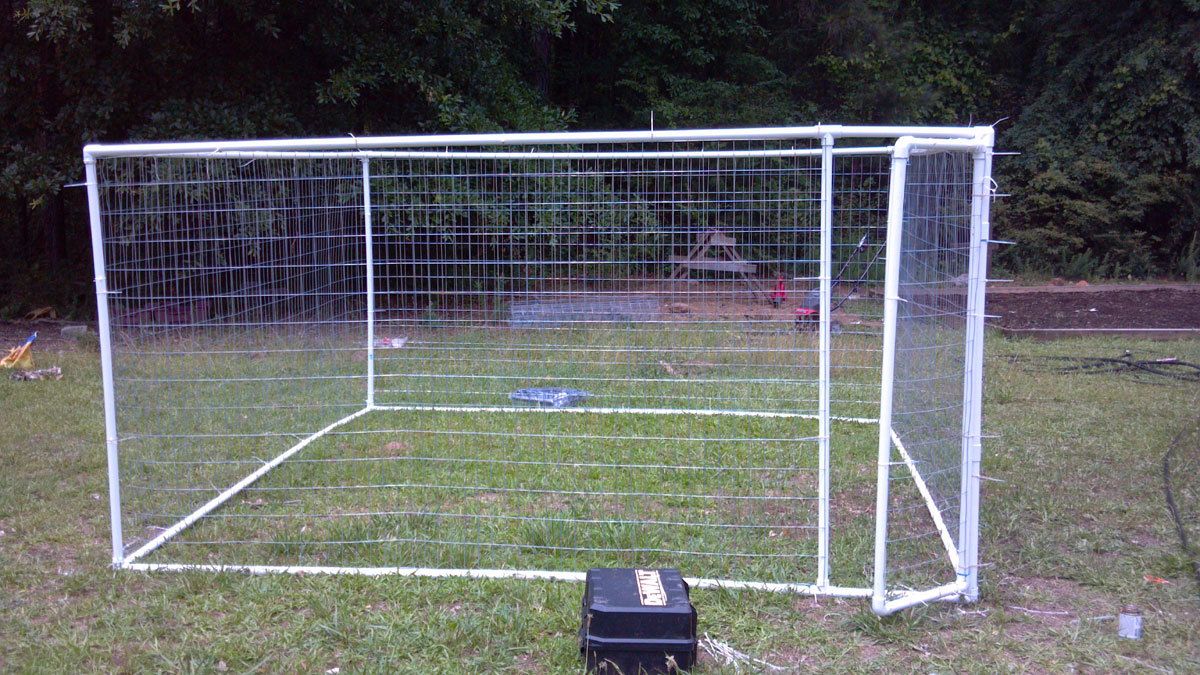

This was the completed pen, just prior to putting the tarp on it. The only thing it is missing (which we'll red-neck it somehow for now) is a latch for the door/gate.

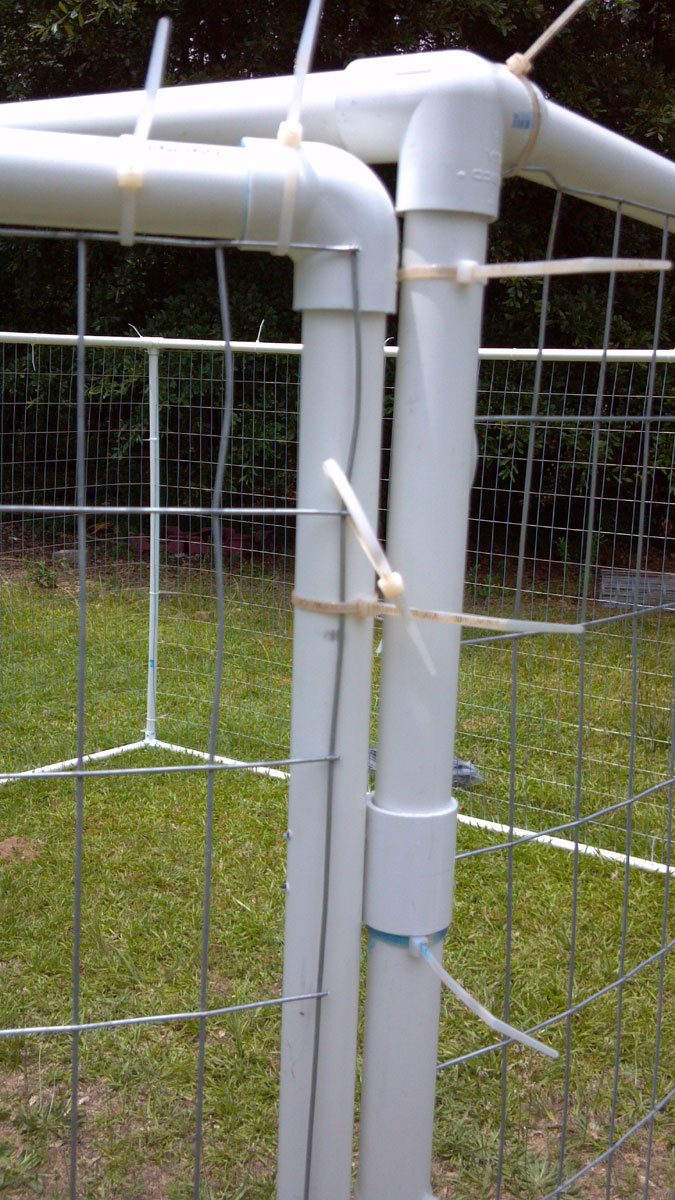

This is a close up of the corner of the pen, corner of the gate, and the top "hinge" on the gate. The zip tie actually kept the hinges of the gate from sliding down, so I merely used the PVC cement to glue it in place.

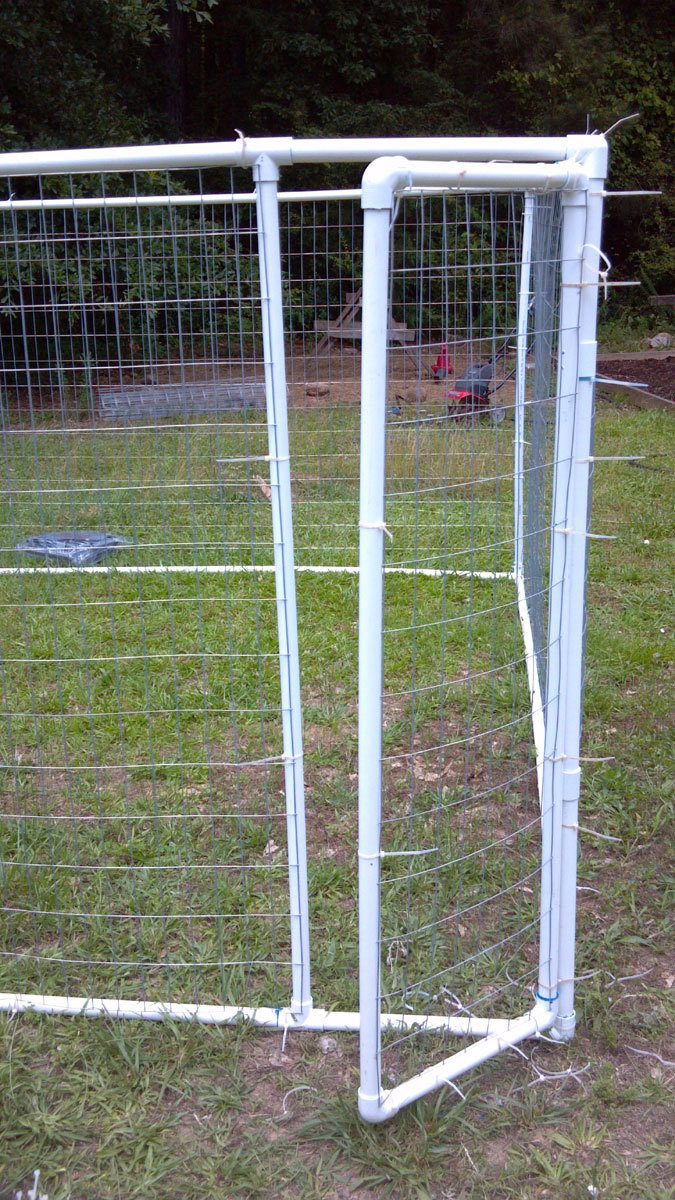

This is a close up of the gate, so you can see how I built it. I think the hardest part aside from the heat, and pulling all those zip-ties, was figuring out the measurements for the pipes above and below the gate, and the measurements of the gate itself - with NO plans or blueprint to work from. I literally had to eyeball this part, and make guesses based on how much extra length the elbows, corners, and tees would add. The top and bottom parts of the pen itself (connected to the tee) are 18 inches, and the top and bottom poles of the gate itself are 15 inches.

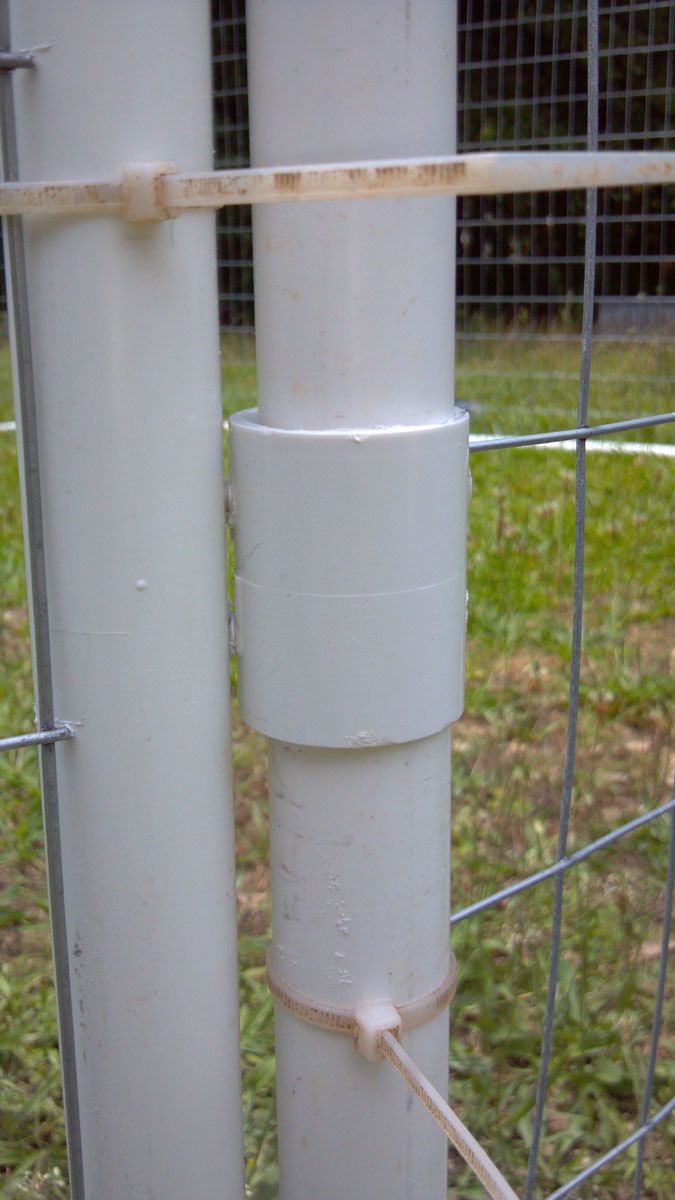

A close-up of the bottom hinge after the gate was installed.
This is what the hinge looks like on the side OPPOSITE the actual gate. These two holes were just drilled to give the drill bit access to where it will actually be attached to the gate with a screw.

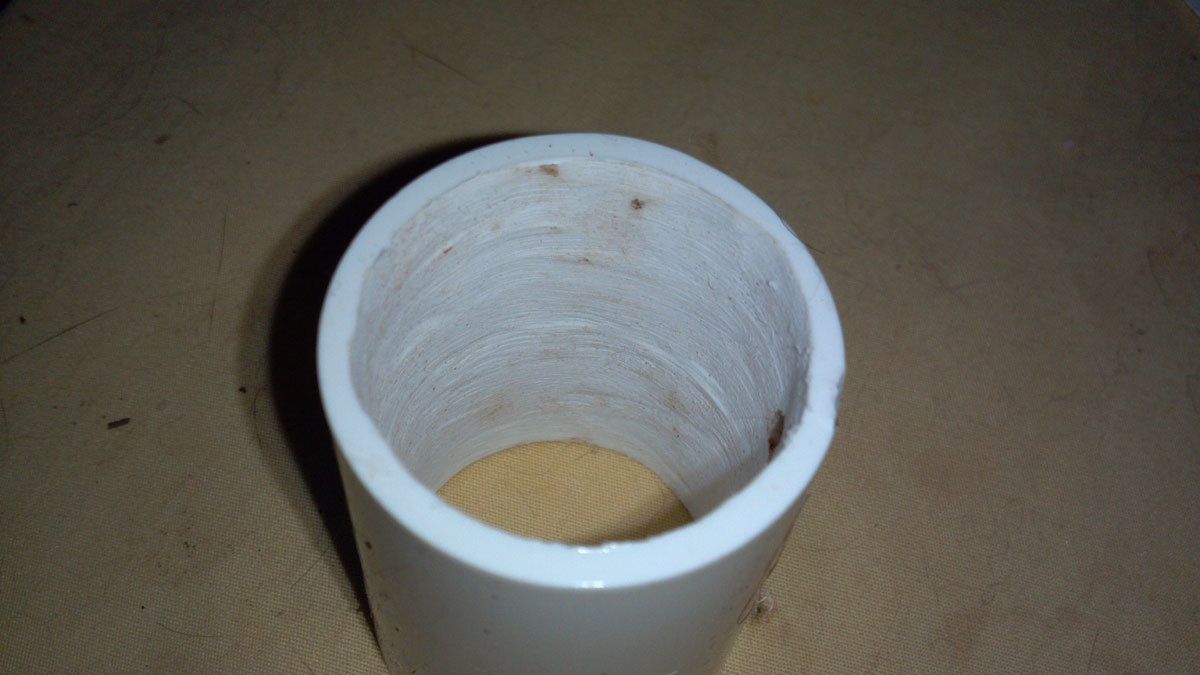

This is the secret to the hinges. It's just a normal coupling for a 1-inch pipe, sanded out with a dremel. This got rid of the "ridge" in the middle where pipes would normally meet, and loosened it up on the pipe enough to swing freely. The hard part here, was getting the screws to go deep enough, once attached to the gate, to keep the screws from interfering with the free-movement of the hinge.
The entire gate assembled, attached, and open. It does touch the frame a SLIGHT bit in the lower left, but otherwise swings freely.
This is what the pen looks like now, with the tarp on it as well. A small slit has been placed in the very center to let rainwater drain back out. If I have nest boxes against the edges, the rain will still be far enough away from them not to cause harm. But since the weight of rain is detrimental to this lightweight construction design, I had to give it a way to drain off of the tarp. I DID think about actually making an auto-waterer out of it, but decided I would try that on a future pen. The tarp is most likely the only thing that will ever really need to be replaced on these.
The tarp didn't come in 10x10. Only 12x10 or bigger. So I have a two-foot overlap coming down the back side, which will kinda help protect wooden structures inside - such as nest boxes and roosting bars.

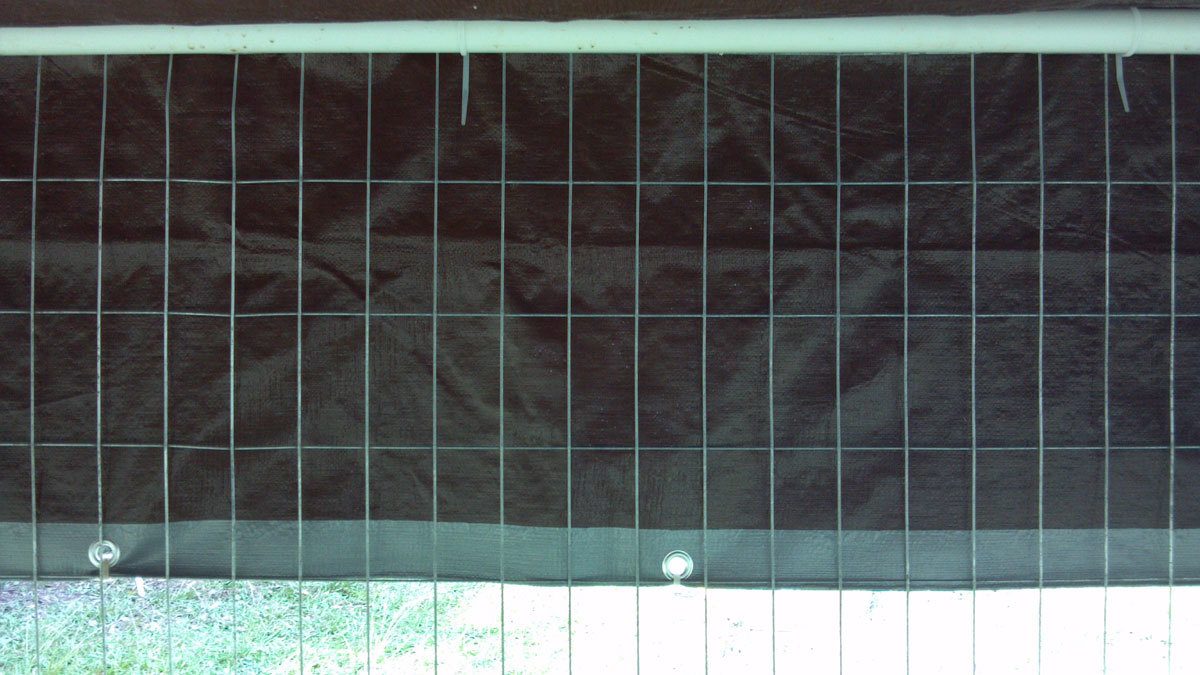

Another view of the tarp overlap.
This is a complete project, but there ARE finishing touches I plan to put on it. Since I have both a dremel and a soldering gun available to me, I plan to cut all excess length from the zip ties and either sand them down or melt them down to get rid of sharp edges. I also plan to do the same with any exposed metal edge where I cut the welded wire to fit. But for now, it's fully functional. All sharp edges are on the OUTSIDE of the pen anyway, so anything placed inside of the pen won't get hurt. As more paychecks come through, I'll buy more pipe, and fix up more pens. I have everything needed for another pen right now except the actual 10-foot pipes. Pens 3 through 5 will need corner elbows as well. And beyond 5 I will need all of that plus the welded wire and probably more zip ties. But I have all pipe Tees and normal 90-degree elbows for ten full pens, like I wanted from the beginning.
Next set of projects aside from this: Shelters and/or roost bars, and nest boxes.
I might be interested in your Welsummer Pullets. I have a 3 month old boy and he needs some girls. If I decide to keep him.
For a temp latch you could always go get the "reuseable" zip tiesWell, my fingers now hurt from pulling SO MANY zip-ties, but the first pen is completely done. We're going to decide where to put it, move food and water in there along with some shelter, and put the ducks and geese in there tonight. And here are the promised photos:
This was the completed pen, just prior to putting the tarp on it. The only thing it is missing (which we'll red-neck it somehow for now) is a latch for the door/gate.
This is a close up of the corner of the pen, corner of the gate, and the top "hinge" on the gate. The zip tie actually kept the hinges of the gate from sliding down, so I merely used the PVC cement to glue it in place.
This is a close up of the gate, so you can see how I built it. I think the hardest part aside from the heat, and pulling all those zip-ties, was figuring out the measurements for the pipes above and below the gate, and the measurements of the gate itself - with NO plans or blueprint to work from. I literally had to eyeball this part, and make guesses based on how much extra length the elbows, corners, and tees would add. The top and bottom parts of the pen itself (connected to the tee) are 18 inches, and the top and bottom poles of the gate itself are 15 inches.
A close-up of the bottom hinge after the gate was installed.
This is what the hinge looks like on the side OPPOSITE the actual gate. These two holes were just drilled to give the drill bit access to where it will actually be attached to the gate with a screw.
This is the secret to the hinges. It's just a normal coupling for a 1-inch pipe, sanded out with a dremel. This got rid of the "ridge" in the middle where pipes would normally meet, and loosened it up on the pipe enough to swing freely. The hard part here, was getting the screws to go deep enough, once attached to the gate, to keep the screws from interfering with the free-movement of the hinge.
The entire gate assembled, attached, and open. It does touch the frame a SLIGHT bit in the lower left, but otherwise swings freely.
This is what the pen looks like now, with the tarp on it as well. A small slit has been placed in the very center to let rainwater drain back out. If I have nest boxes against the edges, the rain will still be far enough away from them not to cause harm. But since the weight of rain is detrimental to this lightweight construction design, I had to give it a way to drain off of the tarp. I DID think about actually making an auto-waterer out of it, but decided I would try that on a future pen. The tarp is most likely the only thing that will ever really need to be replaced on these.
The tarp didn't come in 10x10. Only 12x10 or bigger. So I have a two-foot overlap coming down the back side, which will kinda help protect wooden structures inside - such as nest boxes and roosting bars.
Another view of the tarp overlap.
This is a complete project, but there ARE finishing touches I plan to put on it. Since I have both a dremel and a soldering gun available to me, I plan to cut all excess length from the zip ties and either sand them down or melt them down to get rid of sharp edges. I also plan to do the same with any exposed metal edge where I cut the welded wire to fit. But for now, it's fully functional. All sharp edges are on the OUTSIDE of the pen anyway, so anything placed inside of the pen won't get hurt. As more paychecks come through, I'll buy more pipe, and fix up more pens. I have everything needed for another pen right now except the actual 10-foot pipes. Pens 3 through 5 will need corner elbows as well. And beyond 5 I will need all of that plus the welded wire and probably more zip ties. But I have all pipe Tees and normal 90-degree elbows for ten full pens, like I wanted from the beginning.
Next set of projects aside from this: Shelters and/or roost bars, and nest boxes.
I love this! I showed my husband last night and he liked it too. I couldn't tell though if you had the fence on the top too. I think we would need fence on the top seeing as there are stray cats in our area that love to rip holes in tarp. We had new tarp covering some wood in the yard once and a cat tore a huge hole in it then we had covered up some dirt to keep it from washing away in a rain storm and a cat tore a huge hole in that too. It was really good tarp and it was not cheap. I could really use one of these for letting the chicks/chicken range around the yard without worrying about something getting to them.Well, my fingers now hurt from pulling SO MANY zip-ties, but the first pen is completely done. We're going to decide where to put it, move food and water in there along with some shelter, and put the ducks and geese in there tonight. And here are the promised photos:
This was the completed pen, just prior to putting the tarp on it. The only thing it is missing (which we'll red-neck it somehow for now) is a latch for the door/gate.
This is a close up of the corner of the pen, corner of the gate, and the top "hinge" on the gate. The zip tie actually kept the hinges of the gate from sliding down, so I merely used the PVC cement to glue it in place.
This is a close up of the gate, so you can see how I built it. I think the hardest part aside from the heat, and pulling all those zip-ties, was figuring out the measurements for the pipes above and below the gate, and the measurements of the gate itself - with NO plans or blueprint to work from. I literally had to eyeball this part, and make guesses based on how much extra length the elbows, corners, and tees would add. The top and bottom parts of the pen itself (connected to the tee) are 18 inches, and the top and bottom poles of the gate itself are 15 inches.
A close-up of the bottom hinge after the gate was installed.
This is what the hinge looks like on the side OPPOSITE the actual gate. These two holes were just drilled to give the drill bit access to where it will actually be attached to the gate with a screw.
This is the secret to the hinges. It's just a normal coupling for a 1-inch pipe, sanded out with a dremel. This got rid of the "ridge" in the middle where pipes would normally meet, and loosened it up on the pipe enough to swing freely. The hard part here, was getting the screws to go deep enough, once attached to the gate, to keep the screws from interfering with the free-movement of the hinge.
The entire gate assembled, attached, and open. It does touch the frame a SLIGHT bit in the lower left, but otherwise swings freely.
This is what the pen looks like now, with the tarp on it as well. A small slit has been placed in the very center to let rainwater drain back out. If I have nest boxes against the edges, the rain will still be far enough away from them not to cause harm. But since the weight of rain is detrimental to this lightweight construction design, I had to give it a way to drain off of the tarp. I DID think about actually making an auto-waterer out of it, but decided I would try that on a future pen. The tarp is most likely the only thing that will ever really need to be replaced on these.
The tarp didn't come in 10x10. Only 12x10 or bigger. So I have a two-foot overlap coming down the back side, which will kinda help protect wooden structures inside - such as nest boxes and roosting bars.
Another view of the tarp overlap.
This is a complete project, but there ARE finishing touches I plan to put on it. Since I have both a dremel and a soldering gun available to me, I plan to cut all excess length from the zip ties and either sand them down or melt them down to get rid of sharp edges. I also plan to do the same with any exposed metal edge where I cut the welded wire to fit. But for now, it's fully functional. All sharp edges are on the OUTSIDE of the pen anyway, so anything placed inside of the pen won't get hurt. As more paychecks come through, I'll buy more pipe, and fix up more pens. I have everything needed for another pen right now except the actual 10-foot pipes. Pens 3 through 5 will need corner elbows as well. And beyond 5 I will need all of that plus the welded wire and probably more zip ties. But I have all pipe Tees and normal 90-degree elbows for ten full pens, like I wanted from the beginning.
Next set of projects aside from this: Shelters and/or roost bars, and nest boxes.
No, I didn't put fence on the top. I have three cats that love to sleep on things like this, but they can't really climb the sides of the fence on this, and 5 feet is a little too much for them to simply jump up. But wild cats may be different - mine are lazy! lol!I love this! I showed my husband last night and he liked it too. I couldn't tell though if you had the fence on the top too. I think we would need fence on the top seeing as there are stray cats in our area that love to rip holes in tarp. We had new tarp covering some wood in the yard once and a cat tore a huge hole in it then we had covered up some dirt to keep it from washing away in a rain storm and a cat tore a huge hole in that too. It was really good tarp and it was not cheap. I could really use one of these for letting the chicks/chicken range around the yard without worrying about something getting to them.
Yeah I got to looking at the brinsea brand yesterday. I think I am sold on the Mini advanced incubator. Might be an early Christmas present this fall after everyone starts laying and the weather cools off.I have pretty good luck with a Little Giant incubator with a Little Giant egg turner, I also added a computer fan to prevent hot or cold spots. If you incubate in a room where the room temps stay constant, this is a great incubator for the price. I have around $100.00 invested. I bought a second Little Giant still air incubator that I use as a hatching box, this is a must if you have eggs that are set on different dates. If you want total automation and can afford one, Brinsea has several models that I spend a lot of time drooling over.![]()
I would be careful to think that this type of pen would keep out large predators. The holes are too big to keep out small possums or raccoons and a dog or coyote could easily dig under. I would suggest you use hardware cloth and plant the wire down into the earth at least 8-12". If you don't have large predators, this may work fine. We have bears, coyotes, etc here. I would also recommend a more sturdy top. What happens to the tarp when it rains? Will it sag?
