Broke ground on house and run (COMPLETED - Updated Pics)

Discussion in 'Coop & Run - Design, Construction, & Maintenance' started by eds500, May 29, 2010.

  1. eds500

    eds500 Chillin' With My Peeps

    147
    3
    101
    May 27, 2010
    Raleigh, NC
    I broke ground yesterday on our house and run. There is an annual urban coop tour where we live and I took our 2 sons this year. Both are excited so we've made the decision to give backyard chickens a try. This is our first experience with chickens though I've been reading about and following the urban chicken community for about 2 years. We're planning for 4 hens, currently looking at barred plymouth rocks. The house will be 4ft cubed elevated with an extension off the back to house the nesting boxes. The extension will have hinged roof for access and the wall holding the boxes will be hinged vertically to swing out for access to clean the house. The run will be 12'x12'. I'm reclaiming wood from craigslist, our local habitat for humanity restore and random findings about town. I hope to have the house operational by mid-july. I'm taking pictures as I progress and will post some soon.

    Ed

    Last edited: Mar 11, 2011
  2. wildorchid053

    wildorchid053 Chillin' With My Peeps

    May 12, 2009
    syracuse area, ny
    welcome and good luck.. just a piece of advise.... make it alot bigger than you think you need.. i guarantee next year you will be adding more.. they are soooo adorable. we are now building our second coop.. first was 8x8 and now 12x16

  3. joletabey

    joletabey SDWD!!!!

    Apr 9, 2009
    western NC
    [​IMG] And good luck! I agree, make it bigger - you will want more chickens!! They are addictive!

  4. eds500

    eds500 Chillin' With My Peeps

    147
    3
    101
    May 27, 2010
    Raleigh, NC
    After 2 weeks of no progress, work on the chicken house has started. I got a load of salvage wood from my father-in-law which is great. I took the advice above and designed the house larger because we're getting 6 hens rather than 4. The footprint of the house is 5x5 instead of 4x4 and the run will be 10x10 not 12x12 as originally planned.

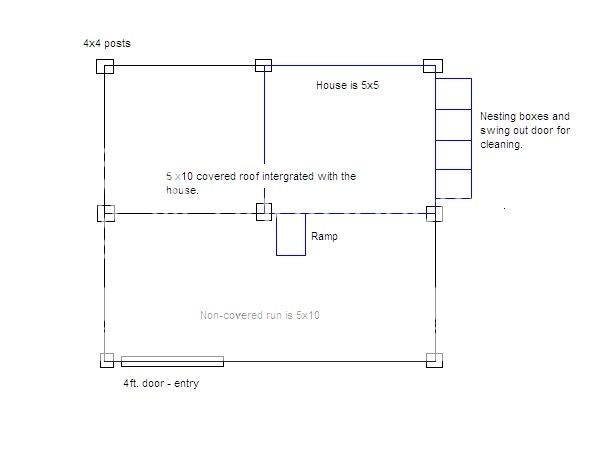

    The basic design is this.. 1/2 of the 10x10 will be covered by roof. Of that, 5x5 is the house, and 5x5 is covered run. The other 5x10 is non-covered run. The top and sides will be covered in hardware cloth with 2ft wide apron of welded-wire on the perimeter.

    [​IMG]

    I've sunk the posts 12" and the clearance to the bottom of the frame is 22". The 2x6 joists are 20" apart which allows for plenty of space for the chicken ramp. The green line to the lower left of the run is the swing out line for the door. The site is graded with a 2" slope from front to back to help with drainage.

    [​IMG]

    [​IMG]

    First of several loads of scrap/salvage wood. Mix of 2x6's, 2x4's, 5/4 decking, and 6x6 and 6x4 posts.

    [​IMG]

    I'm planning to lay the house floor and frame the walls this weekend.

    Last edited: Jun 16, 2010
  5. flgardengirl

    flgardengirl Chillin' With My Peeps

    4,425
    60
    244
    Dec 2, 2009
    Sunny side up :)
    Urban coop tours sound pretty cool. I bet that was a fun thing for the kids to go to. Wish they had something like that around here.

  6. eds500

    eds500 Chillin' With My Peeps

    147
    3
    101
    May 27, 2010
    Raleigh, NC
    After several weeks of no progress, I worked 3 hours on the coop today. I framed the front wall with the window and framed part of the side wall today. The rear wall was framed a few weeks ago. Finally taking shape. I'll be working on it the next two weekends. More progress to made soon.

    [​IMG]

    The peak is 7' and the front fence and rear wall/fence are 6' I have a matching window sash to install on the side wall facing inside the run. The side wall facing outside the run will be solid wall.

  7. ADozenGirlz

    ADozenGirlz The Chicken Chick[IMG]emojione/assets/png/00ae.png

    6,117
    67
    281
    Oct 18, 2009
    Connecticut
    Welcome to BYC!! [​IMG] Wow, great progress on the coop & great score on the wood! Keep the photos coming!

  8. eds500

    eds500 Chillin' With My Peeps

    147
    3
    101
    May 27, 2010
    Raleigh, NC
    After a few weeks with little work, I got 4 solid hours in today. I've reworked some of the framing shown in the previous pictures as well as making forward progress. I've framed two sides, built the egg boxes, installed the second window, and set the door for ramp. Getting the egg boxes complete really put me in a great position to make quick work the next time out. Still several solid weeks of work left.

    Chicken Boxes and ramp door
    [​IMG]

    Side entry door for cleanout
    [​IMG]

    From the rear
    [​IMG]

  9. cptkracker

    cptkracker Out Of The Brooder

    56
    0
    39
    Jul 11, 2010
    I'm jealous of your coop. Mine's just an old barn [​IMG]

  10. eds500

    eds500 Chillin' With My Peeps

    147
    3
    101
    May 27, 2010
    Raleigh, NC
    Saturday was very productive. My father-in-law helped for 4 hours setting the roof supports and completing the rear wall framing above the chicken boxes. We progressed more quickly than I expected. From here, the next step will be either to install the hardie panels on the house, or set the 3 posts for the front of the run and frame into the rest, or install the tin roof. Depends on which material we get next. Fortunately, nearly all the material used to date has been reclaim from his projects so I'm not choosy about what's next.



    [​IMG]


    [​IMG]
