My home made bator

Discussion in 'Incubating & Hatching Eggs' started by Granny Hoffman, Nov 14, 2010.

  1. Granny Hoffman

    Granny Hoffman Chillin' With My Peeps

    250
    1
    129
    Jul 19, 2010
    SE Michigan

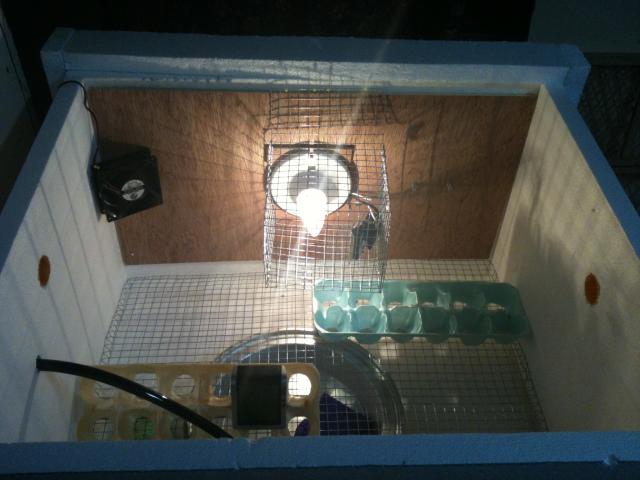

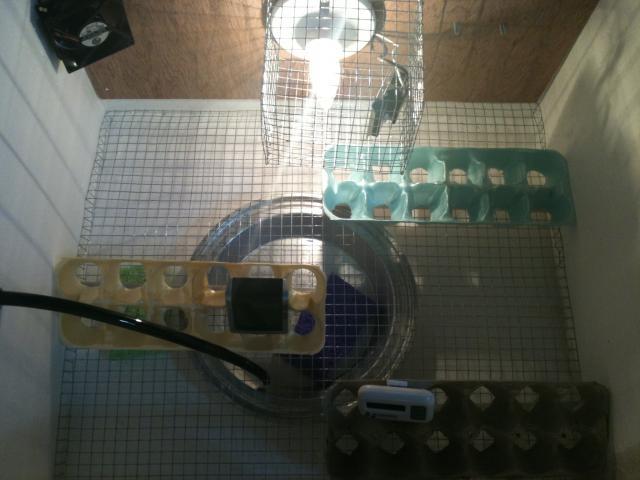

    I scoured a lot of threads and this is what I came up with. I didn't have access to a styrofoam cooler, so I built my own box. So far it is holding a good temp with not much variation, I just have to work on the humidity level. The egg cartons are hot glued to pvc pipe and I can turn them from the outside. They are removable, so during hatch there will be plenty of room for the eggs to lay on the hardware cloth. I have 2 vent holes on each side, empty pill bottles with the bottom cut off and glued to the box. I also have a tube running from the outside for the water pan that I can fill without lifting the top.
    What do you think? Did I miss anything? If everything holds good I plan on setting eggs tomorrow night.

    Thanks for looking.

    [​IMG]

    [​IMG]

    [​IMG]

  2. rebel yell

    rebel yell Chillin' With My Peeps

    1,386
    19
    161
    Jun 27, 2010
    Alabama
    Looks good, I think your on your way to success, I don't run any water until the 18th day & then up it to about 65% & hold on for the long ride of WAIT, good luck.

  3. rebel yell

    rebel yell Chillin' With My Peeps

    1,386
    19
    161
    Jun 27, 2010
    Alabama
    Don't see your thermostat, what kinda thermostat are you running?

  4. mgw

    mgw Chillin' With My Peeps

    May 29, 2010
    Eastern Wa.
    I like it and think it will work great keep us posted.

  5. Granny Hoffman

    Granny Hoffman Chillin' With My Peeps

    250
    1
    129
    Jul 19, 2010
    SE Michigan
    Quote:I am using a hot water heater thermostat. It's hanging right next to the bulb in the little wire cage.

  6. tmoore8595

    tmoore8595 Chillin' With My Peeps

    382
    13
    124
    Nov 7, 2010
    Jefferson County, Al.
    You may want to move the thermostat away from the heat source..

    Last edited: Nov 15, 2010
  7. rebelcowboysnb

    rebelcowboysnb Confederate Money Farm

    Quote:Nope that's the best place for a hot water thermostat.

  8. Granny Hoffman

    Granny Hoffman Chillin' With My Peeps

    250
    1
    129
    Jul 19, 2010
    SE Michigan
    Quote:Thanks to rebelcowboysnb, that is the only place that I could find to put it that would stabilize the temperature.
