Gopherboy Farms The Gopherbator Egg Incubator

The Gopherbator Egg Incubator
By GopherBoyFarms · Jan 11, 2012 · ·
Tags:
Rating:
4/5,
  1. GopherBoyFarms
    GopherBoy Farms
    Gopher-Bator
    [​IMG]
    SUPPLY LIST
    Cooler
    Mesh wire

    Water heater thermostat
    Plug with about 2-3 ft wire
    Light fixture
    40-watt light bulb
    PC fan

    12 Volt transformer
    2-3 feet of PVC pipe
    2 pipe couplings
    2, ½ inch plastic clamps

    Wooden Box
    Shallow pan
    A couple sponges
    Thermometer/hydrometer w/probe
    Water wiggler
    Water bottle
    Tubing that fits on top of bottle

    Thermometer
    2 old pill bottles
    Various screws
    Wire Nuts
    A Sharpie pen

    1. Cut square in lid for viewing window 2.use caulking around cut out area to seal glass viewing window
    [​IMG] [​IMG]

    3. Install glass
    [​IMG]



    4. Locate and drill 6 hole in cooler 1 hole for auto water (no need to open lid)
    2 vent holes 1 small hole for wires
    2 hole across from each other for

    [​IMG]
    exterior operated egg turner
    [​IMG]

    5. Place pan with sponges in bottom of cooler
    (we used caulking to hold pan in place)

    [​IMG]


    6. Cut and bend wire to fit into the bottom of cooler over pan 7. Cut hole in wire for auto water tube
    [​IMG] [​IMG]


    8. place wire into cooler 9. put tubing w/ water bottle attached through hole in cooler,
    then through hole in wire into pan for auto water

    [​IMG] [​IMG]



    10. Cut out bottom of wooden box that fits in cooler 11. cut piece of wire and staple to bottom of box
    [​IMG] [​IMG]


    12. attach ½ inch plastic clamps to bottom of box
    [​IMG]

    13. set box on wire with plastic pipe clamps lined up with the predrilled holes
    14.slide pipe through one side of cooler then threw both pipe clamps, then threw the hole on other side of cooler
    [​IMG]
    15. Cut pipe to ¾ inch on both sides of cooler for handles for externally turning the eggs.
    16. Install couplings on each end of pipe to keep pipe from slipping, back and forth and to use as handles when turning eggs.

    [​IMG]

    17. Screw box to handle inside

    [​IMG]





    18. take an egg carton that fits in box and cut holes in bottom
    egg carton with holes 100_0015-16.jpg

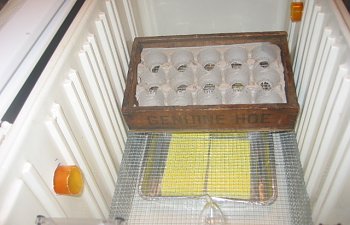

    19. place egg carton in box
    egg carton in box in cooler_1100_0017-14.jpg
    View attachment 1475269
    [URL][URL]https://www.backyardchickens.com/coops/images/gb/gb-incubator_files/100_0015-16.jpg[/URL][/URL] [URL][URL]https://www.backyardchickens.com/coops/images/gb/gb-incubator_files/100_0017-14.jpg[/URL][/URL]



    20. cut spacers in tubing (or use nuts for spacers) to keep PC fan and thermostat away from wall

    21. Screw PC fan to wall

    [​IMG]

    22. Wire PC fan, light, and thermostat

    PLUG/LIGHT/THERMOSTAT:
    *from the plug take the neutral (ribbed) wire to #1 screw on the thermostat
    * run a short wire from #2 srew on thermostat to the silver screw on the light
    * The other plug wire goes to the gold screw on the light.
    PC FAN:
    *cut the end of a 12volt transformer off, wire to the black and red wire on PC fan, disregaurd the yellow wire.
    (if you plug it in and the fan doesnt turn then switch the wires around)

    23. Install thermostat using spacers and screws to wall
    24. Install light

    [URL][URL]https://www.backyardchickens.com/coops/images/gb/gb-incubator_files/100_0023-4.jpg[/URL][/URL]

    25. Cut the bottom off 2 pill bottles (with lids) and slide into holes for air vents
    (these work great so you can just unscrew the lids if you need to).
    a grinder was used to cut the bottoms of the pill bottles off





    26. place probe from thermometer/hydrometer inside wiggler toy
    27. sit wiggler toy on egg holder
    28. put 2nd thermometer on wire
    29. fill pan with water
    30. adjust thermostat

    [​IMG]
    31. fill 4-5 baby food jars with warm water put on lids and place on wire
    32. plug in, close lid
    now lets see what happens next........

    So far in the Gopher-Bator we have hatched (and they have lived) 9 chicks... (there where some duds in this first batch)[​IMG][​IMG]
    we have 11 in it now and hope this will be our best hatch ever!!!
    updated-12/4/08
